Drivers · Power

Standard Driver Range

The everyday CV and CC driver catalogue — linear-style supplies from 10 to 360 W across 12, 24 and 48 V.

Power12–200 W

Output voltage12 / 16 / 18 / 24 / 40 V DC

Input voltage180–264 V AC

Operation modeCV / CC

DimmingNon-dimmable

IP ratingIP67

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Model	Power	Output voltage	Rated current	Input voltage	Type	Dimming	IP rating	Dimensions	Certifications	Protections
ENC-12-300	12 W	40 V DC	300 A	200–250 V AC	CC	—	—	129 × 44 × 28 mm (5.08 × 1.73 × 1.1 in)	CB · CE · RoHS · SAA	Short-circuit · Over-temperature
EV-SNT-15-12	15 W	12 V DC	1.25 A	180–240 V AC	CV	Non-dimmable	—	103 × 35.5 × 16 mm (4.06 × 1.4 × 0.63 in)	CE · SAA · TÜV	Short-circuit · Open-circuit · Overload · Over-temperature
EV-SNT-15-24	15 W	24 V DC	0.625 A	180–240 V AC	CV	Non-dimmable	—	103 × 35.5 × 16 mm (4.06 × 1.4 × 0.63 in)	CE · SAA · TÜV	Short-circuit · Open-circuit · Overload · Over-temperature
ENC-16-700	16 W	16 V DC	700 A	200–250 V AC	CC	—	—	129 × 44 × 28 mm (5.08 × 1.73 × 1.1 in)	CB · CE · RoHS · SAA	Short-circuit · Over-temperature
ENC-18-500	18 W	18 V DC	500 A	200–250 V AC	CC	—	—	129 × 44 × 28 mm (5.08 × 1.73 × 1.1 in)	CB · CE · RoHS · SAA	Short-circuit · Over-temperature
EV-SNT-20-12	20 W	12 V DC	1.67 A	180–240 V AC	CV	Non-dimmable	—	103 × 35.5 × 16 mm (4.06 × 1.4 × 0.63 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage
EV-SNT-20-24	20 W	24 V DC	0.833 A	180–240 V AC	CV	Non-dimmable	—	103 × 35.5 × 16 mm (4.06 × 1.4 × 0.63 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage
EV-SNP-24-12	24 W	12 V DC	2 A	220–240 V AC	CV	Non-dimmable	IP67	110 × 40 × 29.5 mm (4.33 × 1.57 × 1.16 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNP-24-24	24 W	24 V DC	1 A	220–240 V AC	CV	Non-dimmable	IP67	110 × 40 × 29.5 mm (4.33 × 1.57 × 1.16 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNR-30-12	30 W	12 V DC	2.5 A	220–240 V AC	CV	Non-dimmable	—	123 × 44.6 × 19.2 mm (4.84 × 1.76 × 0.76 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-temperature
EV-SNR-30-24	30 W	24 V DC	1.25 A	220–240 V AC	CV	Non-dimmable	—	123 × 44.6 × 19.2 mm (4.84 × 1.76 × 0.76 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-temperature
S-EV-SNR-30-24	30 W	24 V DC	1.25 A	220–240 V AC	CV	Non-dimmable	—	123 × 44.6 × 19.2 mm (4.84 × 1.76 × 0.76 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-temperature
EV-SNP-35-12	35 W	12 V DC	29 A	220–240 V AC	CV	Non-dimmable	IP67	110 × 40 × 29.5 mm (4.33 × 1.57 × 1.16 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNP-35-24	35 W	24 V DC	1.45 A	220–240 V AC	CV	Non-dimmable	IP67	110 × 40 × 29.5 mm (4.33 × 1.57 × 1.16 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNL-60-12	60 W	12 V DC	0.5 A	198–264 V AC	CV	Non-dimmable	—	304.8 × 30 × 16.7 mm (12 × 1.18 × 0.66 in)	CE · SAA · TÜV	Short-circuit · Over-voltage · Over-temperature
EV-SNL-60-24	60 W	24 V DC	0.25 A	198–264 V AC	CV	Non-dimmable	—	304.8 × 30 × 16.7 mm (12 × 1.18 × 0.66 in)	CE · SAA · TÜV	Short-circuit · Over-voltage · Over-temperature
EV-SNP-60-12	60 W	12 V DC	5 A	220–240 V AC	CV	Non-dimmable	IP67	155 × 41.5 × 30 mm (6.1 × 1.63 × 1.18 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNP-60-24	60 W	24 V DC	2.5 A	220–240 V AC	CV	Non-dimmable	IP67	155 × 41.5 × 30 mm (6.1 × 1.63 × 1.18 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNR-60-12	60 W	12 V DC	6.25 A	198–264 V AC	CV	Non-dimmable	—	170 × 44.5 × 28.2 mm (6.69 × 1.75 × 1.11 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNR-60-24	60 W	24 V DC	3.125 A	198–264 V AC	CV	Non-dimmable	—	170 × 44.5 × 28.2 mm (6.69 × 1.75 × 1.11 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
S-EV-SNR-60-24	60 W	24 V DC	3.125 A	198–264 V AC	CV	Non-dimmable	—	170 × 44.5 × 28.2 mm (6.69 × 1.75 × 1.11 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNR-75-12	75 W	12 V DC	6.25 A	220–240 V AC	CV	Non-dimmable	—	170 × 44.5 × 28.2 mm (6.69 × 1.75 × 1.11 in)	CE · SAA · TÜV	Short-circuit · Open-circuit · Overload · Over-temperature
EV-SNR-75-24	75 W	24 V DC	3.12 A	220–240 V AC	CV	Non-dimmable	—	170 × 44.5 × 28.2 mm (6.69 × 1.75 × 1.11 in)	CE · SAA · TÜV	Short-circuit · Open-circuit · Overload · Over-temperature
EV-SNL-100-12	100 W	12 V DC	8.33 A	198–264 V AC	CV	Non-dimmable	—	304.8 × 30 × 18.2 mm (12 × 1.18 × 0.72 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNL-100-24	100 W	24 V DC	4.17 A	198–264 V AC	CV	Non-dimmable	—	304.8 × 30 × 18.2 mm (12 × 1.18 × 0.72 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature

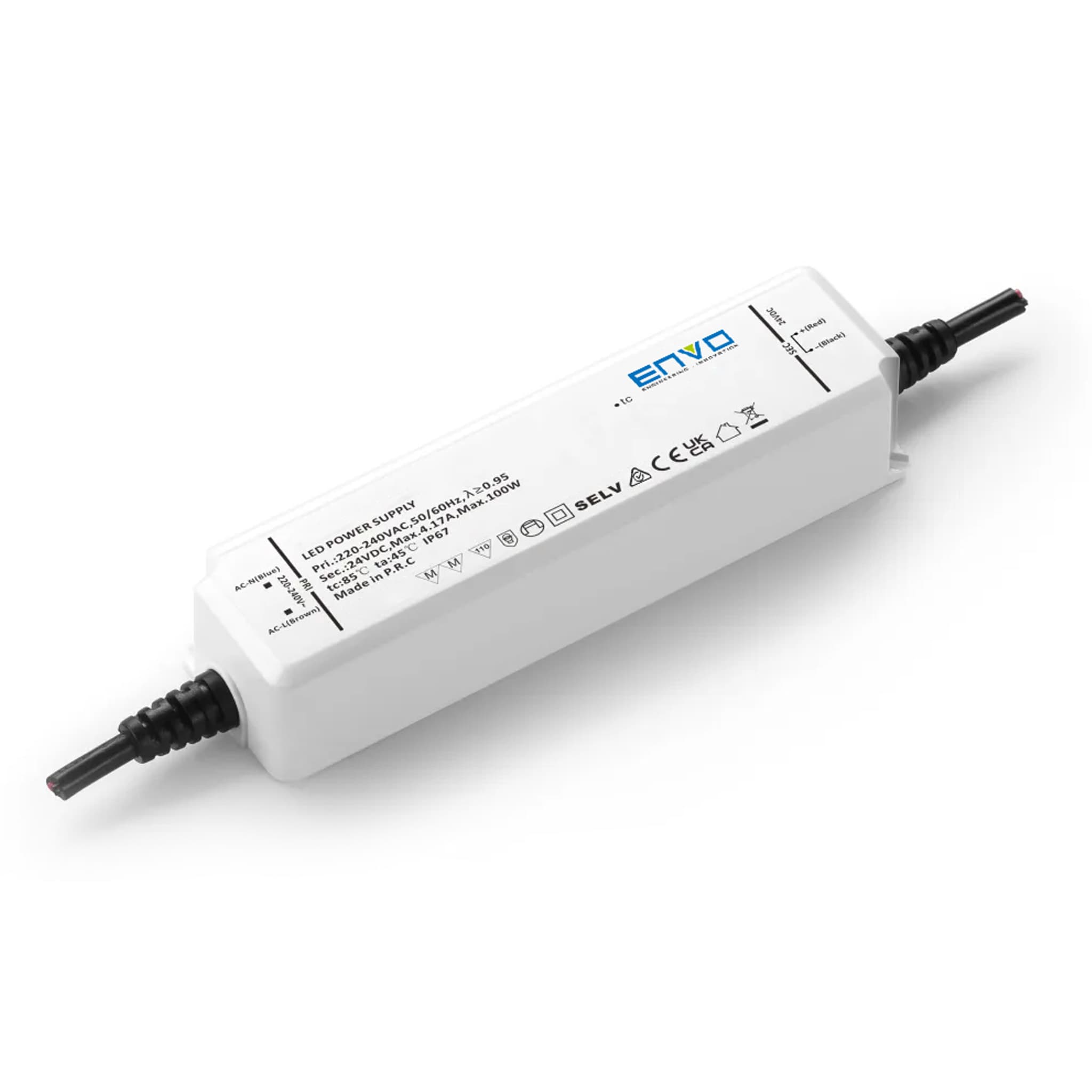

EV-SNP-100-12	100 W	12 V DC	8.3 A	220–240 V AC	CV	Non-dimmable	IP67	155.6 × 47.6 × 32.5 mm (6.13 × 1.87 × 1.28 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNP-100-24	100 W	24 V DC	4.17 A	220–240 V AC	CV	Non-dimmable	IP67	155.6 × 47.6 × 32.5 mm (6.13 × 1.87 × 1.28 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNL-150-12	150 W	12 V DC	11 A	198–264 V AC	CV	Non-dimmable	—	320.6 × 30 × 18.2 mm (12.62 × 1.18 × 0.72 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNL-150-24	150 W	24 V DC	8.33 A	198–264 V AC	CV	Non-dimmable	—	320.6 × 30 × 18.2 mm (12.62 × 1.18 × 0.72 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature
EV-SNL-200-24	200 W	24 V DC	8.33 A	198–264 V AC	CV	Non-dimmable	—	320.6 × 30 × 18.2 mm (12.62 × 1.18 × 0.72 in)	CE · SAA · TÜV	Short-circuit · Overload · Over-voltage · Over-temperature

Standard Driver Range
