EV-ZB9101SAC-HP
Control · Zigbee Smart

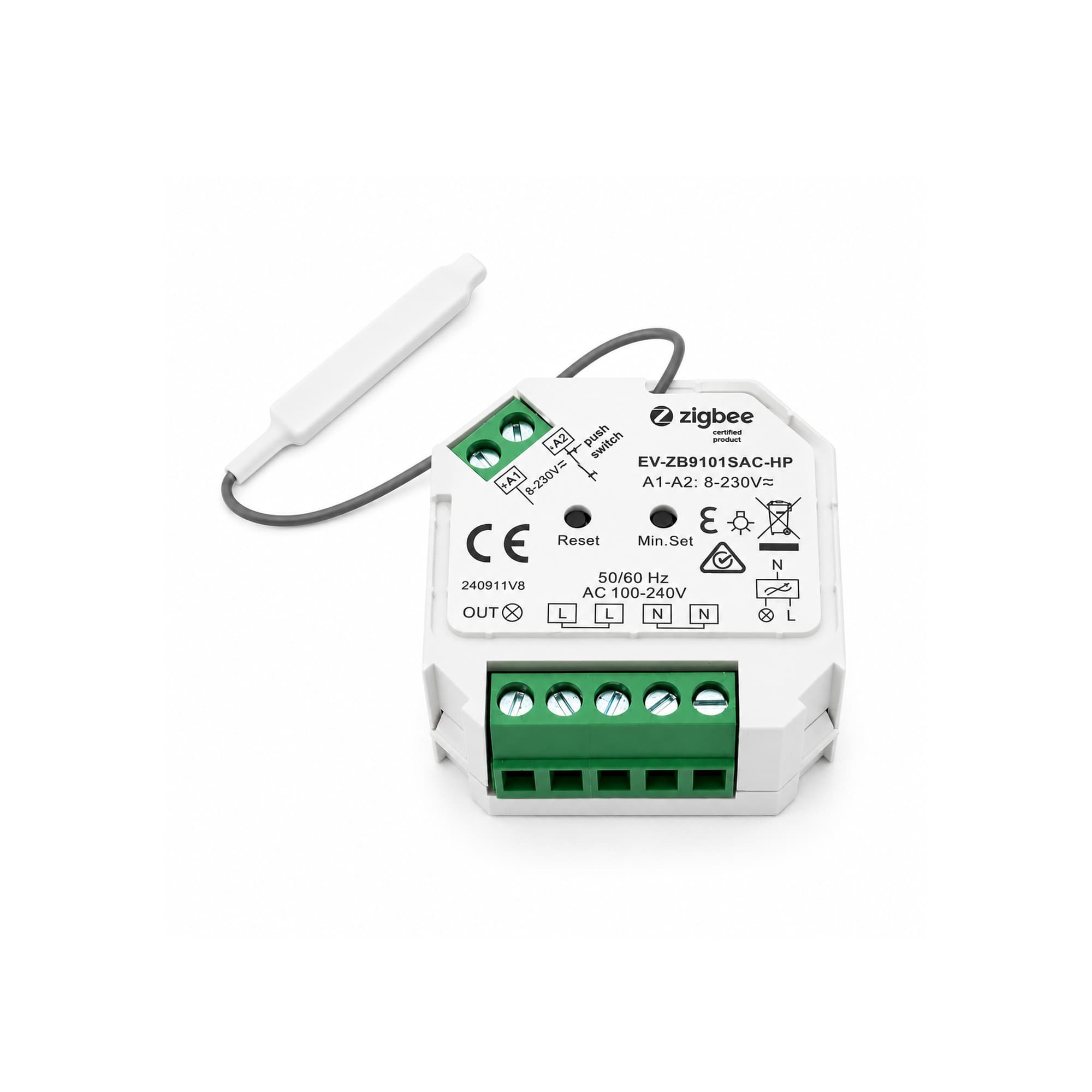

ZigBee AC Phase Dimmer

EV-ZB9101SAC-HP

Input voltage100–240 V AC
Power400 W
Dimensions45.5 × 45 × 20.3 mm(1.79 × 1.77 × 0.8 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-ZB9101SAC-HP.

Use the EV-ZB9101SAC-HP to bring smooth dimming control to your installation.

It is built for Zigbee lighting systems.

Backing that up: ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol, 100-240VAC Wide Input and Output Voltage, supports resistive loads and capacitive loads and 1 Channel Output, Up to 400W. It also offers input and Output with Screw Terminals, Safe and Reliable, both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge, enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver and ZigBee end device that supports Touchlink commissioning.

Installation notes: do not install with power applied to device; do not expose the device to moisture.

Where it works

Wireless control for lived-in lighting scenes.

EV-ZB9101SAC-HP application - Retail RGB colour zones

Retail RGB colour zones

PRISM shop lighting grouped into controllable colour areas · wall dimmer control

EV-ZB9101SAC-HP application - Restaurant evening dimming

Restaurant evening dimming

EMBER bar and signage lighting softened by scene control · wall dimmer control

EV-ZB9101SAC-HP application - Tunable white living space

Tunable white living space

12B home lighting shifting from task white to warm evening · wall dimmer control

EV-ZB9101SAC-HP application - Synchronized multi-zone lighting

Synchronized multi-zone lighting

SYNC feature wall and ceiling lines changing together · wall dimmer control
