EV-SNL-150-24
Drivers · Standard

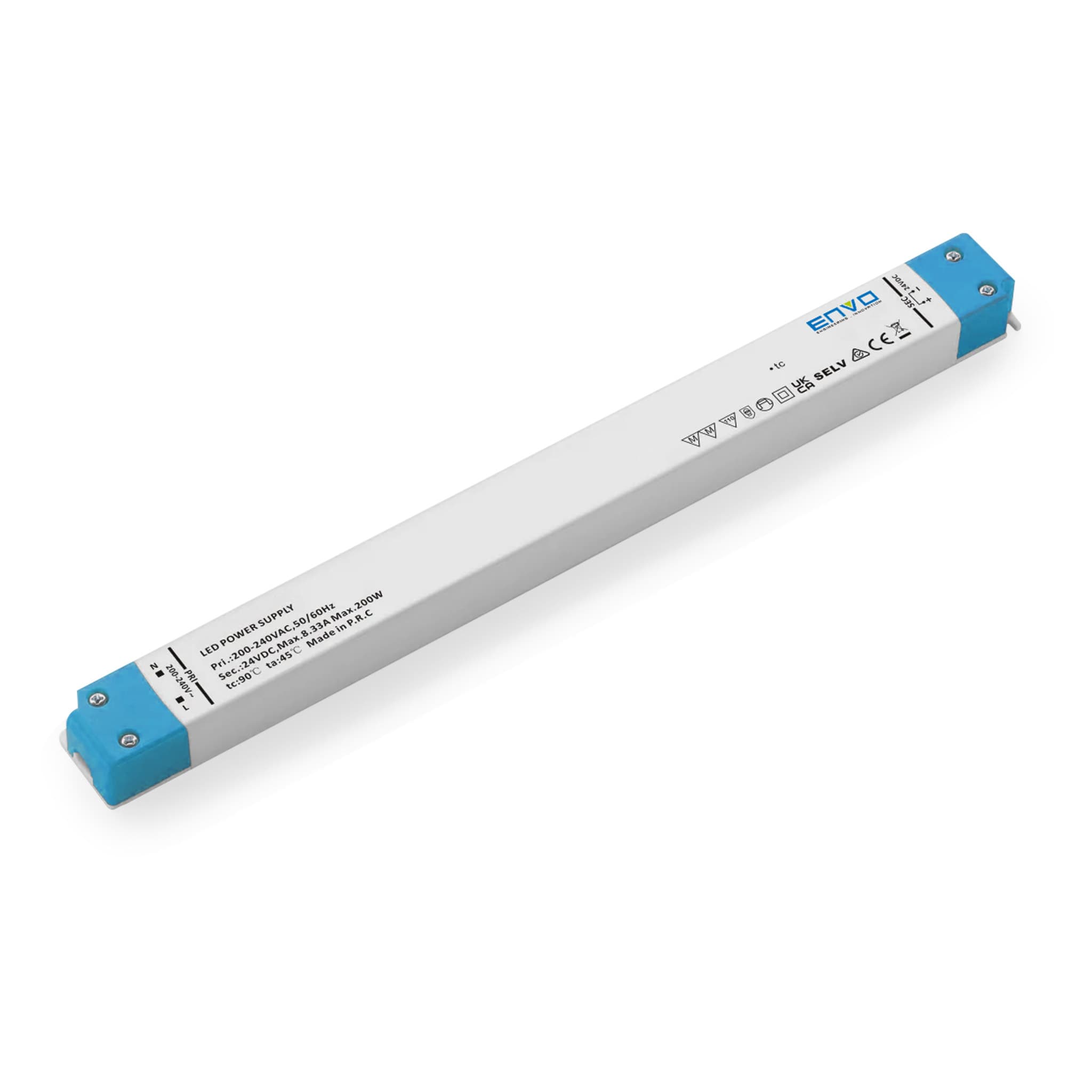

Linear Type LED Driver 150W 24V 8.33A

EV-SNL-150-24

Power150 W
Output voltage24 V DC
Input voltage198–264 V AC
Operation modeConstant voltage
DimmingNon-dimmable
Rated current8.33 A
Dimensions320.6 × 30 × 18.2 mm(12.62 × 1.18 × 0.72 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-SNL-150-24.

The EV-SNL-150-24 is a 150 W constant-voltage LED driver with a 24 V DC output.

Running on 24 V constant voltage, it is built for indoor installations and signage modules and LED strip.

Backing that up: AC input（198-264VAC), built-in active PFC function, suitable for dry indoor environment and adopt plastic case and internal glue filling. It also offers compliance to worldwide safety.

Protections: Short circuit / Over voltage / Over temperature/Over load.

Where it works

Built for the job.

Indoor installations

compact indoor enclosure

Signage modules & LED strip

24 V constant voltage
