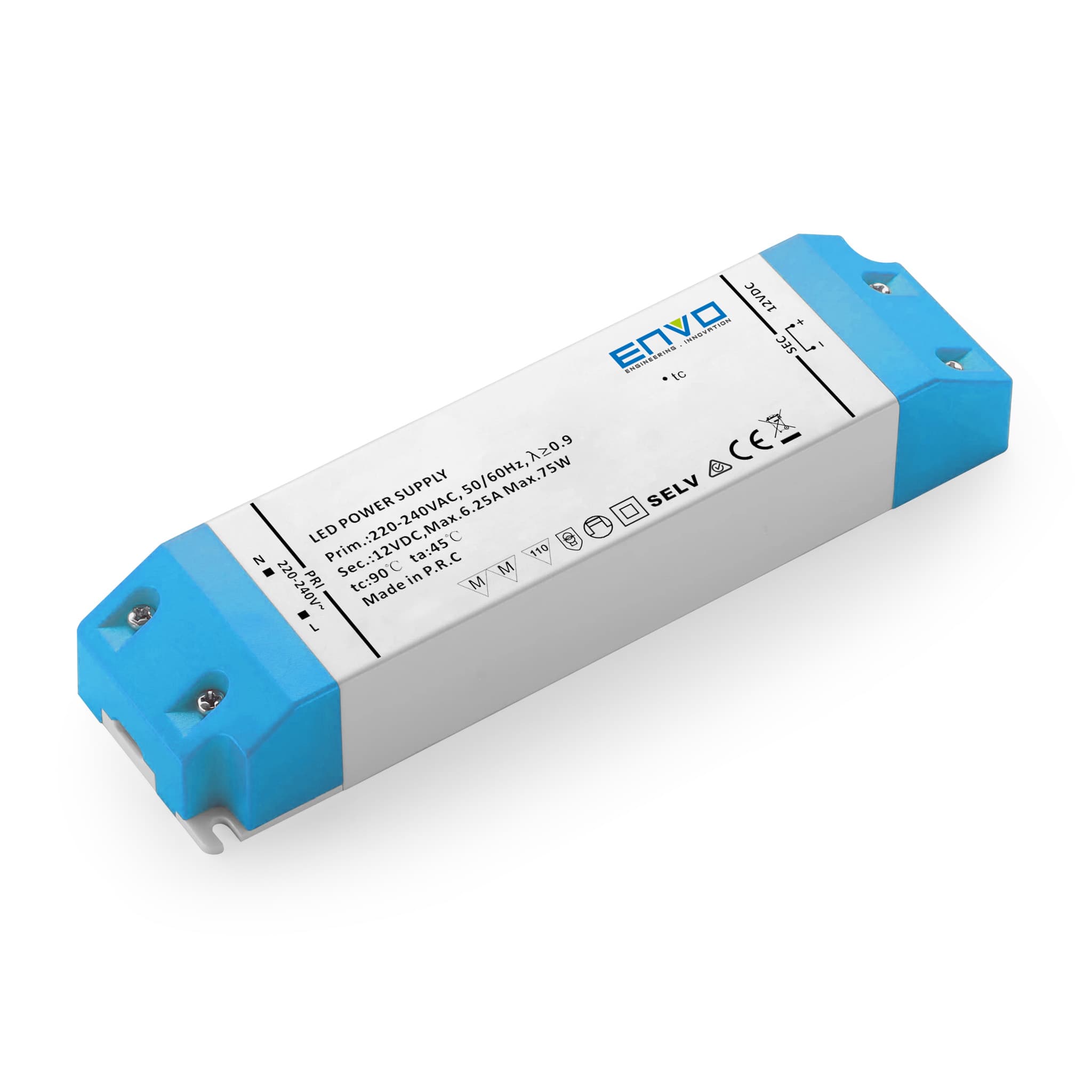

LED Driver 75W 12V 6.25A

Name: ENVO EV-SNR-75-12 LED Driver 75W 12V 6.25A
Brand: ENVO
SKU: EV-SNR-75-12

EV-SNR-75-12

Power75 W

Output voltage12 V DC

Input voltage220–240 V AC

Operation modeConstant voltage

DimmingNon-dimmable

Rated current6.25 A

Dimensions170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Model code: EV-SNR-75-12
Power: 75 W
Output voltage: 12 V DC
Rated current: 6.25 A
Input voltage: 220–240 V AC
Type: CV
Dimming: Non-dimmable
Dimensions: 170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)
Certifications: CE · SAA · TÜV
Protections: Short-circuit · Open-circuit · Overload · Over-temperature
Warranty: 5 years

Standard

All models in this series

30 models · 12–200 W · 12 / 16 / 18 / 24 / 40 V DC output

Model	Power	Output	Input voltage	Type · IP	Dimming	Dimensions
EV-SNR-75-12Current	75 W	12 V DC6.25 A	220–240 V AC	CV	Non-dimmable	170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)
ENC-12-300	12 W	40 V DC0.3 A	200–250 V AC	CC	—	129 × 44 × 28 mm(5.08 × 1.73 × 1.1 in)
EV-SNT-15-12	15 W	12 V DC1.25 A	180–240 V AC	CV	Non-dimmable	103 × 35.5 × 16 mm(4.06 × 1.4 × 0.63 in)
EV-SNT-15-24	15 W	24 V DC0.625 A	180–240 V AC	CV	Non-dimmable	103 × 35.5 × 16 mm(4.06 × 1.4 × 0.63 in)
ENC-16-700	16 W	16 V DC0.7 A	200–250 V AC	CC	—	129 × 44 × 28 mm(5.08 × 1.73 × 1.1 in)
ENC-18-500	18 W	18 V DC0.5 A	200–250 V AC	CC	—	129 × 44 × 28 mm(5.08 × 1.73 × 1.1 in)
EV-SNT-20-12	20 W	12 V DC1.67 A	180–240 V AC	CV	Non-dimmable	103 × 35.5 × 16 mm(4.06 × 1.4 × 0.63 in)
EV-SNT-20-24	20 W	24 V DC0.833 A	180–240 V AC	CV	Non-dimmable	103 × 35.5 × 16 mm(4.06 × 1.4 × 0.63 in)
EV-SNP-24-12	24 W	12 V DC2 A	220–240 V AC	CV · IP67	Non-dimmable	110 × 40 × 29.5 mm(4.33 × 1.57 × 1.16 in)
EV-SNP-24-24	24 W	24 V DC1 A	220–240 V AC	CV · IP67	Non-dimmable	110 × 40 × 29.5 mm(4.33 × 1.57 × 1.16 in)
EV-SNR-30-12	30 W	12 V DC2.5 A	220–240 V AC	CV	Non-dimmable	123 × 44.6 × 19.2 mm(4.84 × 1.76 × 0.76 in)
EV-SNR-30-24	30 W	24 V DC1.25 A	220–240 V AC	CV	Non-dimmable	123 × 44.6 × 19.2 mm(4.84 × 1.76 × 0.76 in)
S-EV-SNR-30-24	30 W	24 V DC1.25 A	220–240 V AC	CV	Non-dimmable	123 × 44.6 × 19.2 mm(4.84 × 1.76 × 0.76 in)
EV-SNP-35-12	35 W	12 V DC2.9 A	220–240 V AC	CV · IP67	Non-dimmable	110 × 40 × 29.5 mm(4.33 × 1.57 × 1.16 in)
EV-SNP-35-24	35 W	24 V DC1.45 A	220–240 V AC	CV · IP67	Non-dimmable	110 × 40 × 29.5 mm(4.33 × 1.57 × 1.16 in)
EV-SNL-60-12	60 W	12 V DC5 A	198–264 V AC	CV	Non-dimmable	304.8 × 30 × 16.7 mm(12 × 1.18 × 0.66 in)
EV-SNL-60-24	60 W	24 V DC2.5 A	198–264 V AC	CV	Non-dimmable	304.8 × 30 × 16.7 mm(12 × 1.18 × 0.66 in)
EV-SNP-60-12	60 W	12 V DC5 A	220–240 V AC	CV · IP67	Non-dimmable	155 × 41.5 × 30 mm(6.1 × 1.63 × 1.18 in)
EV-SNP-60-24	60 W	24 V DC2.5 A	220–240 V AC	CV · IP67	Non-dimmable	155 × 41.5 × 30 mm(6.1 × 1.63 × 1.18 in)
EV-SNR-60-12	60 W	12 V DC5 A	198–264 V AC	CV	Non-dimmable	170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)
EV-SNR-60-24	60 W	24 V DC2.5 A	198–264 V AC	CV	Non-dimmable	170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)
S-EV-SNR-60-24	60 W	24 V DC2.5 A	198–264 V AC	CV	Non-dimmable	170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)
EV-SNR-75-24	75 W	24 V DC3.12 A	220–240 V AC	CV	Non-dimmable	170 × 44.5 × 28.2 mm(6.69 × 1.75 × 1.11 in)

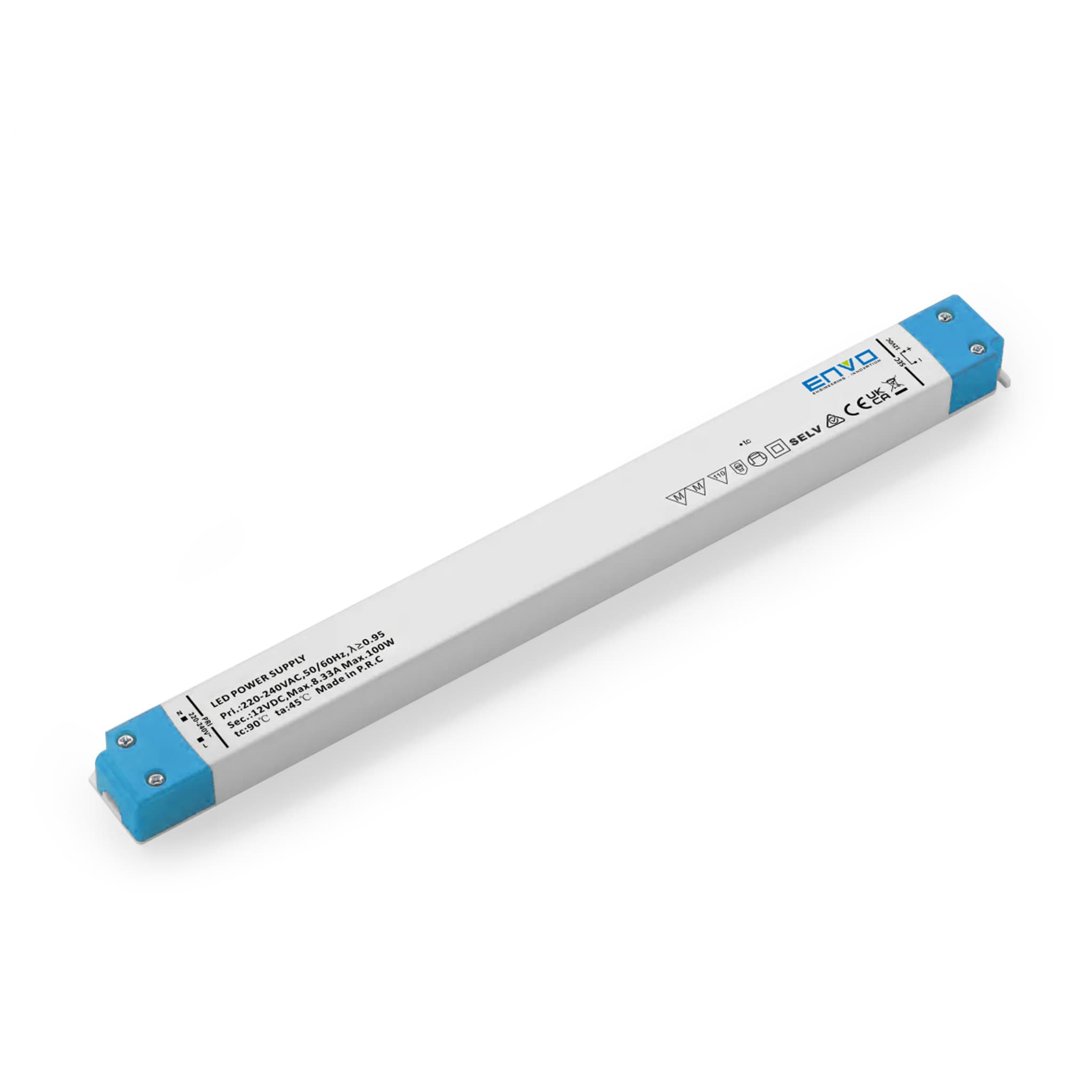

EV-SNL-100-12	100 W	12 V DC8.33 A	198–264 V AC	CV	Non-dimmable	304.8 × 30 × 18.2 mm(12 × 1.18 × 0.72 in)
EV-SNL-100-24	100 W	24 V DC4.17 A	198–264 V AC	CV	Non-dimmable	304.8 × 30 × 18.2 mm(12 × 1.18 × 0.72 in)
EV-SNP-100-12	100 W	12 V DC8.3 A	220–240 V AC	CV · IP67	Non-dimmable	155.6 × 47.6 × 32.5 mm(6.13 × 1.87 × 1.28 in)
EV-SNP-100-24	100 W	24 V DC4.17 A	220–240 V AC	CV · IP67	Non-dimmable	155.6 × 47.6 × 32.5 mm(6.13 × 1.87 × 1.28 in)
EV-SNL-150-12	150 W	12 V DC11 A	198–264 V AC	CV	Non-dimmable	320.6 × 30 × 18.2 mm(12.62 × 1.18 × 0.72 in)
EV-SNL-150-24	150 W	24 V DC6.25 A	198–264 V AC	CV	Non-dimmable	320.6 × 30 × 18.2 mm(12.62 × 1.18 × 0.72 in)
EV-SNL-200-24	200 W	24 V DC8.33 A	198–264 V AC	CV	Non-dimmable	320.6 × 30 × 18.2 mm(12.62 × 1.18 × 0.72 in)
