Drivers · Standard

LED Driver 100W 24V Waterproof IP67 4.17A

EV-SNP-100-24

Power100 W

Output voltage24 V DC

Input voltage220–240 V AC

Operation modeConstant voltage

DimmingNon-dimmable

IP ratingIP67

Rated current4.17 A

Dimensions155.6 × 47.6 × 32.5 mm(6.13 × 1.87 × 1.28 in)

Sold through authorised distributors

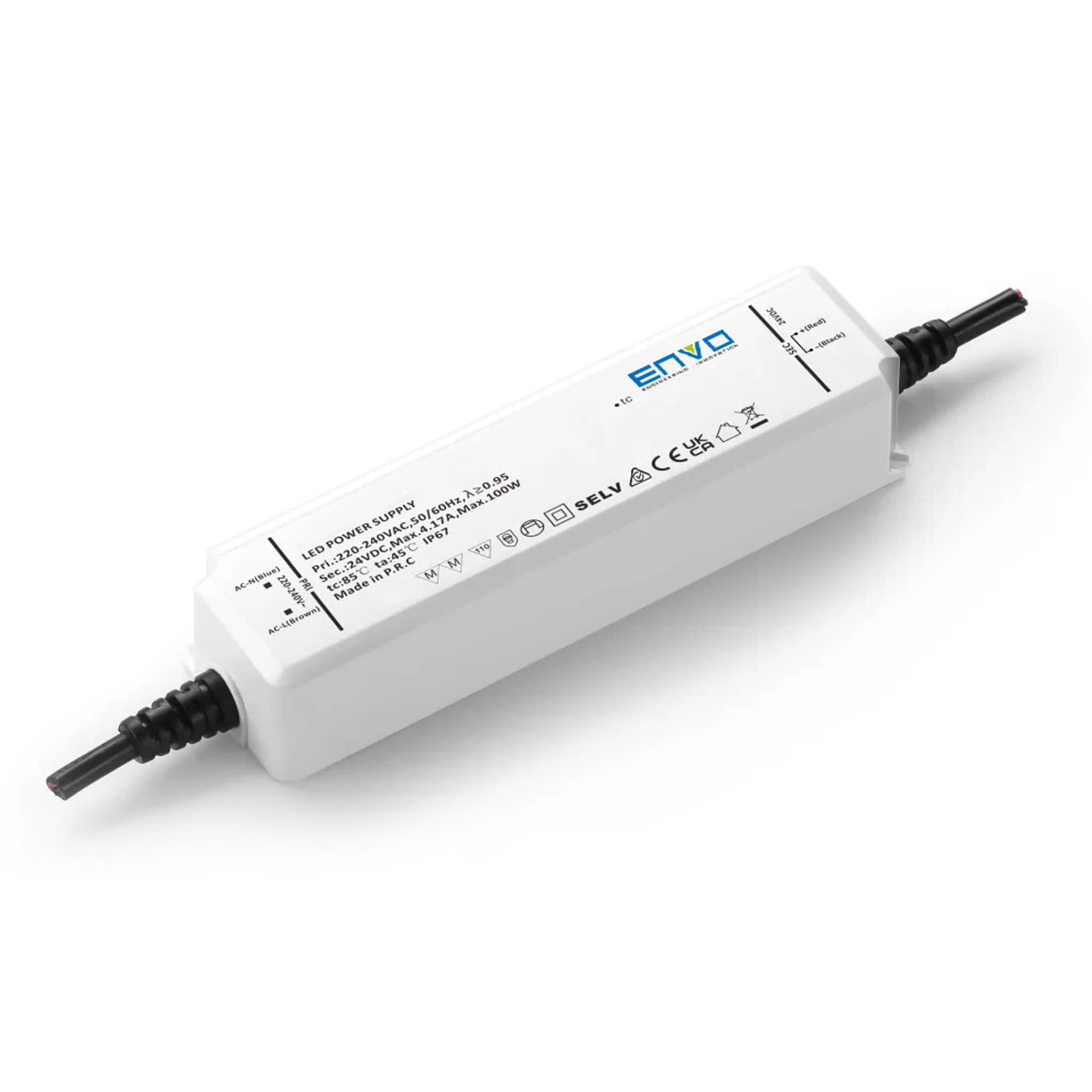

About the EV-SNP-100-24.

The EV-SNP-100-24 is a 100 W constant-voltage LED driver with a 24 V DC output, sealed to IP67.

With its IP67-sealed build, it is built for outdoor installations and signage modules and LED strip.

Backing that up: AC input（220-240VAC), built-in active PFC function, using plastic shell. internal potting and compliance to worldwide safety.

Protections: Short circuit / Over voltage / Over temperature/Over load.

Where it works

IP67 sealed enclosure

24 V constant voltage
