OptiLume LED Module Backlit - Double LED
EV-BLOL02LBY
Power0.66 W
Input voltage24 V DC
Max series50
IP ratingIP67
DimensionsL56 × W10.6 × H10.6 mm(2.2 × 0.42 × 0.42 in)
Warranty7 years
Sold through authorised distributors
OptiLume
All models in this series
2 models · 0.66–1.32 W
| Model | Power | LED beads | Light output | Dimensions | Spec sheet |
|---|---|---|---|---|---|
 EV-BLOL02LBYCurrent | 0.66 W | 2 | ~ 100 lm | 56 × 10.6 × 10.6 mm(2.2 × 0.42 × 0.42 in) | |
 EV-BLOL04LBY | 1.32 W | 4 | ~ 200 lm | 108 × 10.6 × 10.6 mm(4.25 × 0.42 × 0.42 in) |
Where it works
Long runs for larger sign faces.

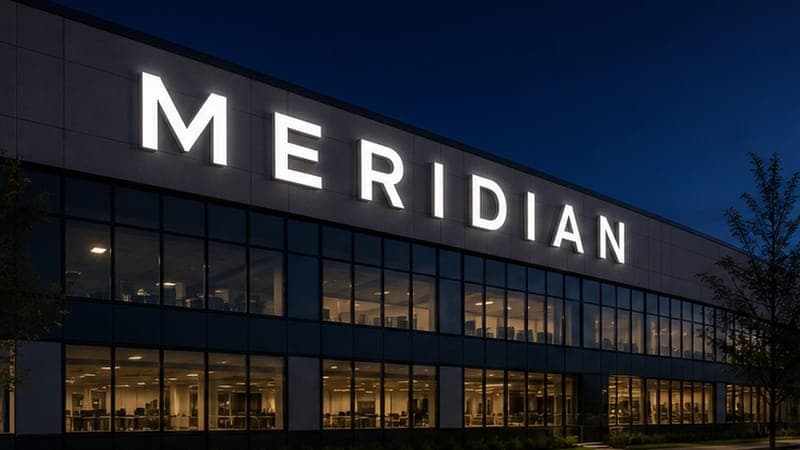

Long storefront letter run
MERIDIAN wide fascia letters with fewer feed points · double natural white module

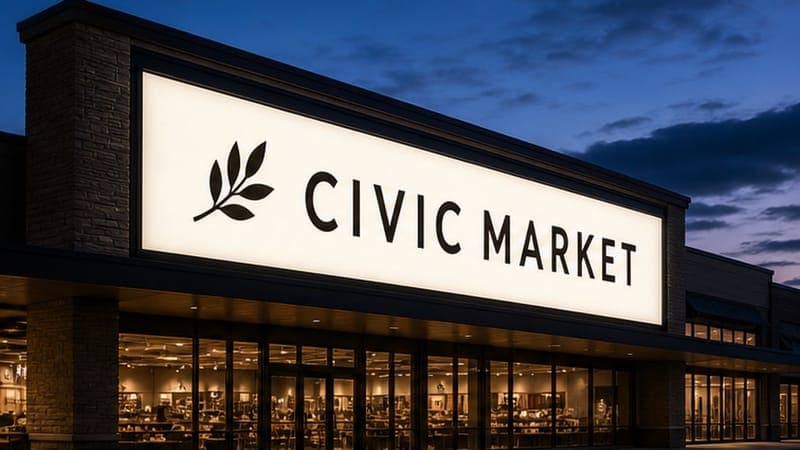

Large supermarket cabinet
CIVIC MARKET lightbox face with broad even coverage · double natural white module

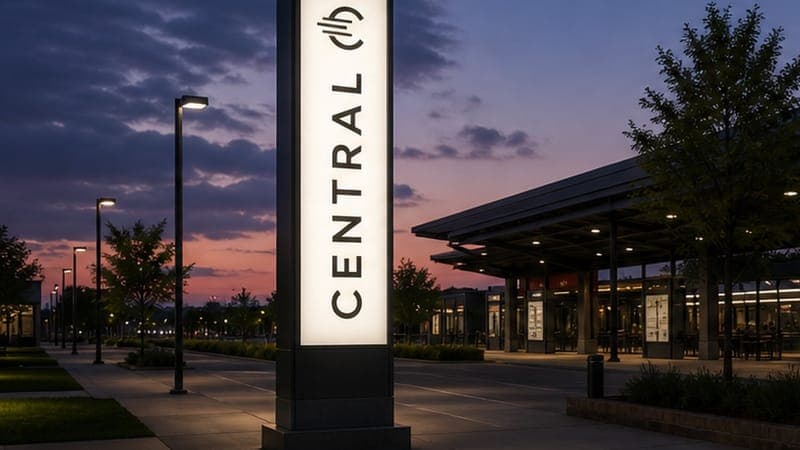

Freestanding pylon sign
CENTRAL roadside cabinet for efficient long runs · double natural white module

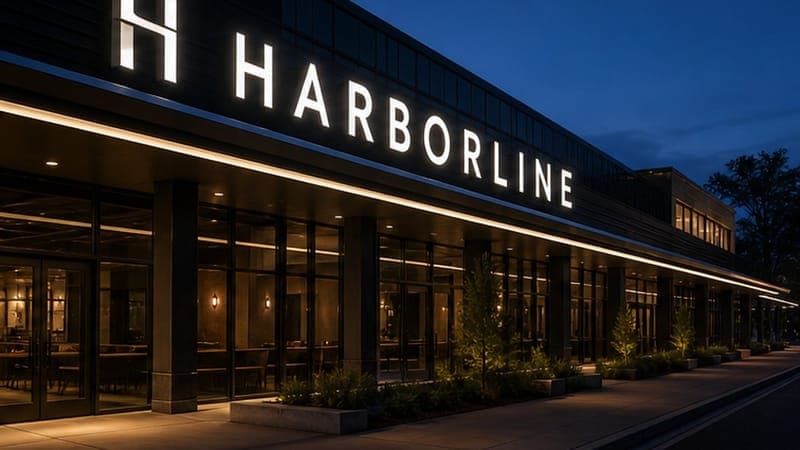

Architectural facade lettering
HARBORLINE long exterior sign integrated into cladding · double natural white module
