EV-SL-150-24 product image — EV-SL-150-24

Drivers · SL

Linear Type LED Driver 150W 24V 6.25A

EV-SL-150-24

Power150 W

Output voltage24 V DC

Input voltage100–240 V AC

Operation modeConstant voltage

IP ratingIP20

Rated current6.25 A

Dimensions322.6 × 21.5 × 30.1 mm(12.7 × 0.85 × 1.19 in)

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

About the EV-SL-150-24.

The EV-SL-150-24 is a 150 W constant-voltage LED driver with a 24 V DC output.

Running on 24 V constant voltage, it is built for indoor installations and signage modules and LED strip.

Backing that up: efficiency up to 92%, protection:Open circuit/Over load/Short circuit/Over temperature/Over voltage/Auto recovery/Latch off, flat and slim design and compliance to ERP directive.

Range: 100-240Vac.

Where it works

Slim power for clean LED installs.

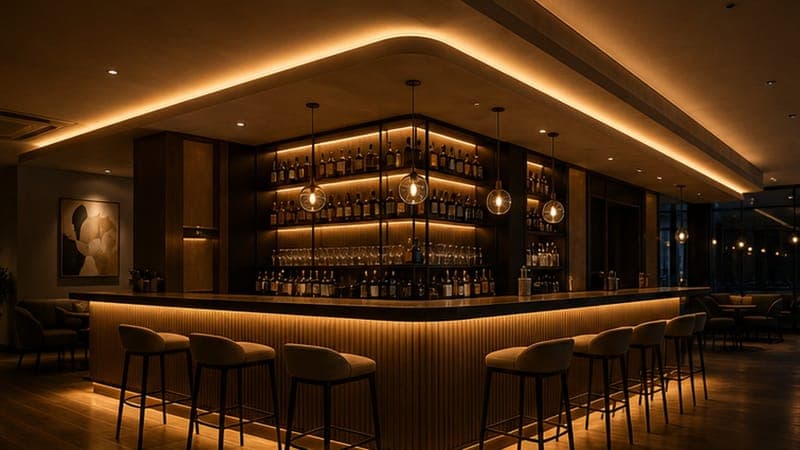

Bar cove LED strip

warm hidden strip light running inside a slim ceiling channel · 150 W · 24 V

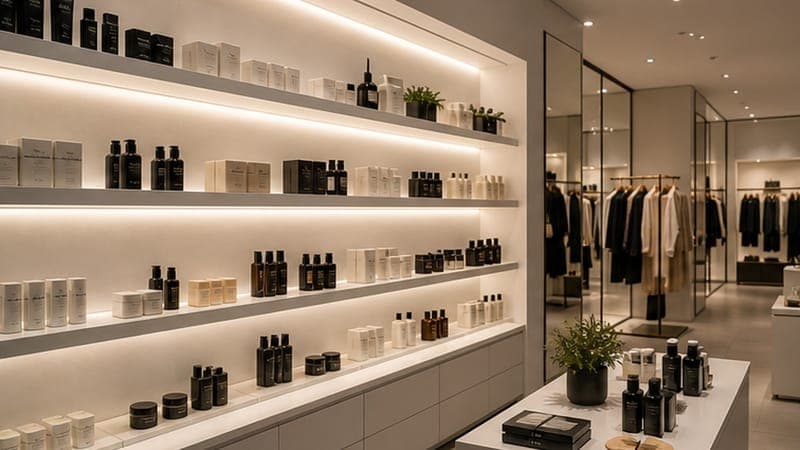

Retail shelf LED strips

neutral strips under shelves lighting packaged products · 150 W · 24 V

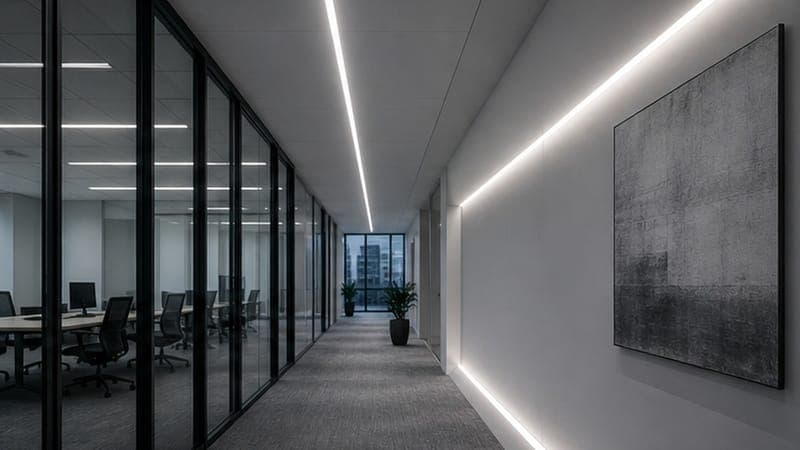

Office linear extrusion

cool white linear runs in a clean workplace ceiling · 150 W · 24 V

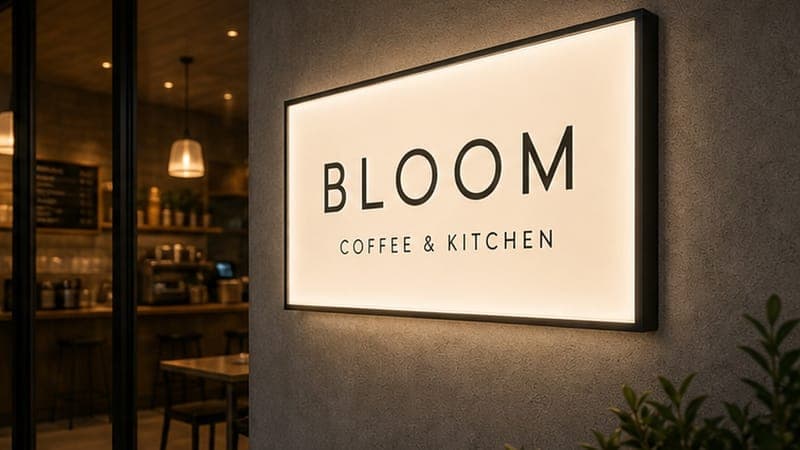

Slim storefront lightbox

BLOOM narrow cabinet sign powered from a tight channel · 150 W · 24 V
