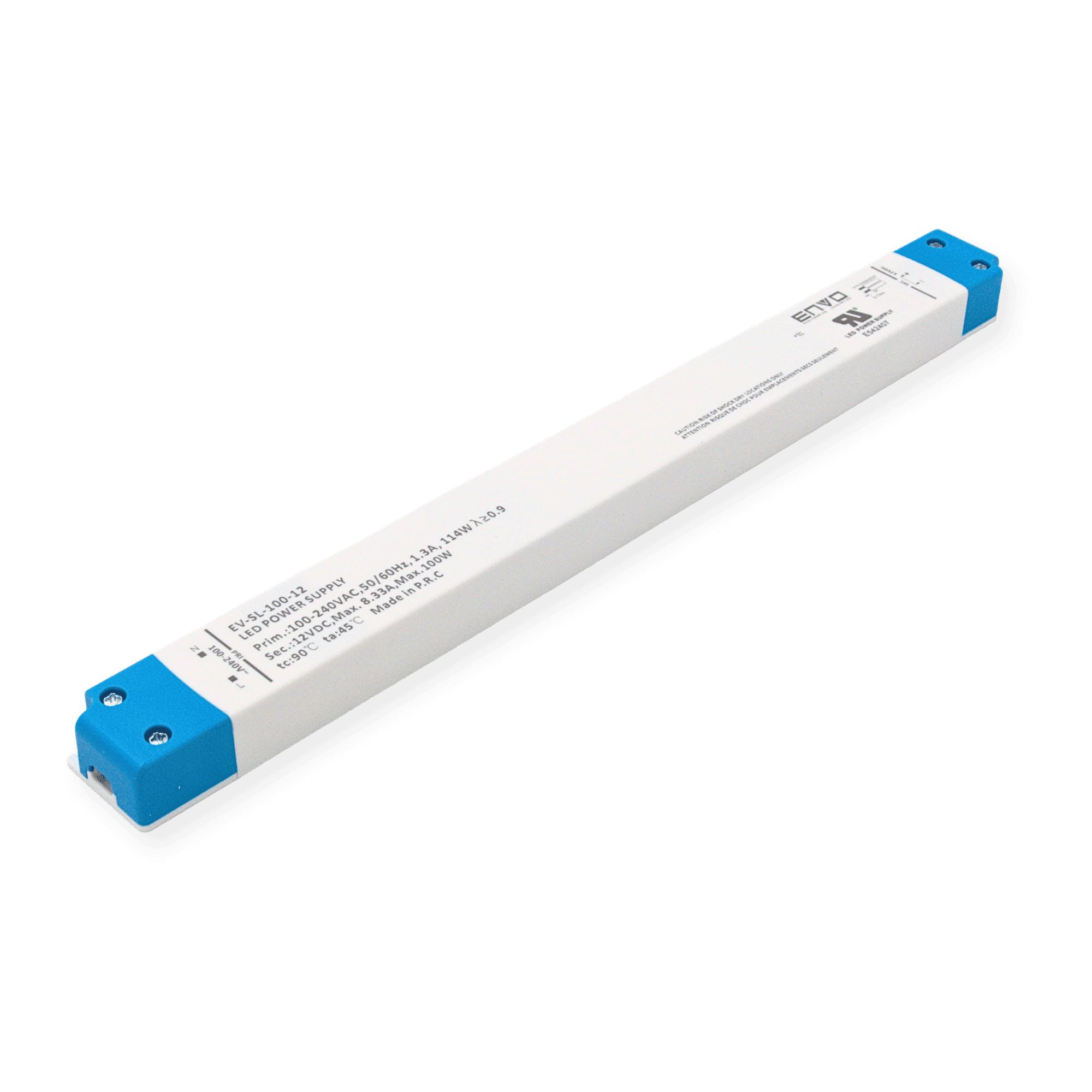

EV-SL-100-12 product image — EV-SL-100-12

Drivers · SL

Linear Type LED Driver 100W 12V 8.33A

EV-SL-100-12

Power100 W

Output voltage12 V DC

Input voltage100–240 V AC

Operation modeConstant voltage

IP ratingIP20

Rated current8.33 A

Dimensions320.6 × 18.2 × 30 mm(12.62 × 0.72 × 1.18 in)

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

About the EV-SL-100-12.

The EV-SL-100-12 is a 100 W constant-voltage LED driver with a 12 V DC output.

Running on 12 V constant voltage, it is built for indoor installations and signage modules and LED strip.

Backing that up: efficiency up to 89%, protection:Open circuit/Over load/Short circuit/Over temperature/Over voltage/Auto recovery/Latch off, flat and slim design and meet Class II request.

Range: 100-240Vac.

Where it works

Slim power for clean LED installs.

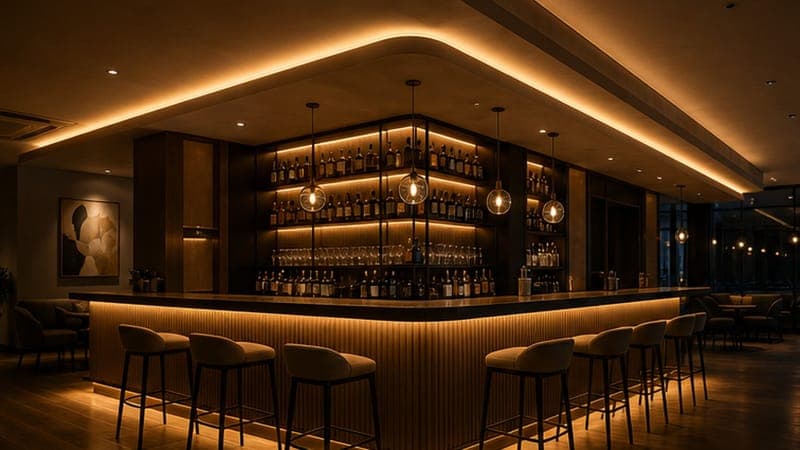

Bar cove LED strip

warm hidden strip light running inside a slim ceiling channel · 100 W · 12 V

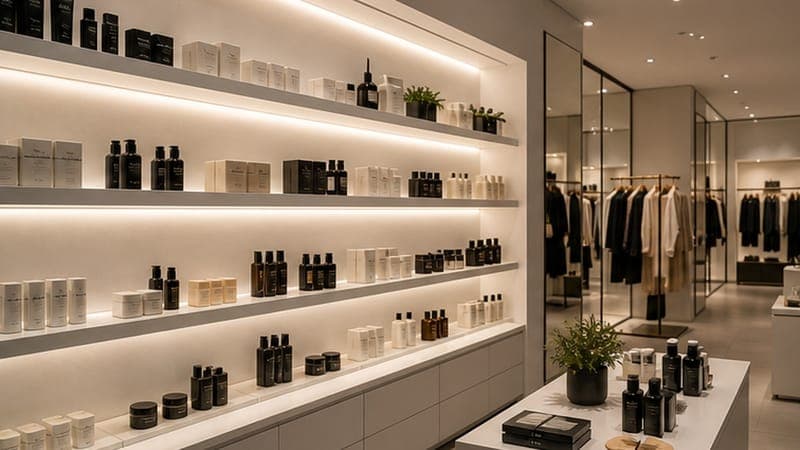

Retail shelf LED strips

neutral strips under shelves lighting packaged products · 100 W · 12 V

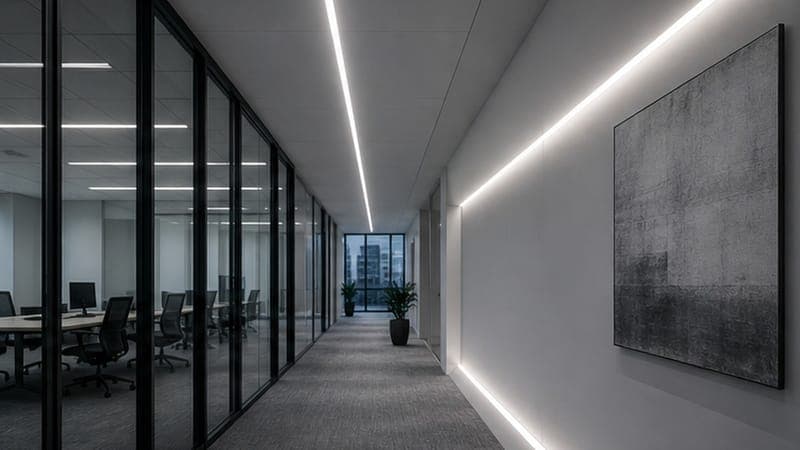

Office linear extrusion

cool white linear runs in a clean workplace ceiling · 100 W · 12 V

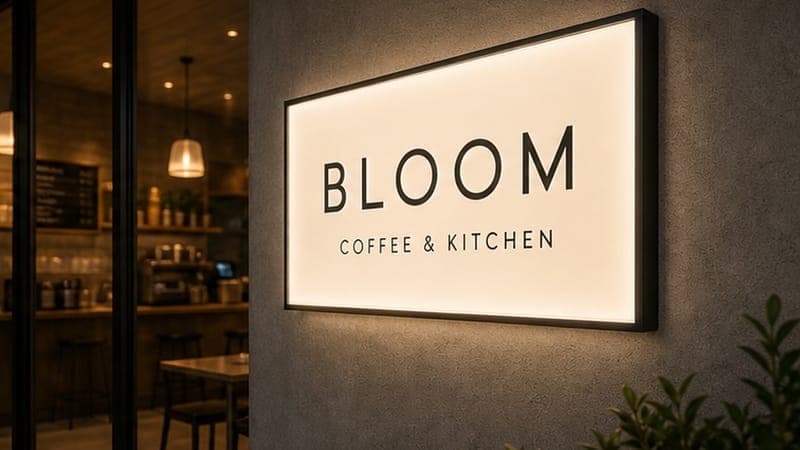

Slim storefront lightbox

BLOOM narrow cabinet sign powered from a tight channel · 100 W · 12 V
