Drivers · Power

SE Slim Indoor Driver

Ultra-thin indoor constant-voltage drivers for tight sign cabinets — 15–75 W at 12 or 24 V.

Power15–75 W

Output voltage12 / 24 V DC

Input voltage90–132 V AC

Operation modeConstant voltage

IP ratingIP20

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Model	Power	Output voltage	Rated current	Input voltage	Type	IP rating	Dimensions	Certifications	Protections	Spec sheet

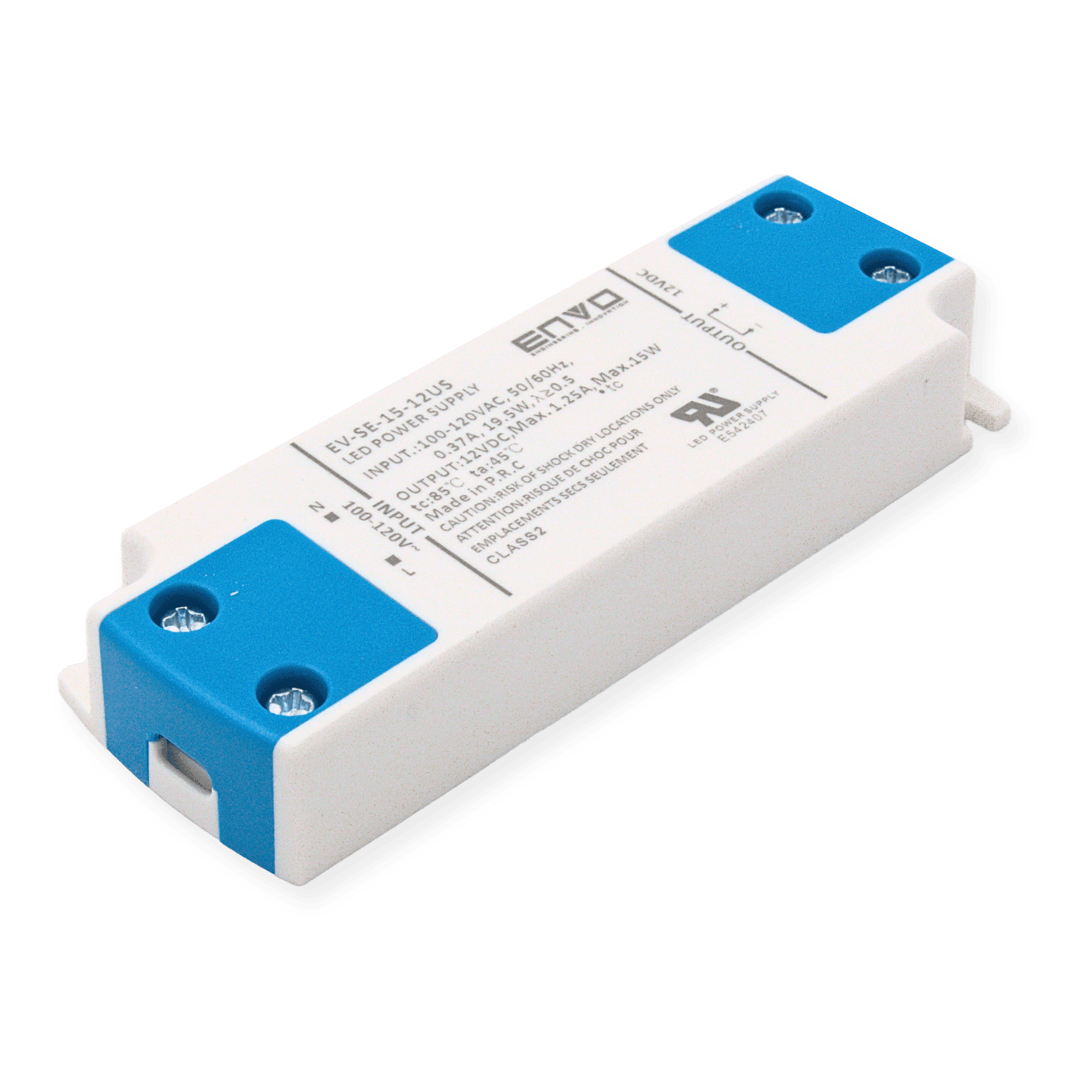

EV-SE-15-12US	15 W	12 V DC	1.25 A	90–132 V AC	CV	IP20	103 × 16 × 35.5 mm (4.06 × 0.63 × 1.4 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-15-24US	15 W	24 V DC	0.625 A	90–132 V AC	CV	IP20	103 × 16 × 35.5 mm (4.06 × 0.63 × 1.4 in)	cUL · UL	Short-circuit · Overload · Over-voltage

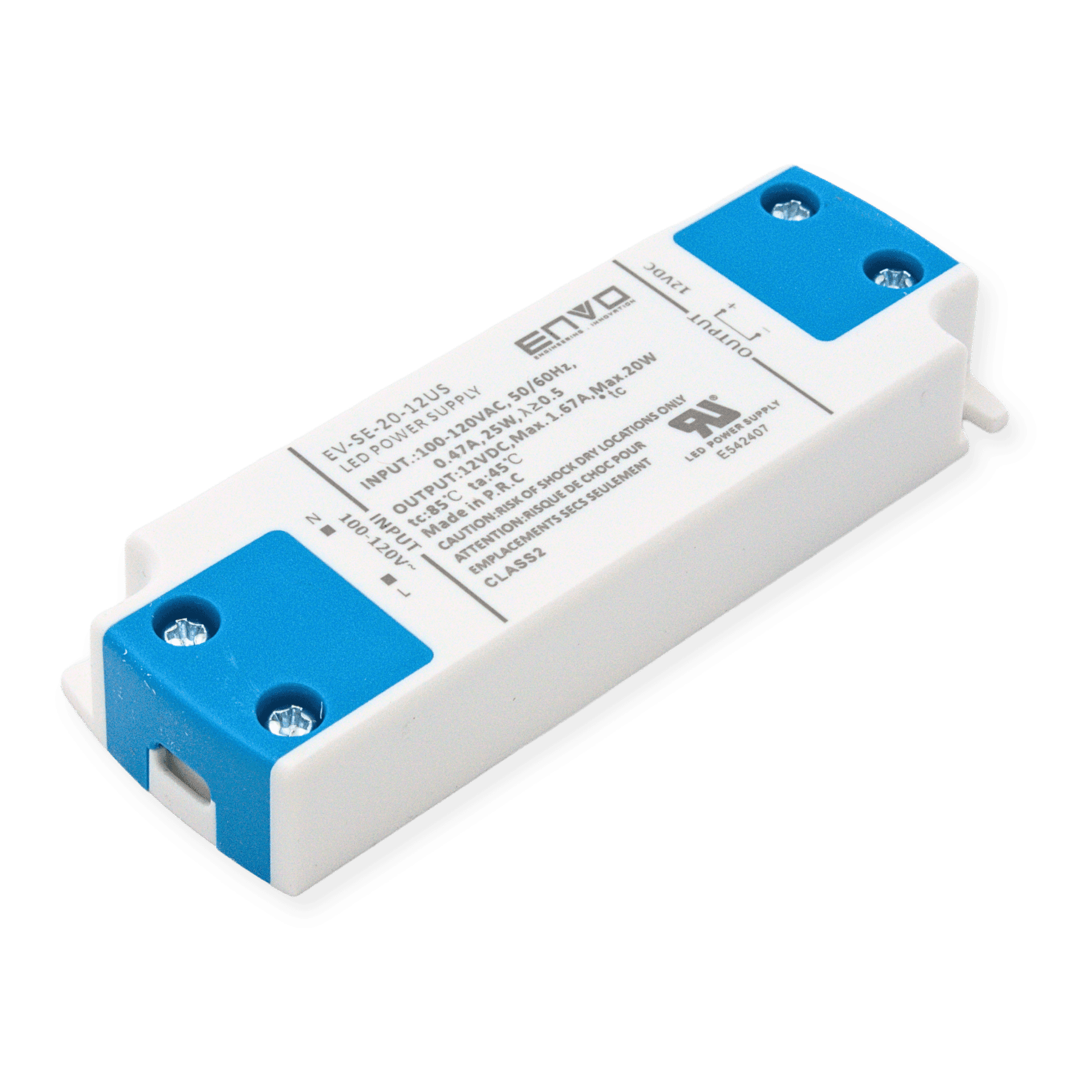

EV-SE-20-12US	20 W	12 V DC	1.67 A	100–120 V AC	CV	IP20	103 × 16 × 35.5 mm (4.06 × 0.63 × 1.4 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-20-24US	20 W	24 V DC	0.833 A	100–120 V AC	CV	IP20	103 × 16 × 35.5 mm (4.06 × 0.63 × 1.4 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-30-12US	30 W	12 V DC	2.5 A	100–120 V AC	CV	IP20	156 × 17 × 50 mm (6.14 × 0.67 × 1.97 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-30-24US	30 W	24 V DC	1.25 A	100–120 V AC	CV	IP20	156 × 17 × 50 mm (6.14 × 0.67 × 1.97 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-50-12US	50 W	12 V DC	4.16 A	100–120 V AC	CV	IP20	156 × 17 × 50 mm (6.14 × 0.67 × 1.97 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-50-24US	50 W	24 V DC	2.08 A	100–120 V AC	CV	IP20	156 × 17 × 50 mm (6.14 × 0.67 × 1.97 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-75-12US	75 W	12 V DC	6.25 A	100–120 V AC	CV	IP20	177 × 17.2 × 56 mm (6.97 × 0.68 × 2.2 in)	cUL · UL	Short-circuit · Overload · Over-voltage
EV-SE-75-24US	75 W	24 V DC	3.125 A	100–120 V AC	CV	IP20	177 × 17.2 × 56 mm (6.97 × 0.68 × 2.2 in)	cUL · UL	Short-circuit · Overload · Over-voltage
