EV-SE-20-24US
Drivers · SE

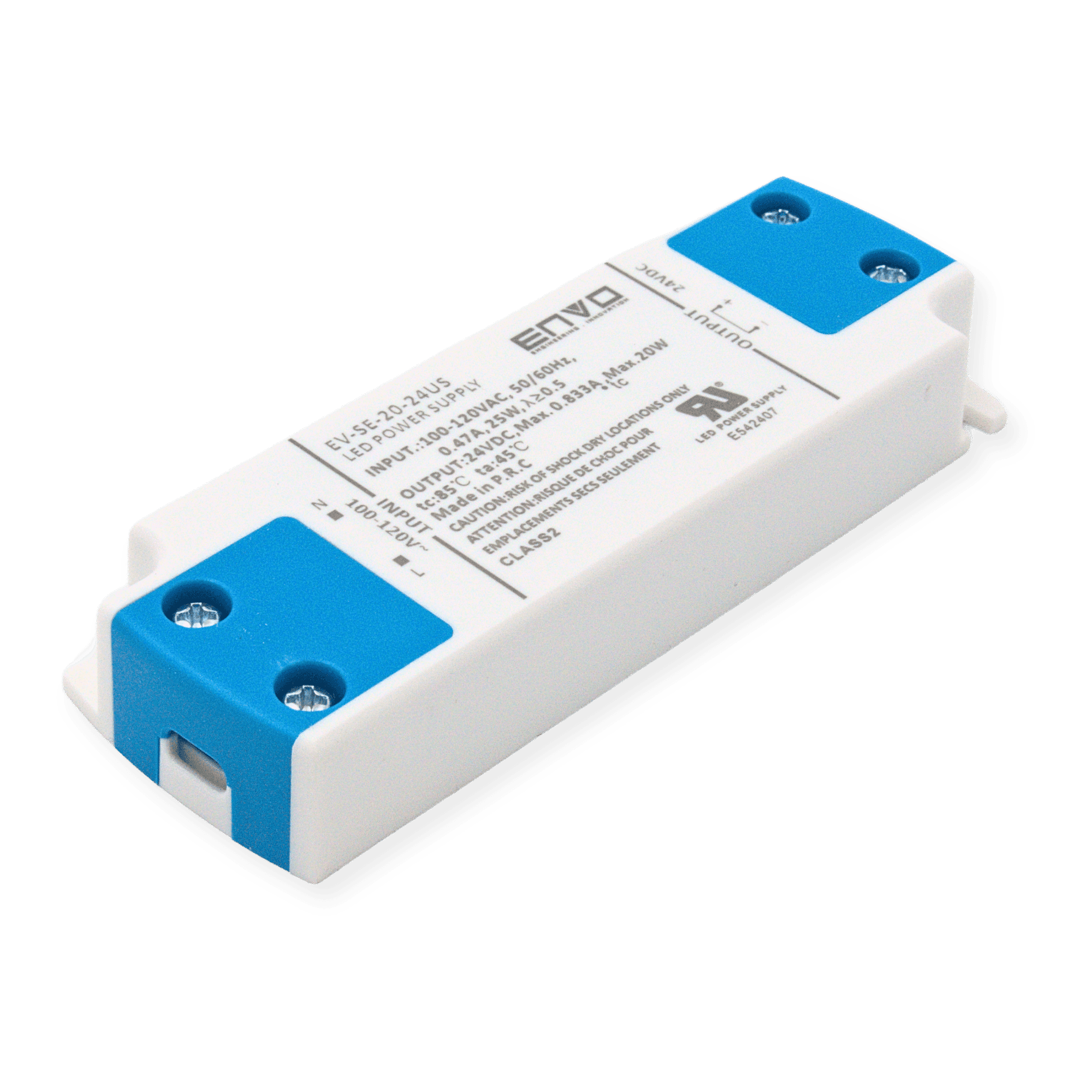

LED Driver 20W 24V 833mA

EV-SE-20-24US

Power20 W
Output voltage24 V DC
Input voltage100–120 V AC
Operation modeConstant voltage
IP ratingIP20
Rated current0.833 A
Dimensions103 × 16 × 35.5 mm(4.06 × 0.63 × 1.4 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-SE-20-24US.

The EV-SE-20-24US is a 20 W constant-voltage LED driver with a 24 V DC output.

Running on 24 V constant voltage, it is built for indoor installations and signage modules and LED strip.

Backing that up: maximum conversion efficiency of 86%, working Temperature at -20℃~+45°C, short circuit/overload / over voltage protection and low standby power consumption. It also offers full protection plastic case.

Where it works

Serviceable power for everyday LED loads.

EV-SE-20-24US application - Indoor lightbox sign

Indoor lightbox sign

CIVIC cabinet sign with accessible service wiring · 20 W · 24 V

EV-SE-20-24US application - Cafe under-cabinet strips

Cafe under-cabinet strips

warm task lighting under shelving and counters · 20 W · 24 V

EV-SE-20-24US application - Jewellery display case

Jewellery display case

cool white showcase lighting for glass display shelves · 20 W · 24 V

EV-SE-20-24US application - Reception wall sign

Reception wall sign

CLINIC backlit wall logo in a commercial interior · 20 W · 24 V
