EV-SE-75-24US
Drivers · SE

LED Driver 75W 24V 3.125A

EV-SE-75-24US

Power75 W
Output voltage24 V DC
Input voltage100–120 V AC
Operation modeConstant voltage
IP ratingIP20
Rated current3.125 A
Dimensions177 × 17.2 × 56 mm(6.97 × 0.68 × 2.2 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-SE-75-24US.

The EV-SE-75-24US is a 75 W constant-voltage LED driver with a 24 V DC output.

Running on 24 V constant voltage, it is built for indoor installations and signage modules and LED strip.

Backing that up: uS standard input voltage 90-132 Vac, IP20, maximum conversion efficiency of 88% and working Temperature at -20℃~+45°C.

Protections: Short circuit / Overload/Overvoltage.

Where it works

Serviceable power for everyday LED loads.

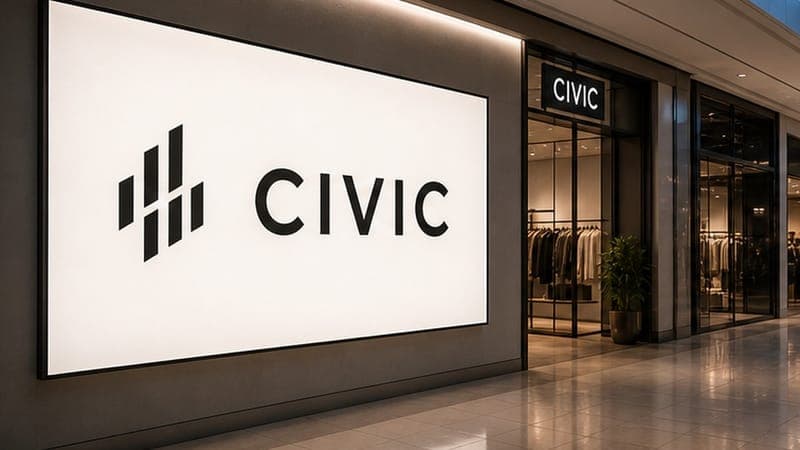

EV-SE-75-24US application - Indoor lightbox sign

Indoor lightbox sign

CIVIC cabinet sign with accessible service wiring · 75 W · 24 V

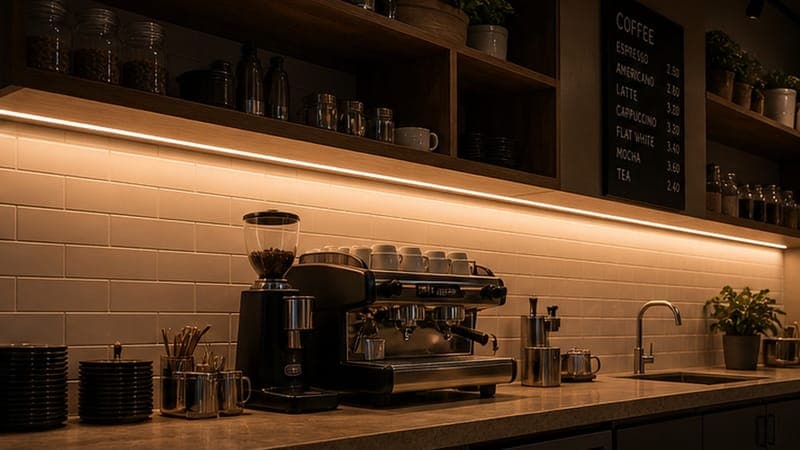

EV-SE-75-24US application - Cafe under-cabinet strips

Cafe under-cabinet strips

warm task lighting under shelving and counters · 75 W · 24 V

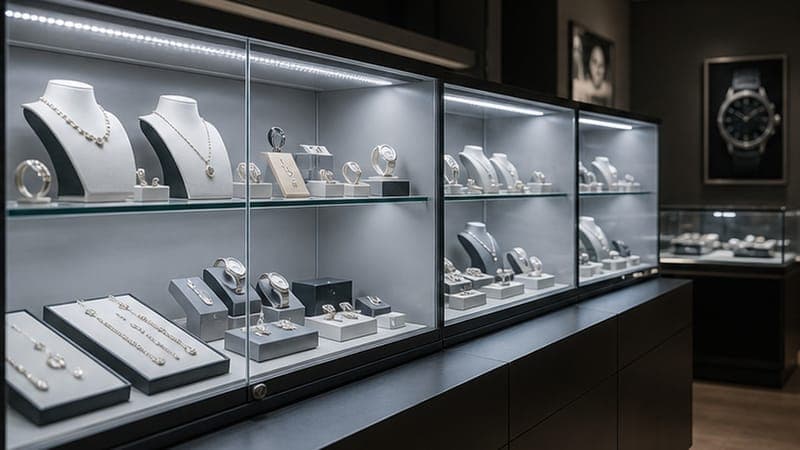

EV-SE-75-24US application - Jewellery display case

Jewellery display case

cool white showcase lighting for glass display shelves · 75 W · 24 V

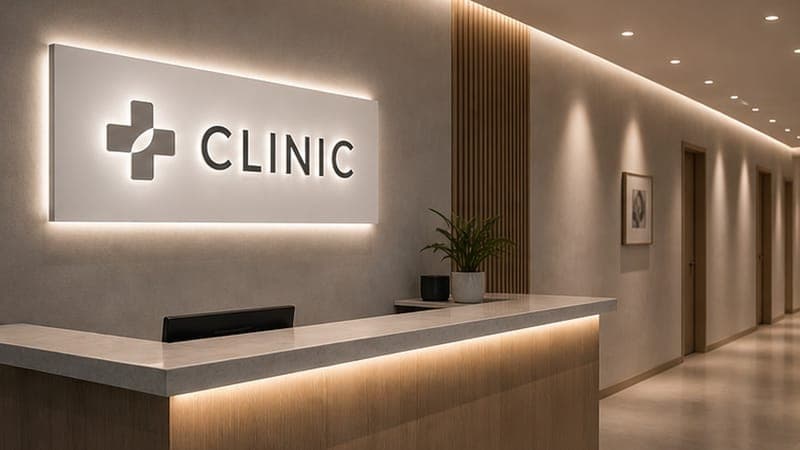

EV-SE-75-24US application - Reception wall sign

Reception wall sign

CLINIC backlit wall logo in a commercial interior · 75 W · 24 V
