EV-SNPV-60-24 product image — EV-SNPV-60-24

Drivers · SNPV

LED Driver 60W 24V 2.5A

EV-SNPV-60-24

Power60 W

Output voltage24 V DC

Input voltage100–240 V AC

Operation modeConstant voltage

IP ratingIP20

Rated current2.5 A

Dimensions159.9 × 18 × 57.8 mm(6.3 × 0.71 × 2.28 in)

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

About the EV-SNPV-60-24.

The EV-SNPV-60-24 is a 60 W constant-voltage LED driver with a 24 V DC output.

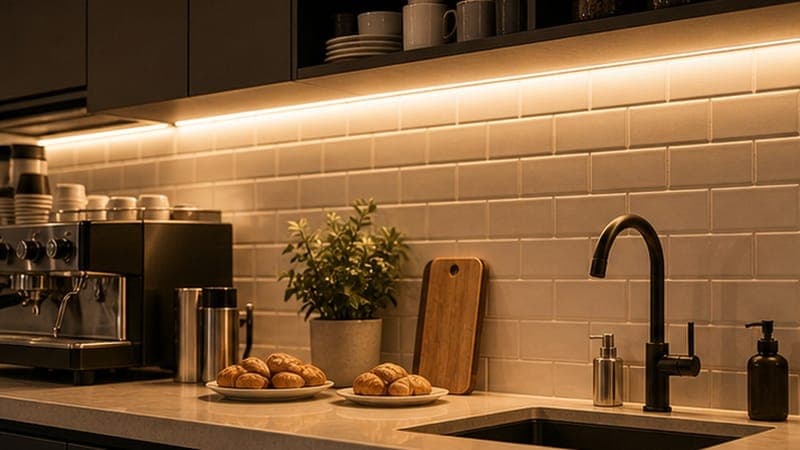

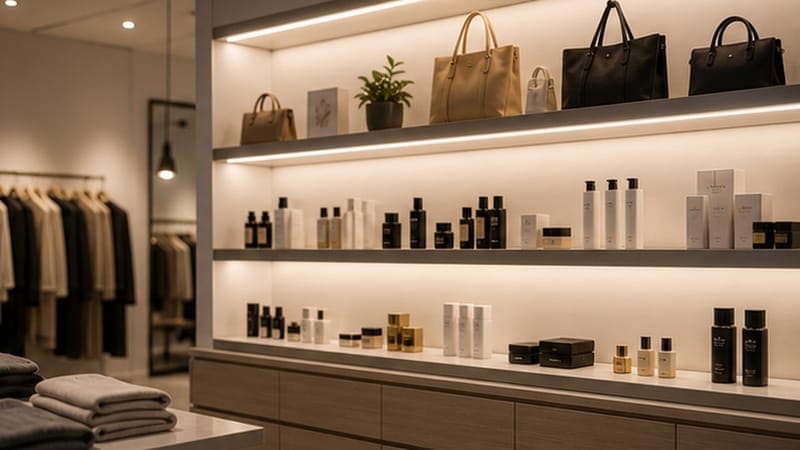

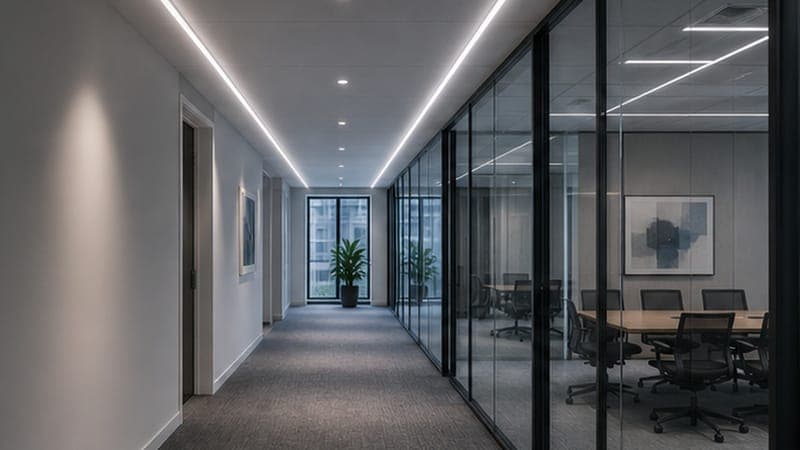

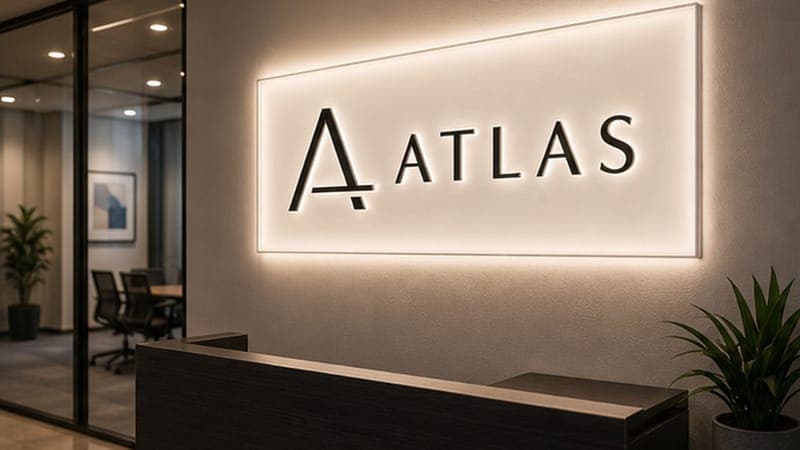

Running on 24 V constant voltage, it is built for display and cabinet lighting, indoor installations and signage modules and LED strip.

Backing that up: efficiency up to 87%, protection:Open circuit/Over load/Short circuit/Over temperature/Over voltage/Auto recovery/Latch off, sELV Open circuit and flat and slim design. It also offers helpful for funiture or cabinet lighting application and class2 standard of electric shock protection.

Range: 100-240Vac.

Where it works
