LED Driver 40W 24V 1.67A

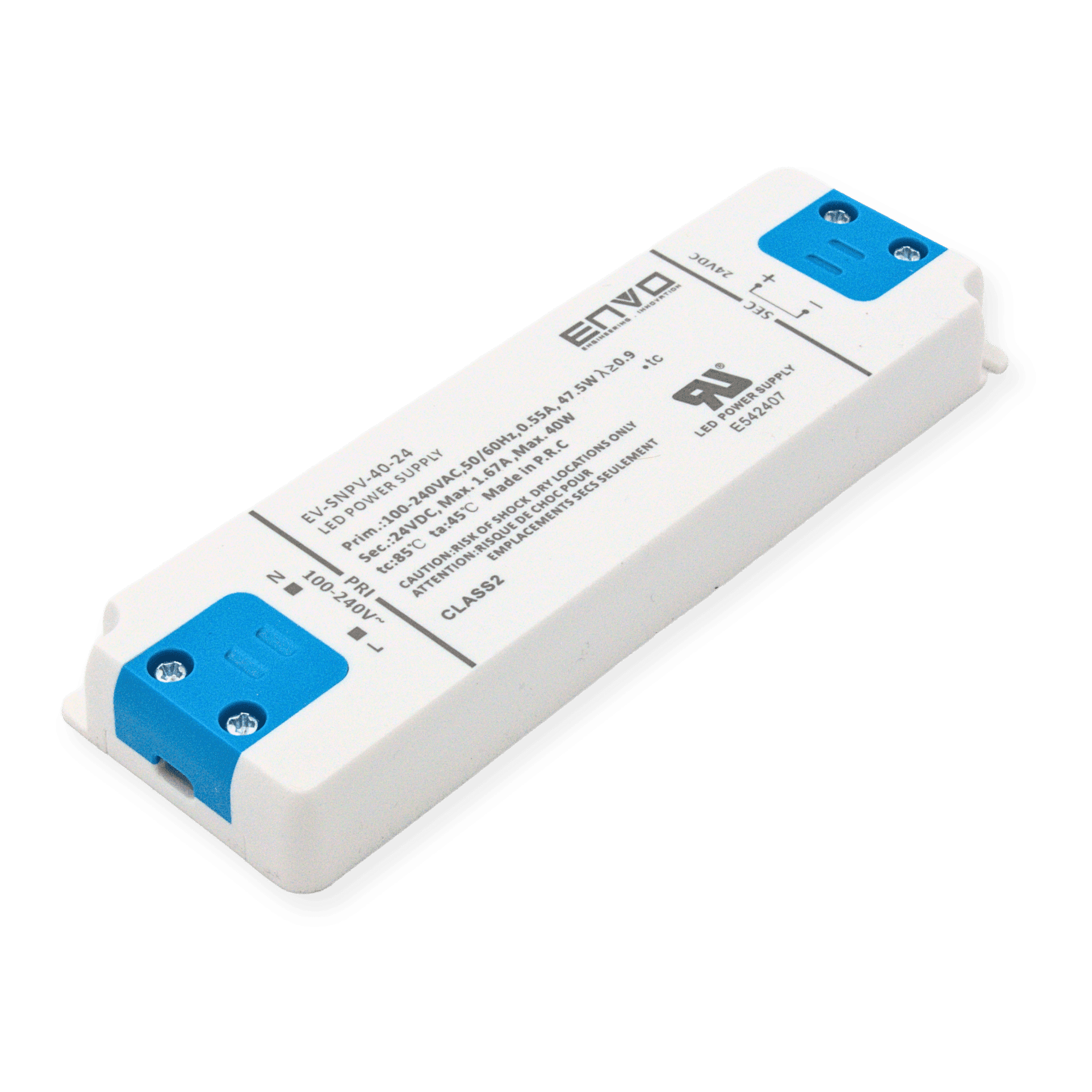

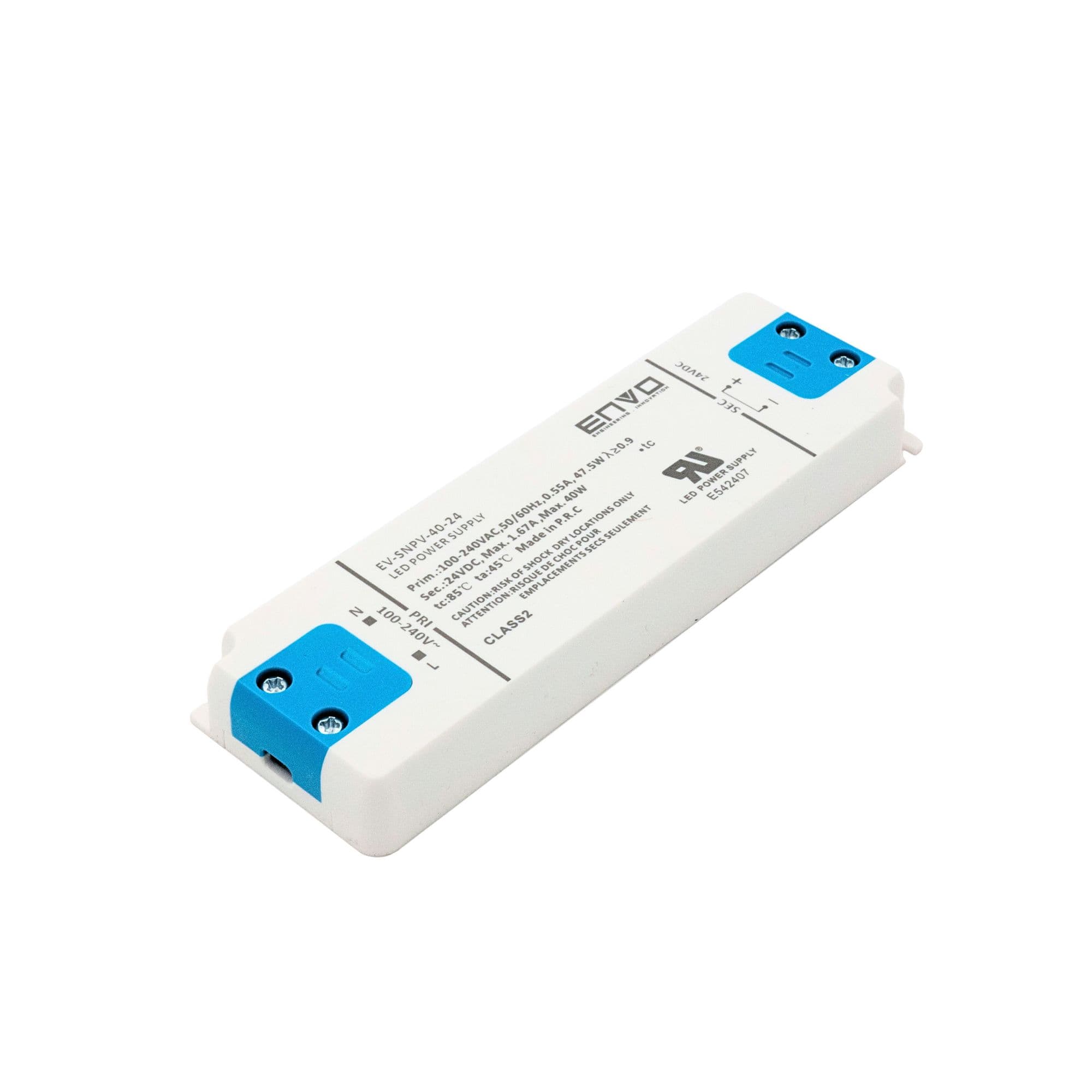

Name: ENVO EV-SNPV-40-24 LED Driver 40W 24V 1.67A
Brand: ENVO
SKU: EV-SNPV-40-24

EV-SNPV-40-24

Power40 W

Output voltage24 V DC

Input voltage90–264 V AC

Operation modeConstant voltage

IP ratingIP20

Rated current1.67 A

Dimensions156 × 17 × 50 mm(6.14 × 0.67 × 1.97 in)

Sold through authorised distributors

Model code: EV-SNPV-40-24
Power: 40 W
Output voltage: 24 V DC
Rated current: 1.67 A
Input voltage: 90–264 V AC
IP rating: IP20
Dimensions: 156 × 17 × 50 mm(6.14 × 0.67 × 1.97 in)
Operation mode: Constant voltage (CV)
Certifications: CESELV
Protections: Short-circuit · Open-circuit · Overload · Over-voltage · Over-temperature
Warranty: 5 years

SNPV

All models in this series

4 models · 40–60 W · 12 / 24 V DC output

Model	Power	Output	Input voltage	IP rating	Dimensions
EV-SNPV-40-24Current	40 W	24 V DC1.67 A	90–264 V AC	IP20	156 × 17 × 50 mm(6.14 × 0.67 × 1.97 in)
EV-SNPV-40-12	40 W	12 V DC3.33 A	90–264 V AC	IP20	156 × 17 × 50 mm(6.14 × 0.67 × 1.97 in)

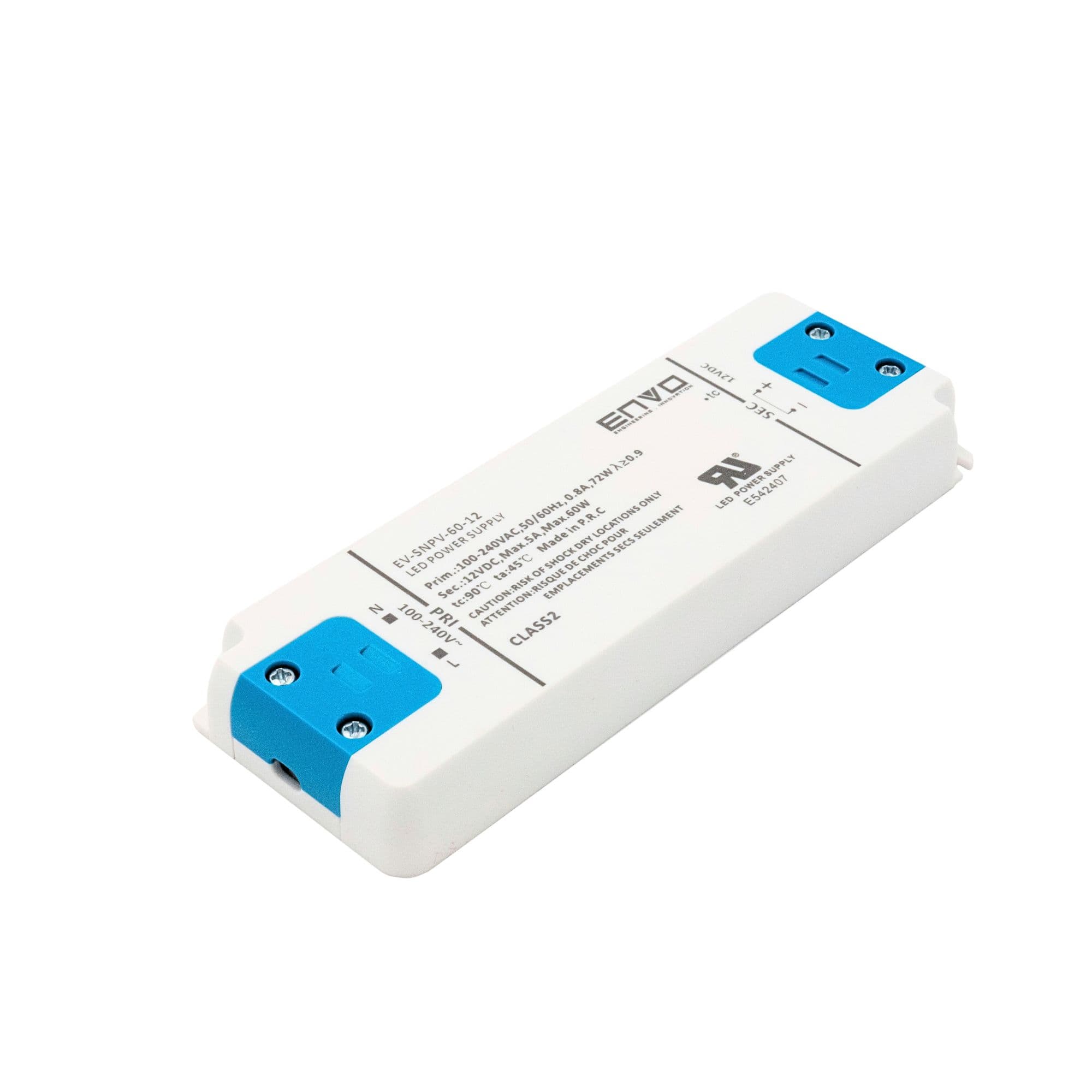

EV-SNPV-60-12	60 W	12 V DC5 A	100–240 V AC	IP20	159.9 × 18 × 57.8 mm(6.3 × 0.71 × 2.28 in)

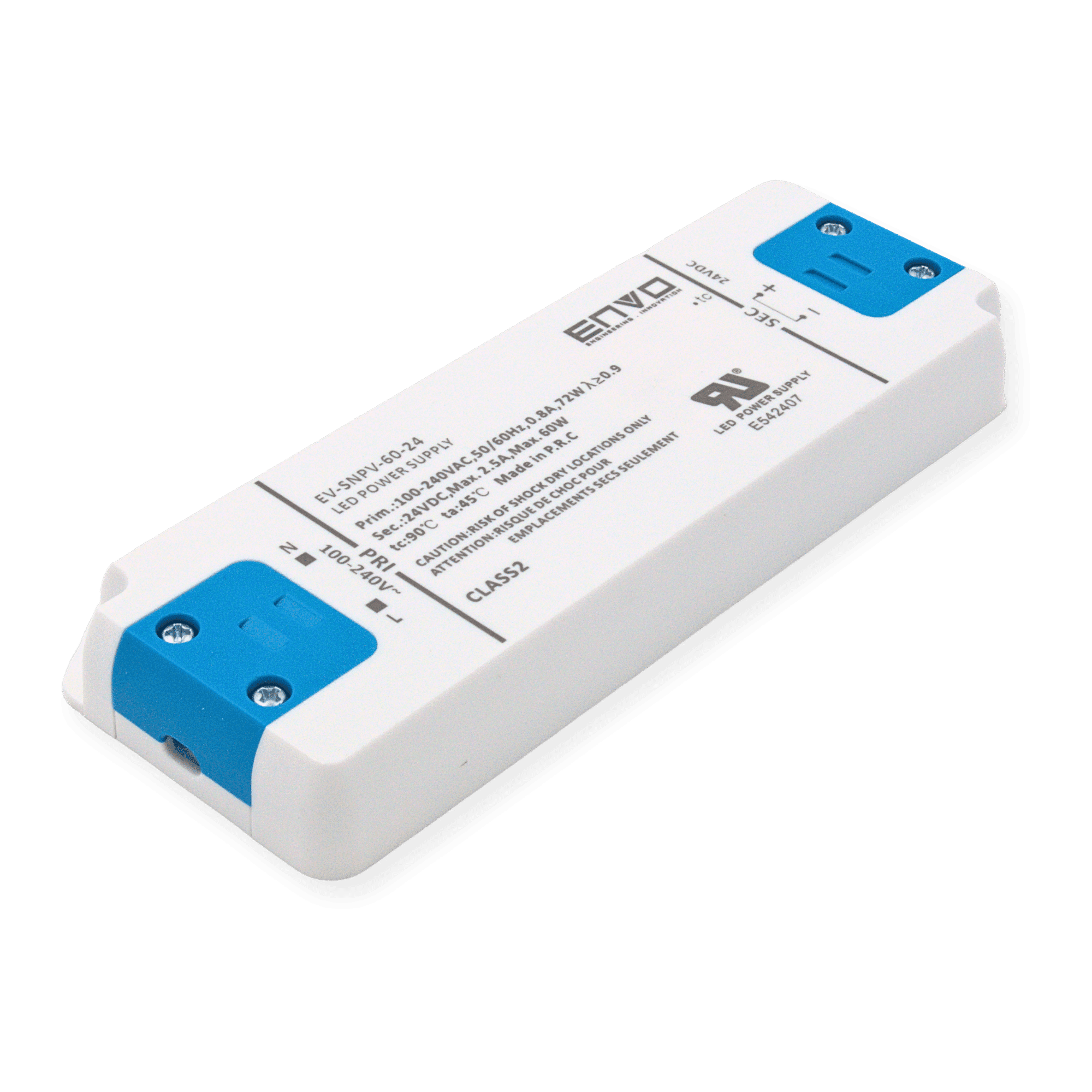

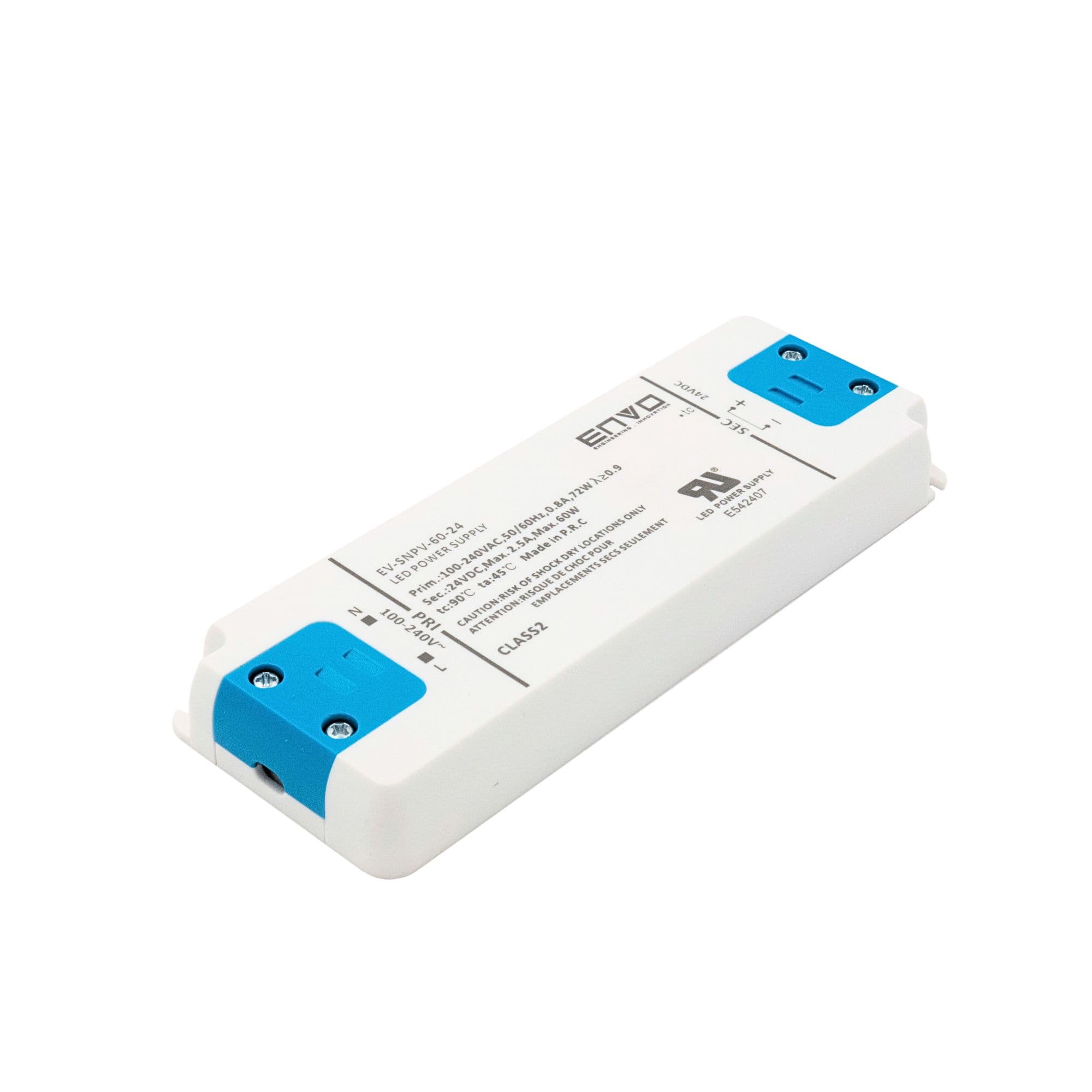

EV-SNPV-60-24	60 W	24 V DC2.5 A	100–240 V AC	IP20	159.9 × 18 × 57.8 mm(6.3 × 0.71 × 2.28 in)
