MiniLux Series

Ultra-compact backlit modules for small letters and shallow, intricate depths — even spread with no hotspots.

Power0.24–0.72 W

Input voltage12 V DC

Max series40

IP ratingIP66

DimensionsW9 × H9 × L14/26/38 mm(0.35 × 0.35 × 0.55/1.02/1.5 in)

Warranty5 years

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Engineered to specify with confidence.

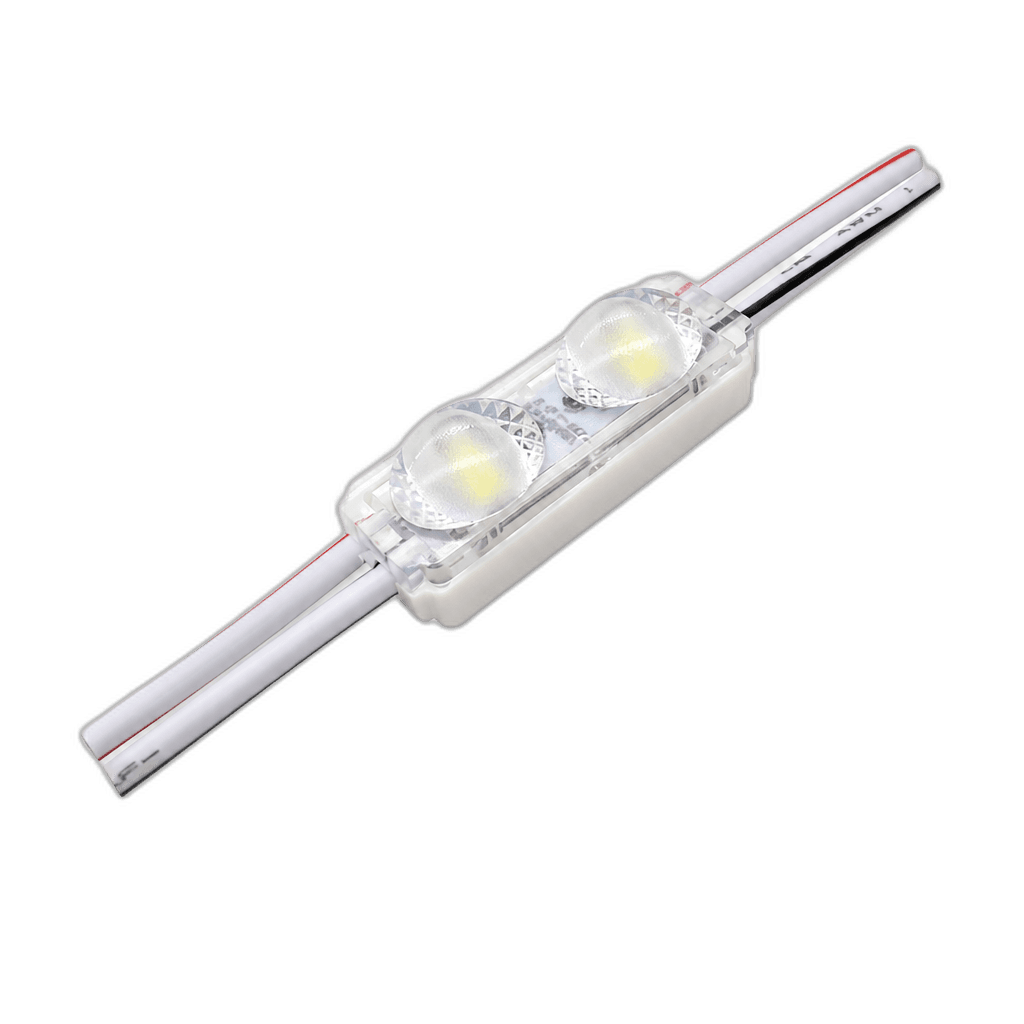

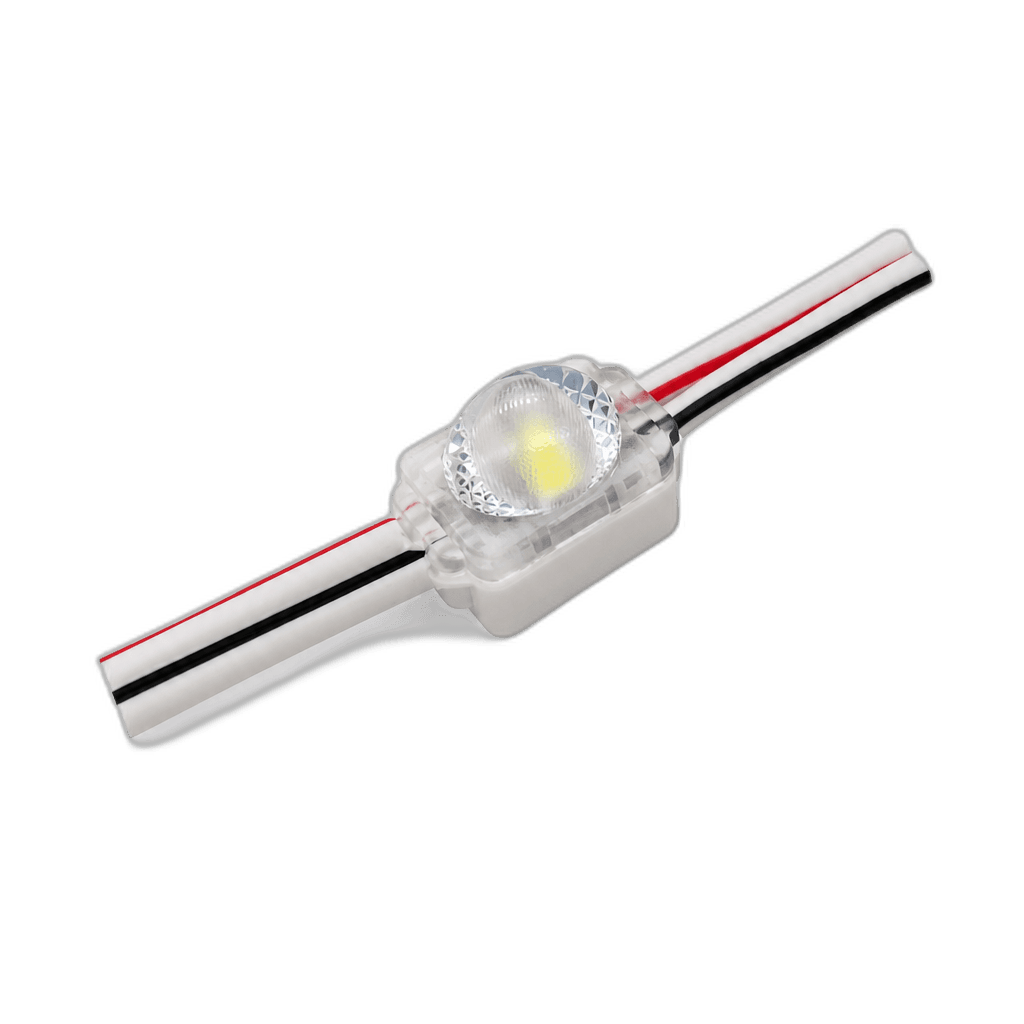

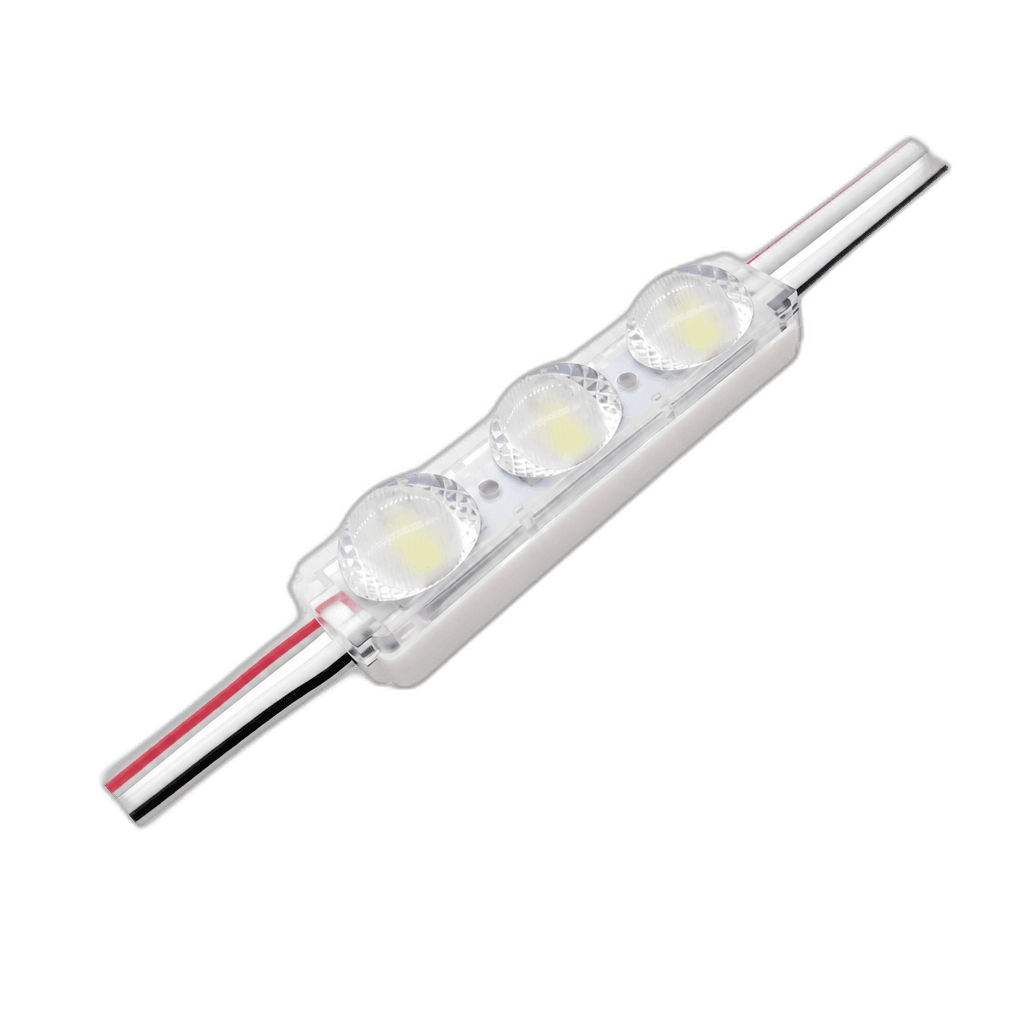

The MiniLux range is one to three binned SMD LEDs behind a Diamondback lens that throws a 180° × 140° beam — so light reaches the face evenly with no scalloping, even on shallow returns and tight radii. Every module is silicone-potted to IP66 and rated for −25 °C to +60 °C, so the same part number performs across climates. Run up to ~40 modules per power-injection point on a 12 V constant-voltage feed.

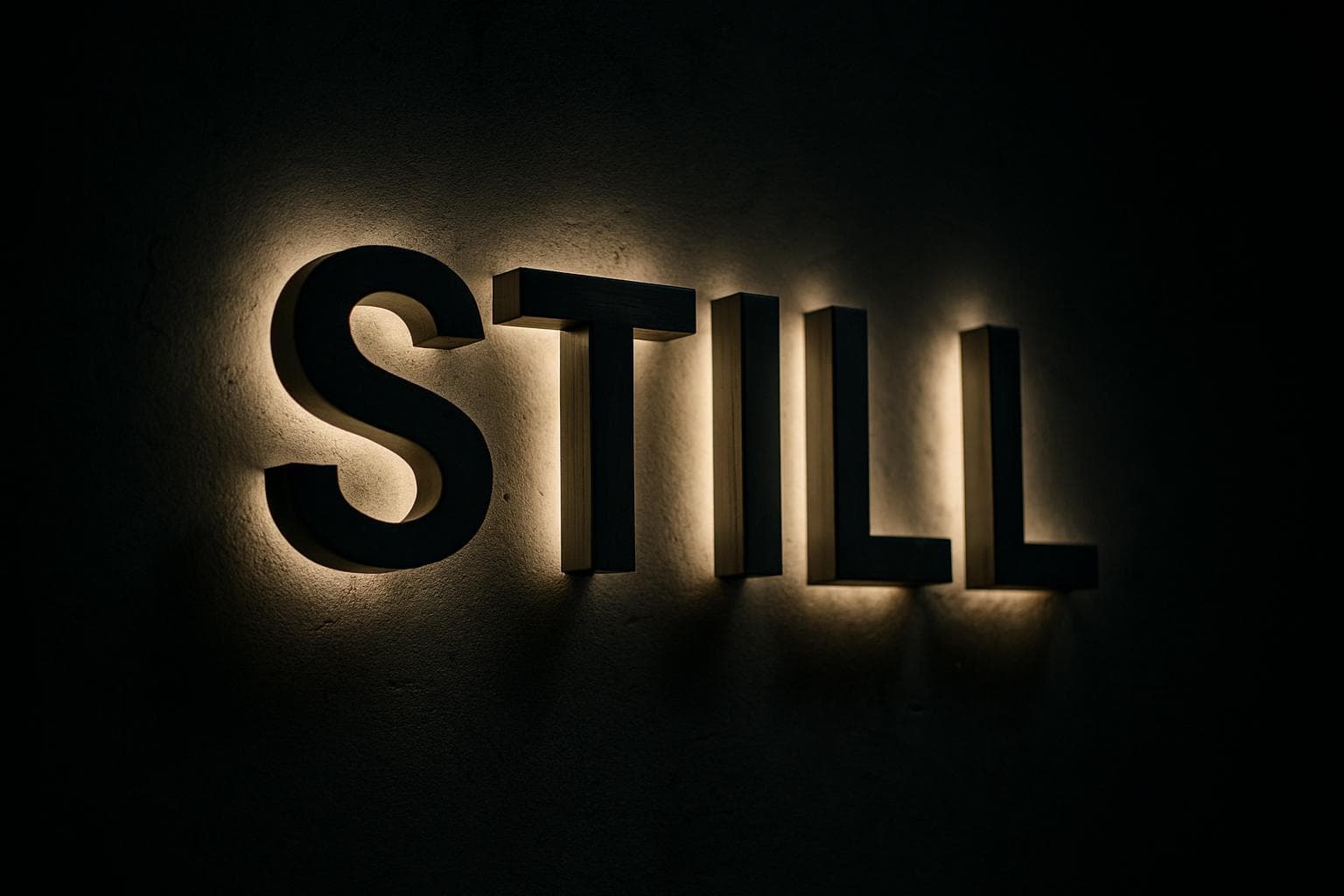

Where it works
