Modules · Light source
ProGlo Series
High-output professional backlit modules for large, high-traffic signage.
Power0.36–1.2 W
Input voltage12 V DC
Max series20–30
IP ratingIP67
DimensionsL17.4/42.1/52/78 mm(0.69/1.66/2.05/3.07 in)
Warranty7 years
Sold through authorised distributors

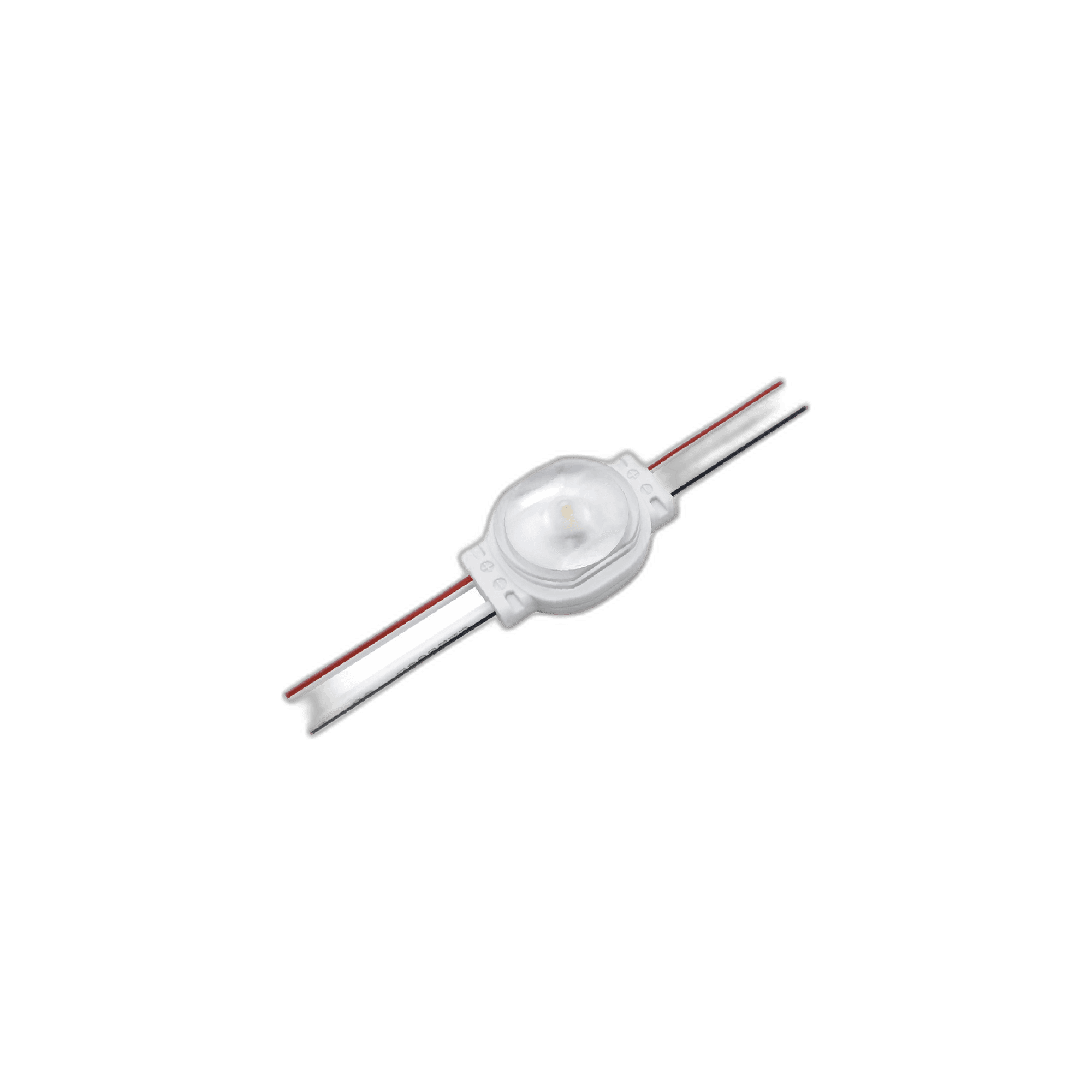

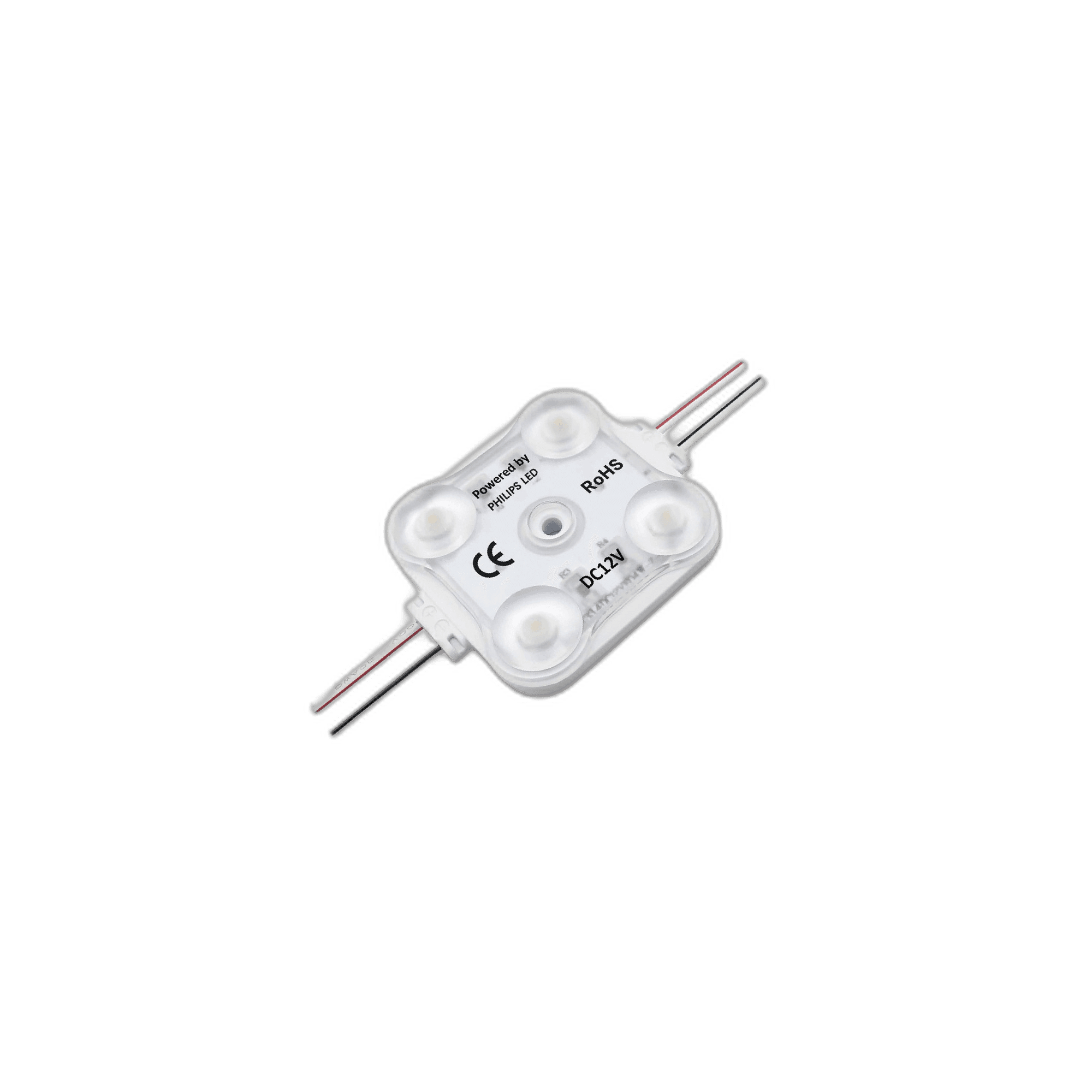

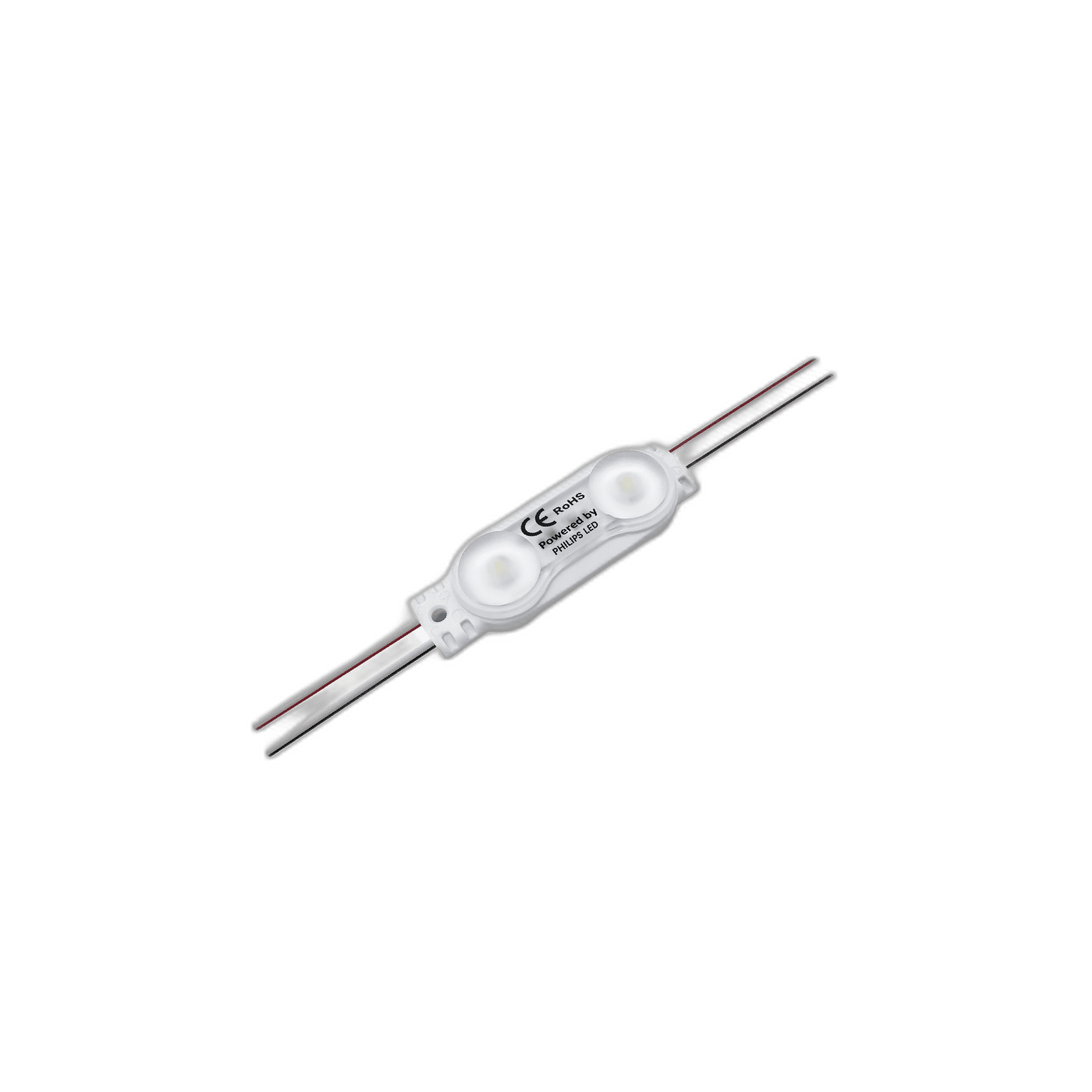

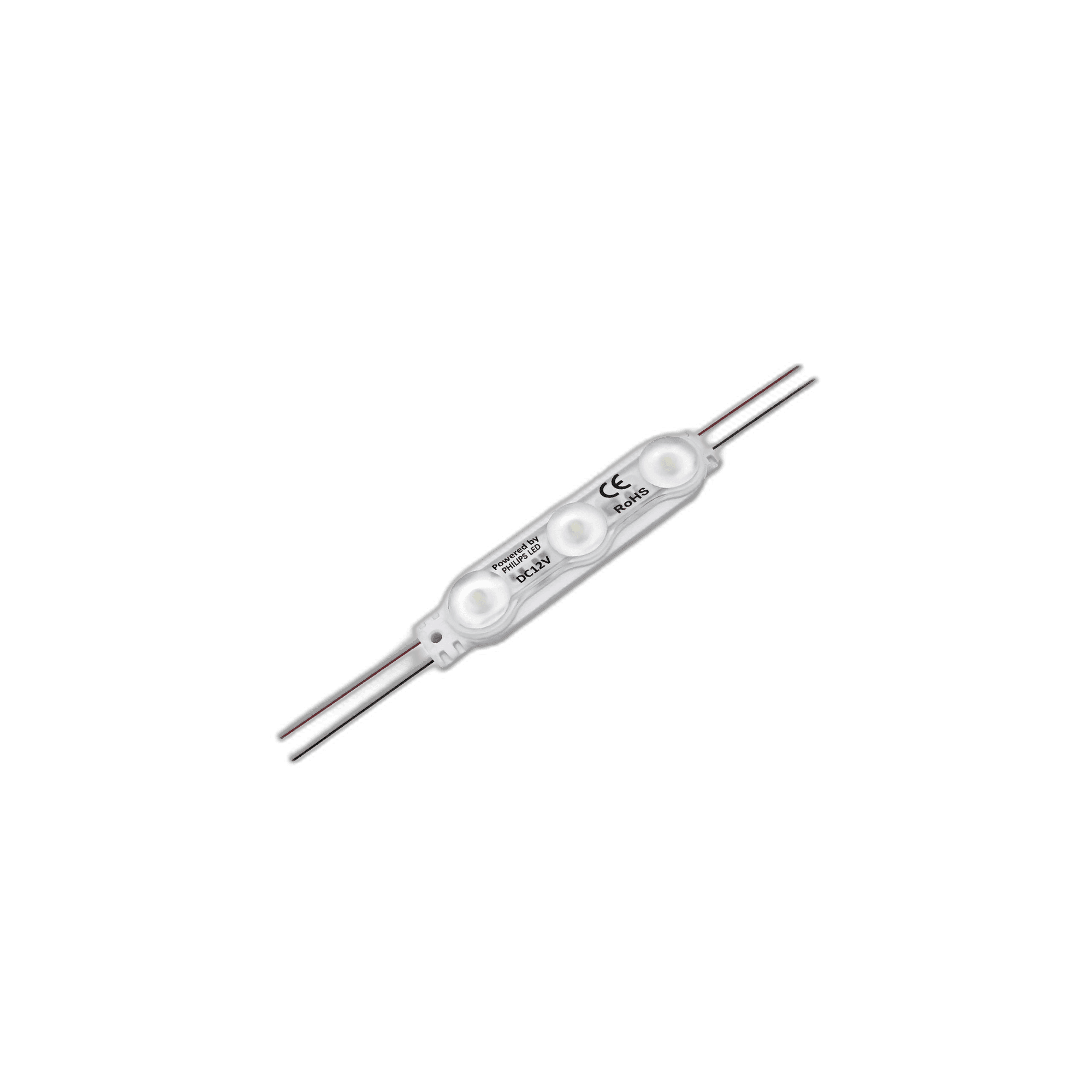

Single | Duo | Triple | Quad | |
|---|---|---|---|---|

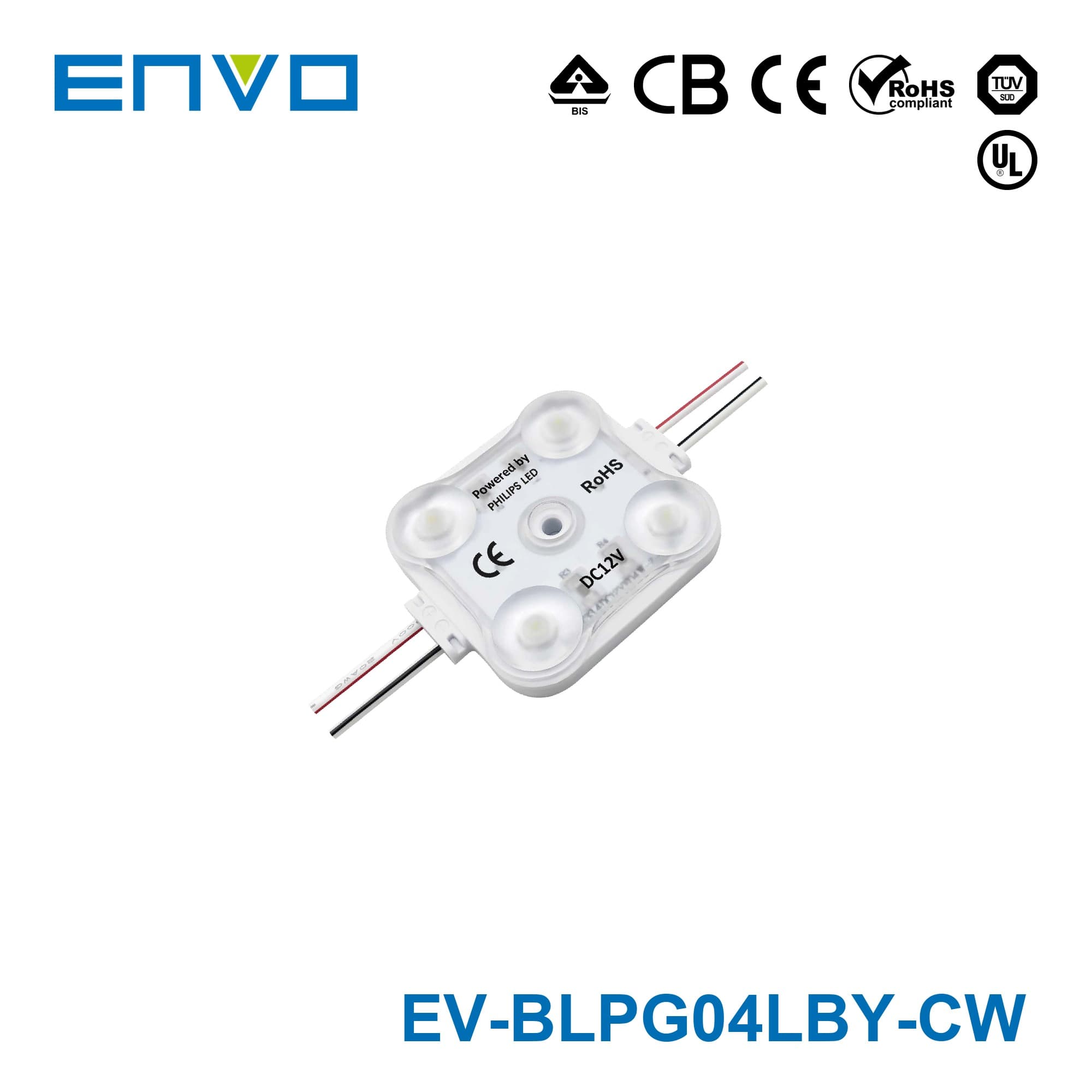

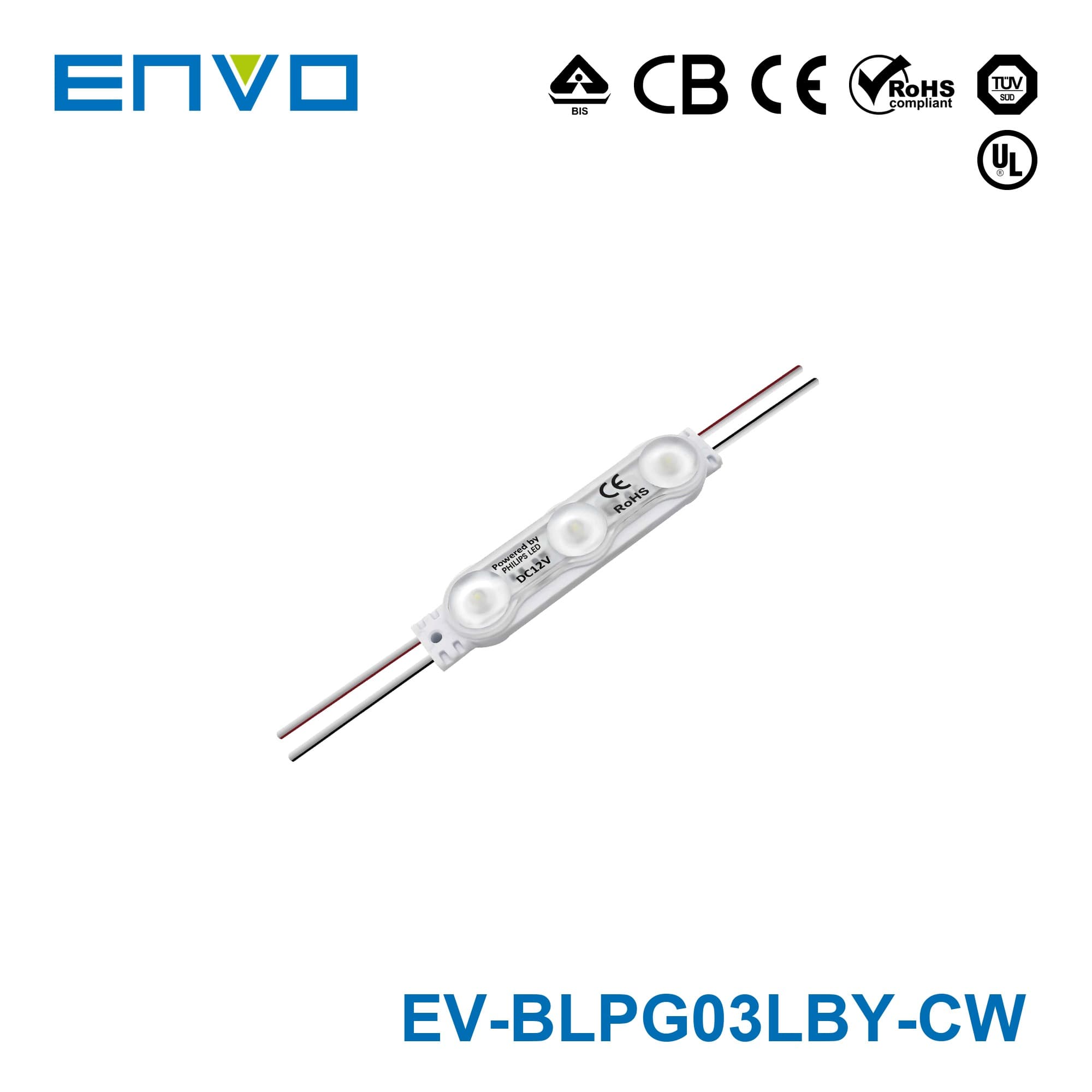

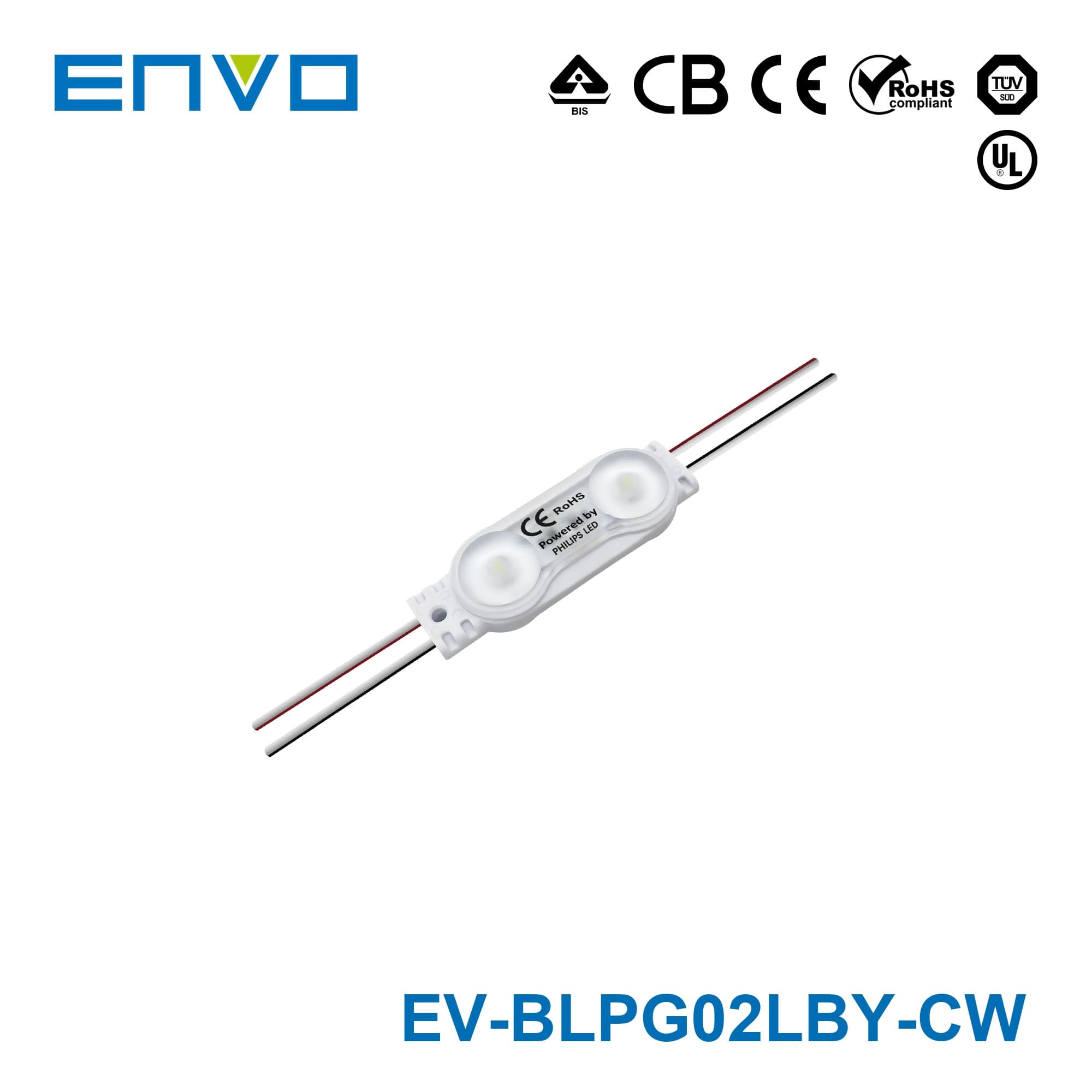

| Model code | EV-BLPG01LBY | EV-BLPG02LBY | EV-BLPG03LBY | EV-BLPG04LBY |
| LED beads | 1 | 2 | 3 | 4 |
| Light output | ~ 60 lm | ~ 110 lm | ~ 165 lm | ~ 180 lm |
| Power | 0.36 W | 0.72 W | 1.08 W | 1.2 W |
| Dimensions | 17.4 × 17.42 × 9.6 mm (0.69 × 0.69 × 0.38 in) | 52 × 18.5 × 9.6 mm (2.05 × 0.73 × 0.38 in) | 78 × 18.5 × 9.6 mm (3.07 × 0.73 × 0.38 in) | 42.1 × 42.1 × 9.6 mm (1.66 × 1.66 × 0.38 in) |
| Colour temperature | 3000 K · 4000 K · 6500 K | |||
| Beam angle | 170° | |||
| Efficacy | ~ 150–167 lm / W | |||
| IP rating | IP67 | |||
| Lifetime | 50,000 h | |||
| Certifications | BISCBCERoHSTÜVUL | |||
| Warranty | 7 years | |||
Where it works
Built for the job.
Retail channel letters
clean professional fill
Corporate facades
consistent colour
Lightbox cabinets
balanced output
Wayfinding & interior signs
low-glare even glow
