ENVO ProGlo LED Module Backlit - Quad LED — EV-BLPG04LBY

Modules · ProGlo

ProGlo LED Module Backlit - Quad LED

EV-BLPG04LBY

Power1.2 W

Input voltage12 V DC

Max series20

IP ratingIP67

DimensionsL42.1 × W42.1 × H9.6 mm(1.66 × 1.66 × 0.38 in)

Warranty7 years

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Model code: EV-BLPG04LBY
LED beads: 4
Light output: ~ 180 lm
Power: 1.2 W
Dimensions: 42.1 × 42.1 × 9.6 mm(1.66 × 1.66 × 0.38 in)
Colour temperature: 3000 K · 4000 K · 6500 K
Beam angle: 170°
Efficacy: ~ 150–167 lm / W
IP rating: IP67
Lifetime: 50,000 h
Certifications: BISCBCERoHSTÜVUL
Warranty: 7 years

ProGlo

All models in this series

4 models · 0.36–1.2 W

Model	Power	LED beads	Light output	Dimensions	Spec sheet
EV-BLPG04LBYCurrent	1.2 W	4	~ 180 lm	42.1 × 42.1 × 9.6 mm(1.66 × 1.66 × 0.38 in)
EV-BLPG01LBY	0.36 W	1	~ 60 lm	17.4 × 17.42 × 9.6 mm(0.69 × 0.69 × 0.38 in)
EV-BLPG02LBY	0.72 W	2	~ 110 lm	52 × 18.5 × 9.6 mm(2.05 × 0.73 × 0.38 in)
EV-BLPG03LBY	1.08 W	3	~ 165 lm	78 × 18.5 × 9.6 mm(3.07 × 0.73 × 0.38 in)

Where it works

Professional output for premium signs.

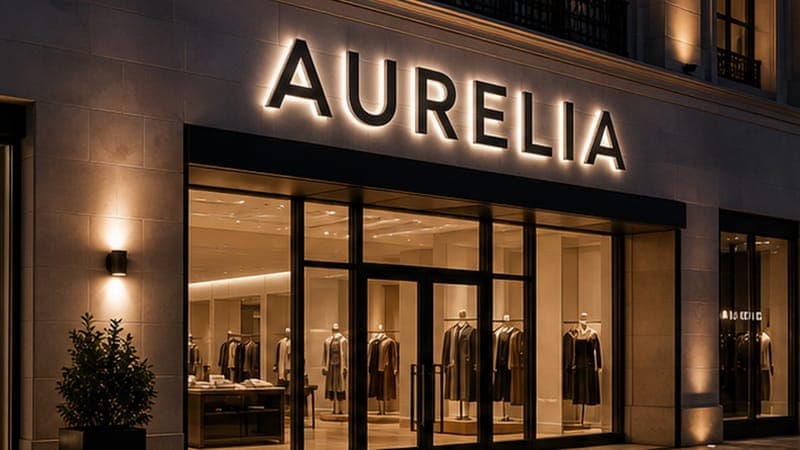

EV-BLPG04LBY-NW application - Premium retail channel letters

Premium retail channel letters

AURELIA storefront letters with stronger face output · quad natural white module

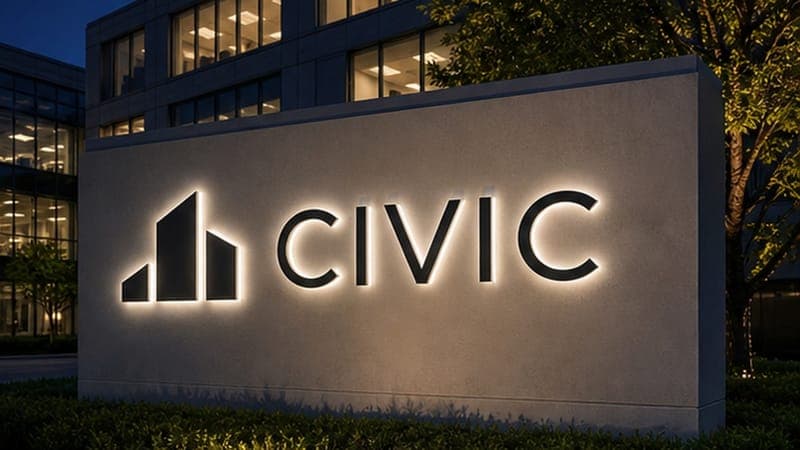

EV-BLPG04LBY-NW application - Corporate facade sign

Corporate facade sign

CIVIC building letters for a clean professional frontage · quad natural white module

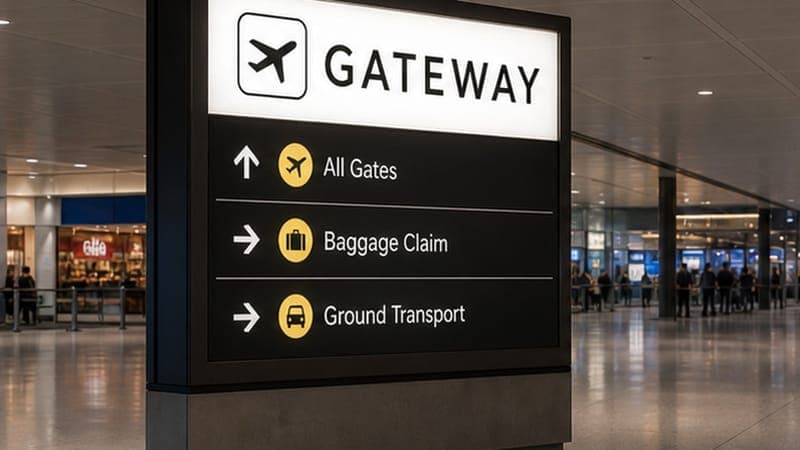

EV-BLPG04LBY-NW application - Directory lightbox cabinet

Directory lightbox cabinet

GATEWAY illuminated cabinet for a commercial entrance · quad natural white module

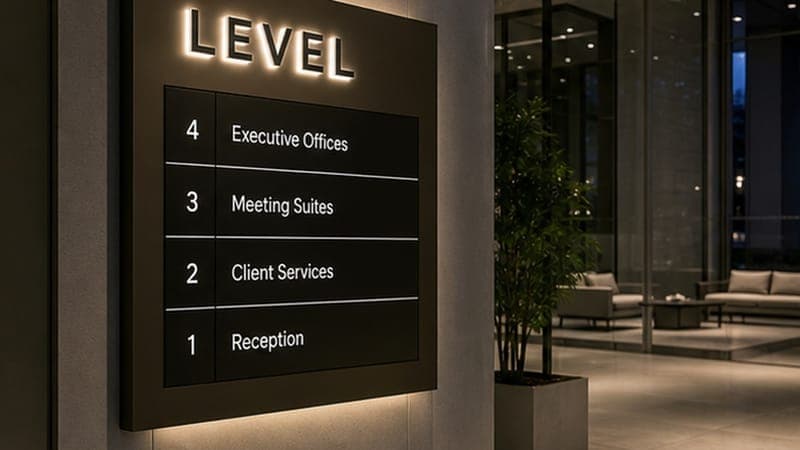

EV-BLPG04LBY-NW application - Interior wayfinding sign

Interior wayfinding sign

LEVEL lobby direction sign with crisp backlighting · quad natural white module
