EV-SLEL01LBY
Modules · EdgeLume

EdgeLume LED Module Sidelit - Single LED

EV-SLEL01LBY

Power1.32 W
Input voltage12 V DC
Max series20
IP ratingIP67
DimensionsL43 × W23 × H11.6 mm(1.69 × 0.91 × 0.46 in)
Warranty7 years
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors
Model code
EV-SLEL01LBY
LED beads
1
Light output
~ 125 lm
Power
1.32 W
Dimensions
43 × 23 × 11.6 mm(1.69 × 0.91 × 0.46 in)
Colour temperature
3000 K · 4000 K · 7000 K
Beam angle
10° × 65°
Efficacy
~ 95 lm / W
IP rating
IP67
Lifetime
50,000 h
Warranty
7 years
Where it works

Thin edge-lit details for tight spaces.

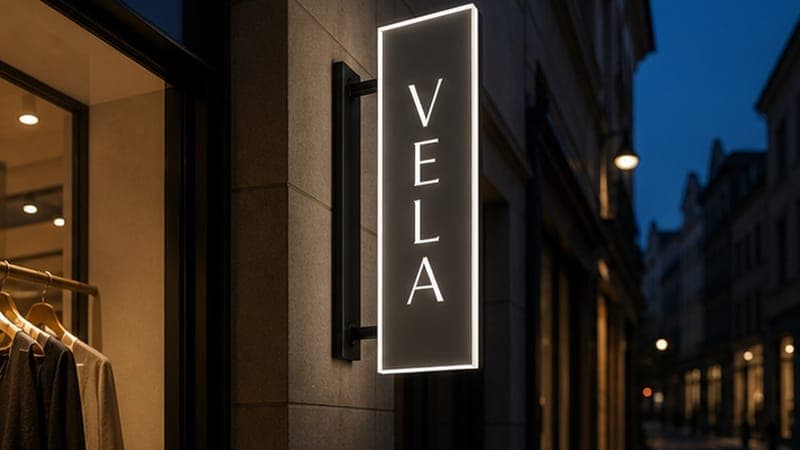

EV-SLEL01LBY-NW application - Slim blade sign

Slim blade sign

VELA thin projecting sign for a narrow storefront · single natural white module

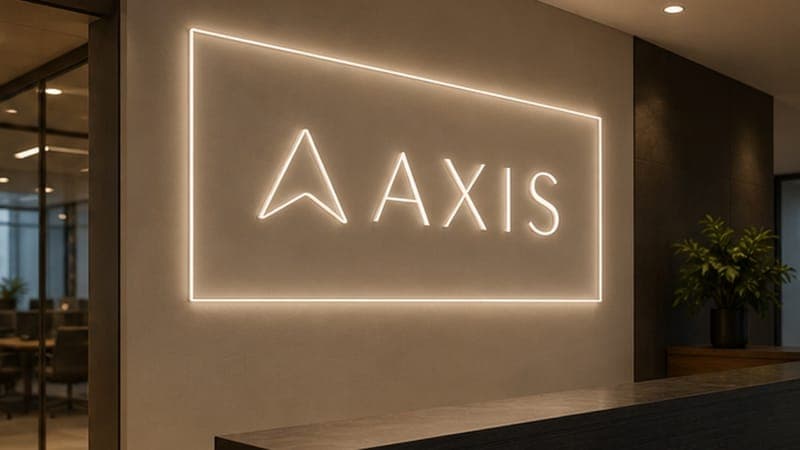

EV-SLEL01LBY-NW application - Acrylic information panel

Acrylic information panel

AXIS edge-lit panel for lobby or reception graphics · single natural white module

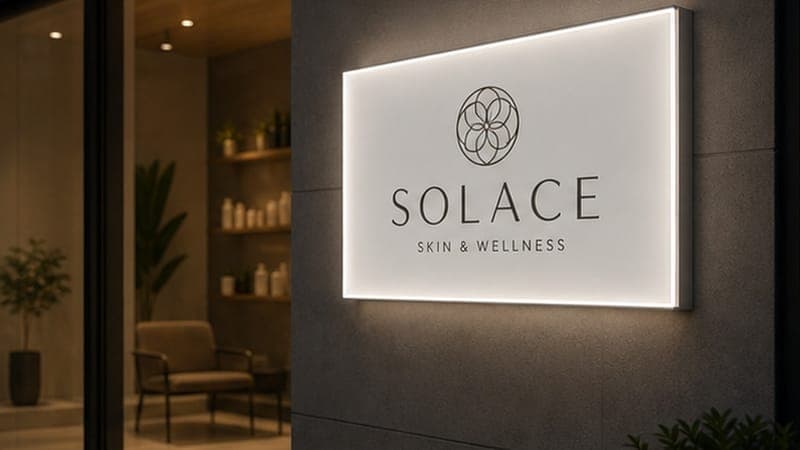

EV-SLEL01LBY-NW application - Thin menu lightbox

Thin menu lightbox

SOLACE shallow lightbox where wall depth is tight · single natural white module

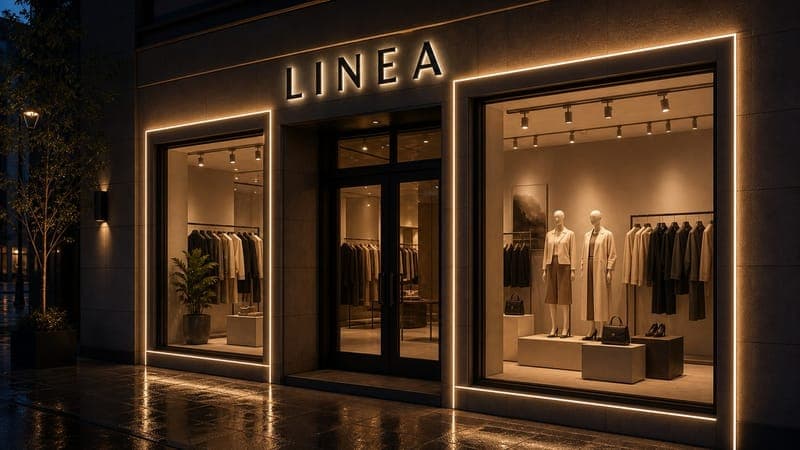

EV-SLEL01LBY-NW application - Decorative linear trim

Decorative linear trim

LINEA illuminated trim detail around an entrance · single natural white module
