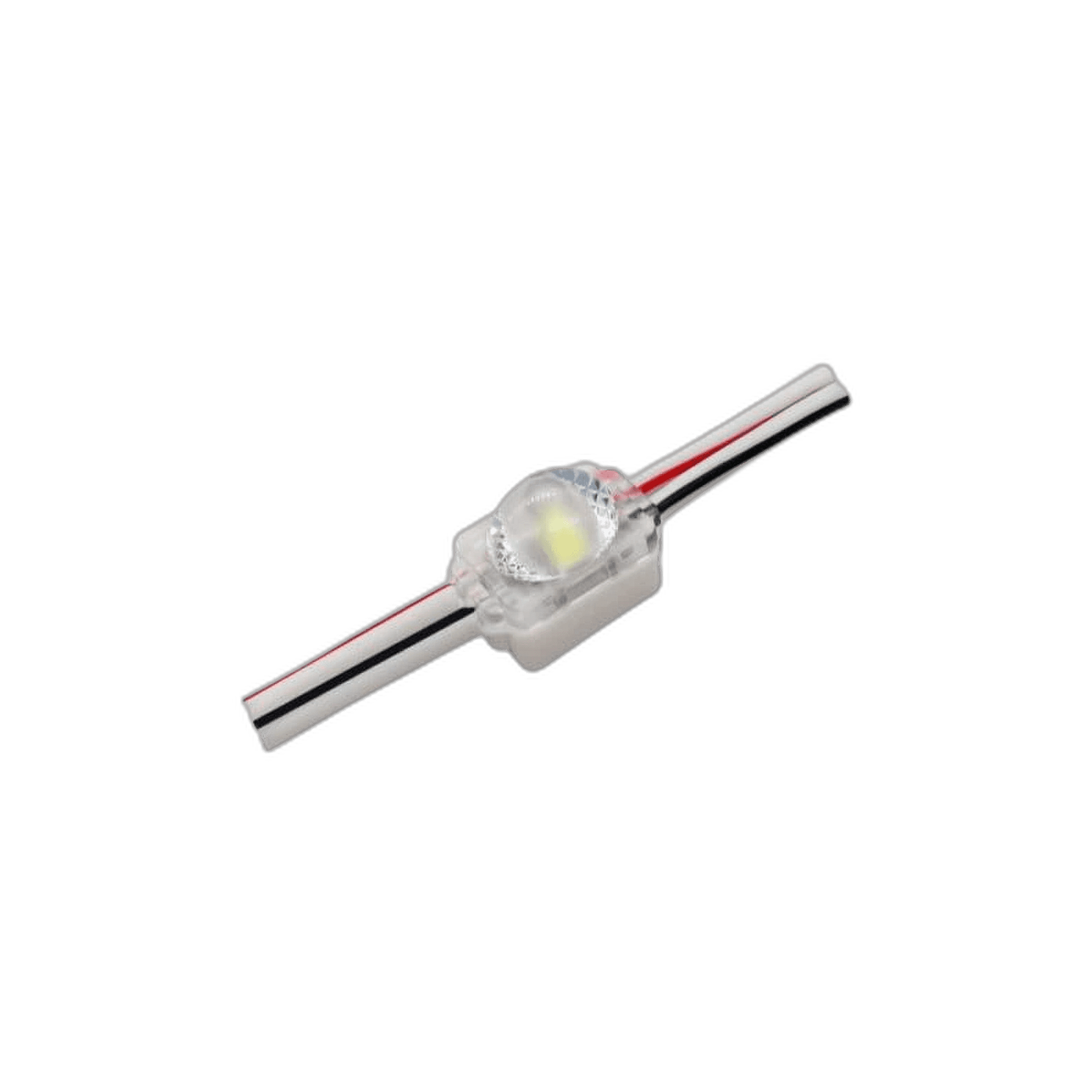

MiniLux LED Module Backlit - Triple LED

EV-BLML03LBY

Power0.72 W

Input voltage12 V DC

Max series40

IP ratingIP66

DimensionsL38 × W9 × H9 mm(1.5 × 0.35 × 0.35 in)

Warranty5 years

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

It is built for signage systems.

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability. Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out. Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows. Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

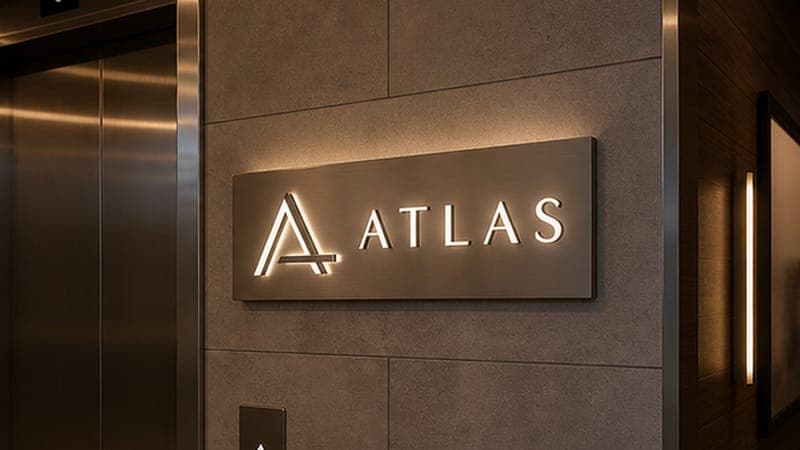

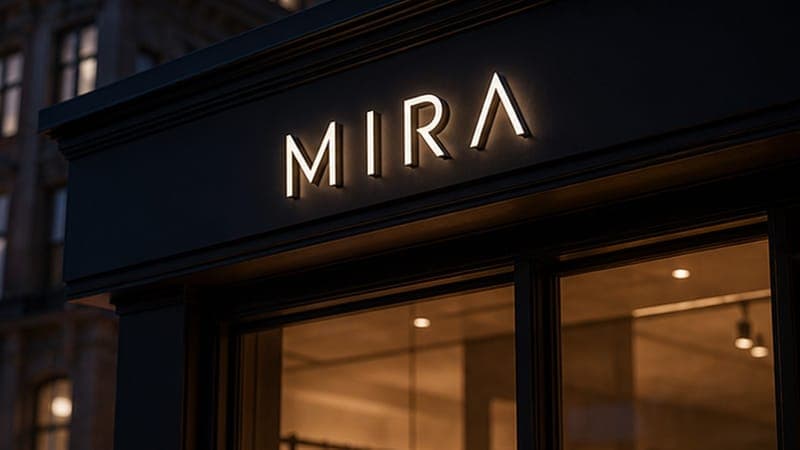

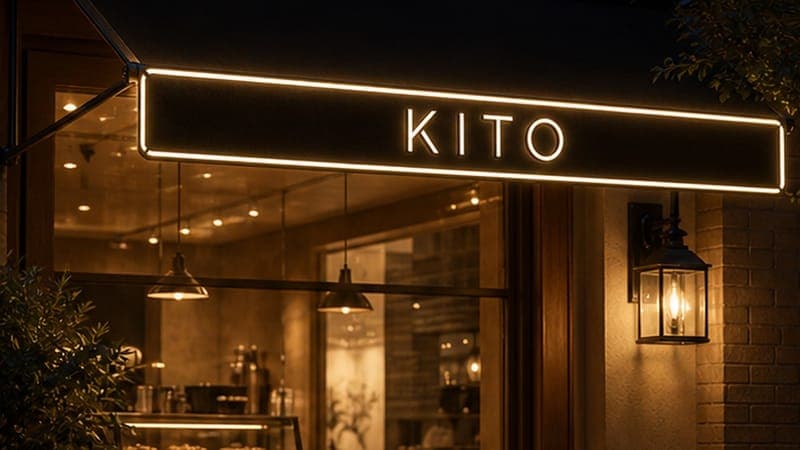

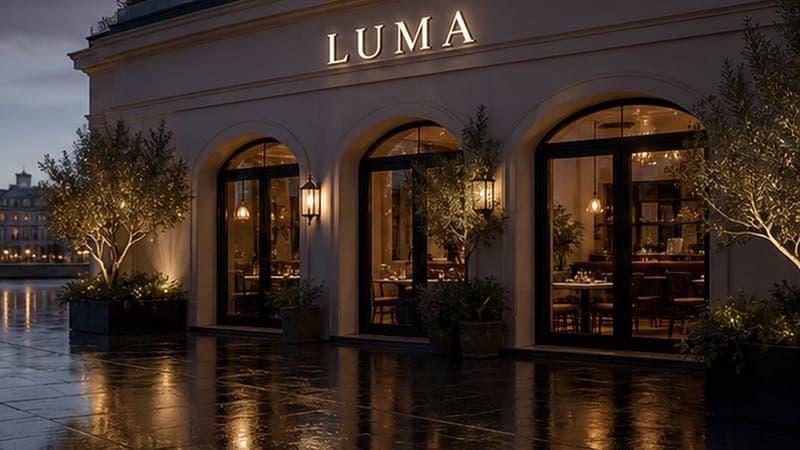

Where it works
