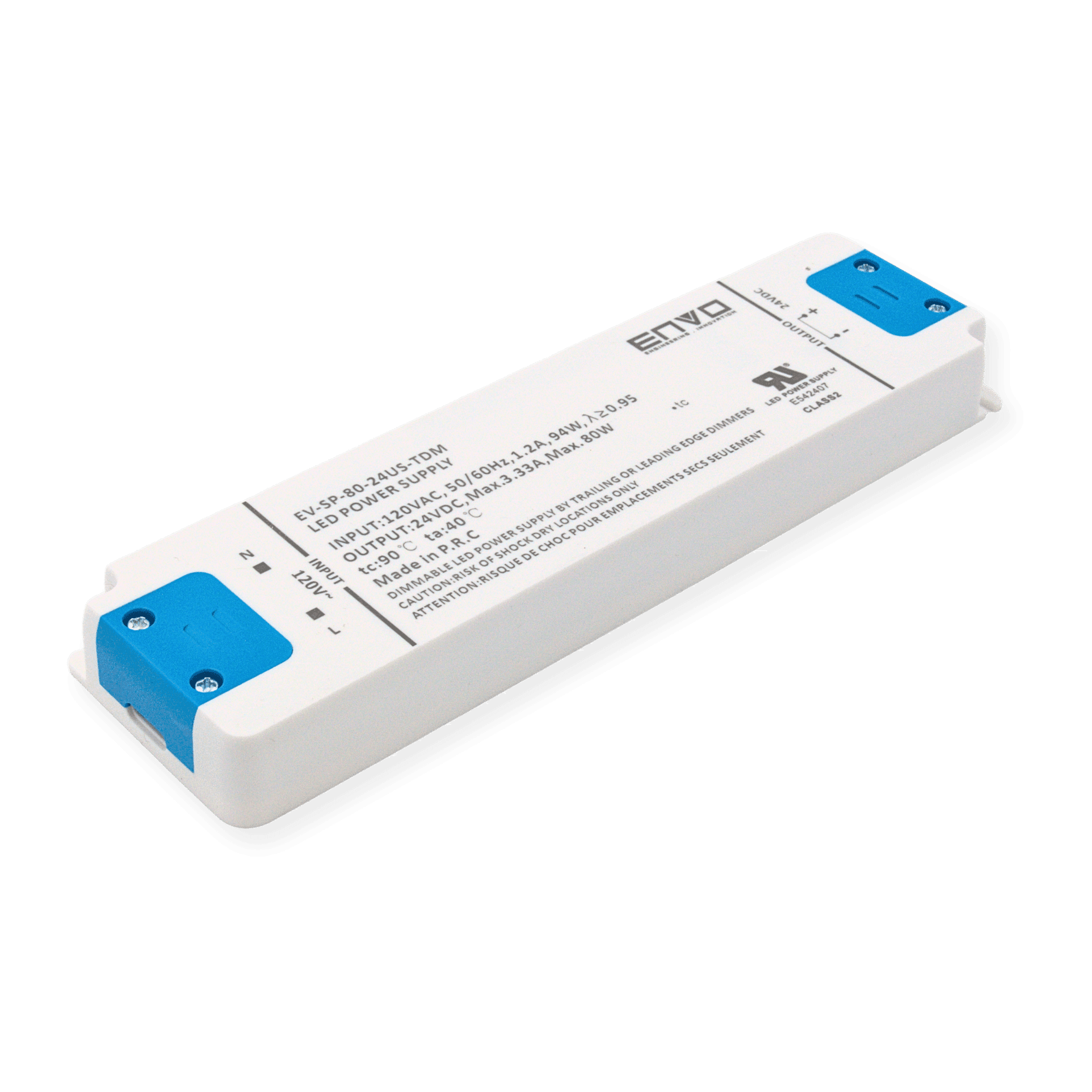

EV-SP-80-24US-TDM
Drivers · SP

Triac Dimmable LED Driver 80W 24V 3.33A

EV-SP-80-24US-TDM

Power80 W
Output voltage24 V DC
Input voltage100–120 V AC
Operation modeConstant voltage
DimmingTriac
IP ratingIP20
Rated current3.33 A
Dimensions217.25 × 21.2 × 60.35 mm(8.55 × 0.83 × 2.38 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-SP-80-24US-TDM.

The EV-SP-80-24US-TDM is a 80 W constant-voltage LED driver with a 24 V DC output.

With Triac phase dimming on board, it is built for indoor installations, dimmed retail and hospitality and signage modules and LED strip.

Backing that up: americanstandardinputvoltage（108-132Vac）, efficiency up to 84%, protections:Opencircuit/Shortcircuit/Overload and active PFC function. It also offers suitablefordryenvironment, plasticcase, loadrange10-100%,Dimmingrange0-100% and flicker-free.

Where it works

Dimmable power for warm controlled spaces.

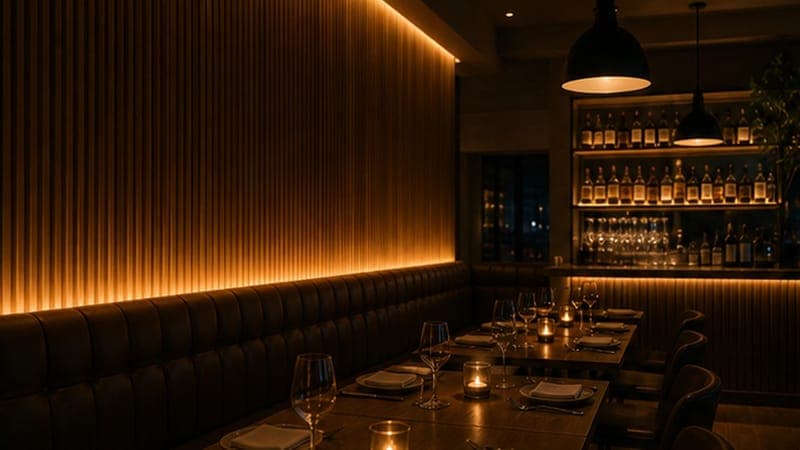

EV-SP-80-24US-TDM application - Hotel lounge cove dimming

Hotel lounge cove dimming

warm phase-cut strip lighting over seating areas · 80 W · 24 V

EV-SP-80-24US-TDM application - Home kitchen LED strips

Home kitchen LED strips

smooth evening dimming under cabinets and shelves · 80 W · 24 V

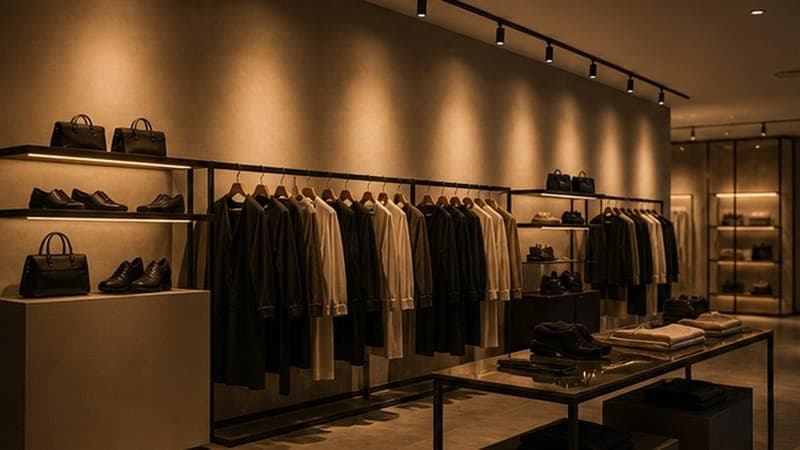

EV-SP-80-24US-TDM application - Retail wall wash

Retail wall wash

dimmable accent light on a merchandise wall · 80 W · 24 V

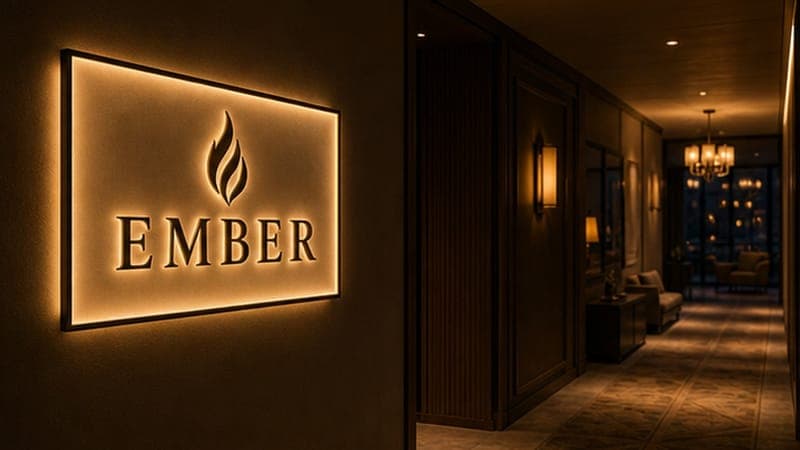

EV-SP-80-24US-TDM application - Warm feature sign

Warm feature sign

EMBER backlit sign dimmed for low-glare ambience · 80 W · 24 V
