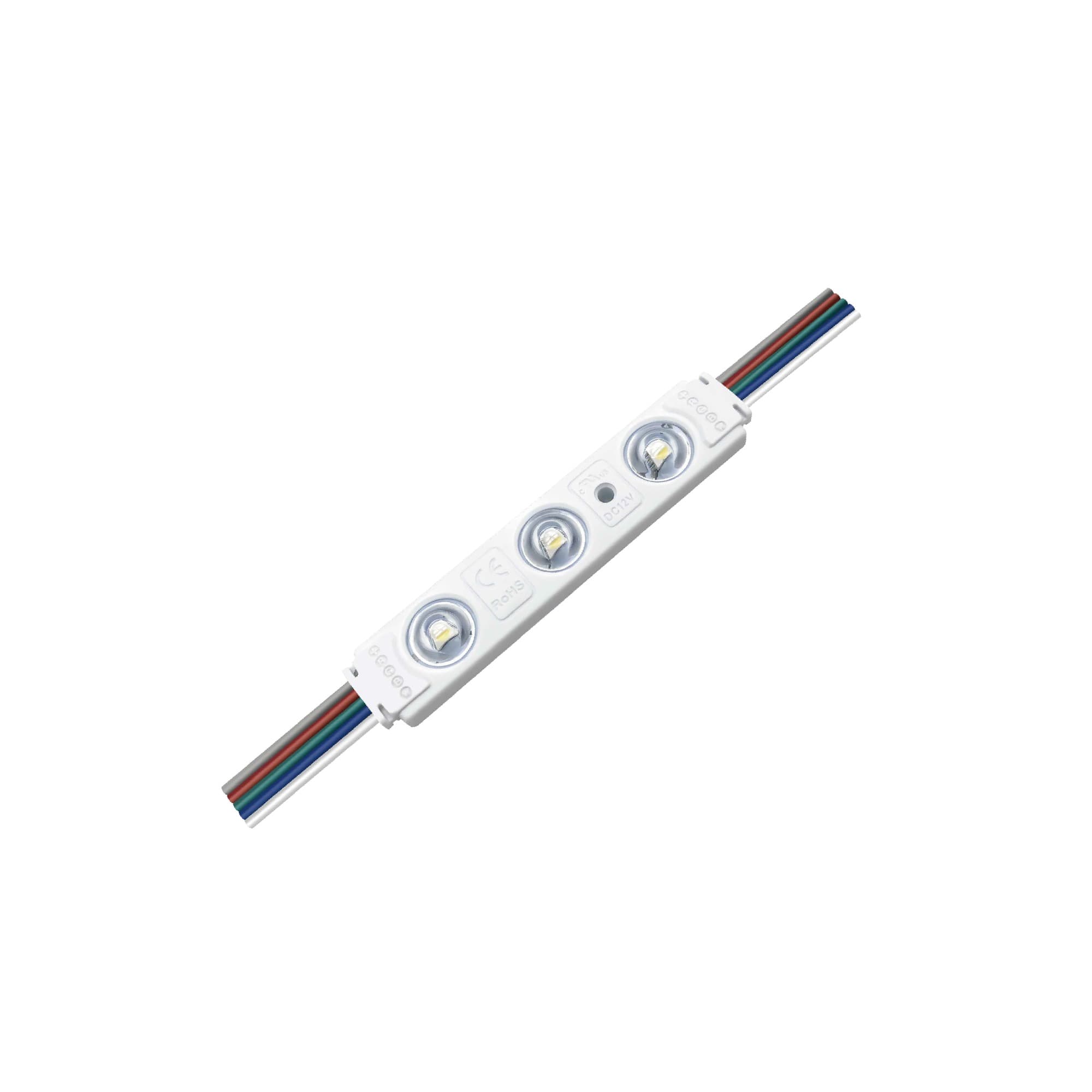

ENVO ChromaFlux LED Module Backlit - Triple LED — RGB

ENVO ChromaFlux LED Module Backlit - Triple LED — RGBW

ENVO ChromaFlux LED Module Backlit - Triple LED — All models

ENVO ChromaFlux LED Module Backlit - Triple LED — All models

ENVO ChromaFlux LED Module Backlit - Triple LED — EV-BLCF03LBY-RGB

ENVO ChromaFlux LED Module Backlit - Triple LED — EV-BLCF03LBY-RGBW

Modules · Light source

ChromaFlux Series

RGBW colour-changing modules for dynamic, programmable signage.

Power0.65–0.96 W

Input voltage12 V DC

Max series20

IP ratingIP65

DimensionsL87 × W17.5 × H8.4 mm(3.43 × 0.69 × 0.33 in)

Warranty5 years

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

	RGB	RGBW
Model code	EV-BLCF03LBY-RGB	EV-BLCF03LBY-RGBW
LED beads	3	3
Light output	~ 33 lm	~ 53 lm
Power	0.65 W	0.96 W
Dimensions	87 × 17.5 × 8.4 mm (3.43 × 0.69 × 0.33 in)	87 × 17.5 × 8.4 mm (3.43 × 0.69 × 0.33 in)
Beam angle	160°
Efficacy	~ 55.21 lm / W
Lifetime	50,000 h
Certifications	BISCBCERoHSTÜVUL

Where it works

Built for the job.

Dynamic brand signage

colour-changing RGBW

Feature & accent lighting

scene control

Entertainment & hospitality

full-colour effects

White + colour signs

one module does both
