EV-BLCF03LBY-RGBW
Modules · ChromaFlux

ChromaFlux LED Module Backlit - Triple LED

EV-BLCF03LBY-RGBW

Power0.96 W
Input voltage12 V DC
Max series20
IP ratingIP65
DimensionsL87 × W17.5 × H8.4 mm(3.43 × 0.69 × 0.33 in)
Warranty5 years
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors
Model code
EV-BLCF03LBY-RGB
LED beads
3
Light output
~ 33 lm
Power
0.65 W
Dimensions
87 × 17.5 × 8.4 mm(3.43 × 0.69 × 0.33 in)
Beam angle
160°
Efficacy
~ 51–55 lm / W
IP rating
IP65
Lifetime
50,000 h
Certifications
BISCBCERoHSTÜVUL
Warranty
5 years
ChromaFlux

All models in this series

2 models · 0.65–0.96 W

ModelPowerLED beadsLight outputDimensionsSpec sheet
ENVO ChromaFlux LED Module Backlit - Triple LEDEV-BLCF03LBY-RGBCurrent0.65 W3~ 33 lm87 × 17.5 × 8.4 mm(3.43 × 0.69 × 0.33 in)
ENVO ChromaFlux LED Module Backlit - Triple LEDEV-BLCF03LBY-RGBWCurrent0.96 W3~ 53 lm87 × 17.5 × 8.4 mm(3.43 × 0.69 × 0.33 in)
Where it works

Colour control for real brand moments.

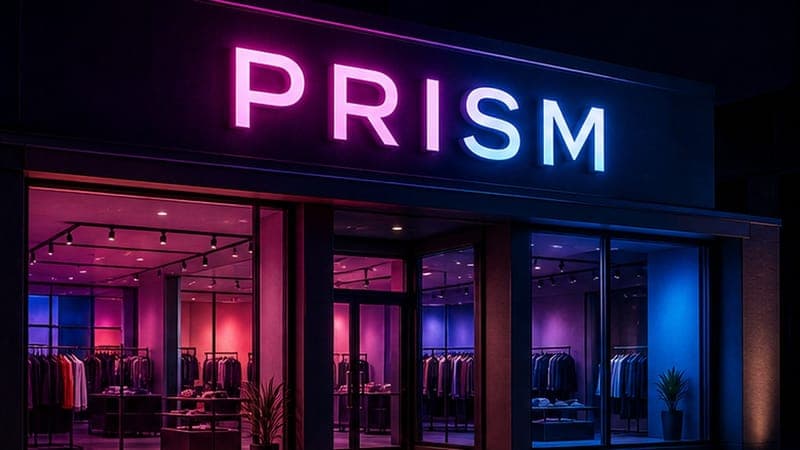

EV-BLCF03LBY-RGBW application - Retail colour-change channel sign

Retail colour-change channel sign

PRISM storefront letters shifting brand colours · RGBW module

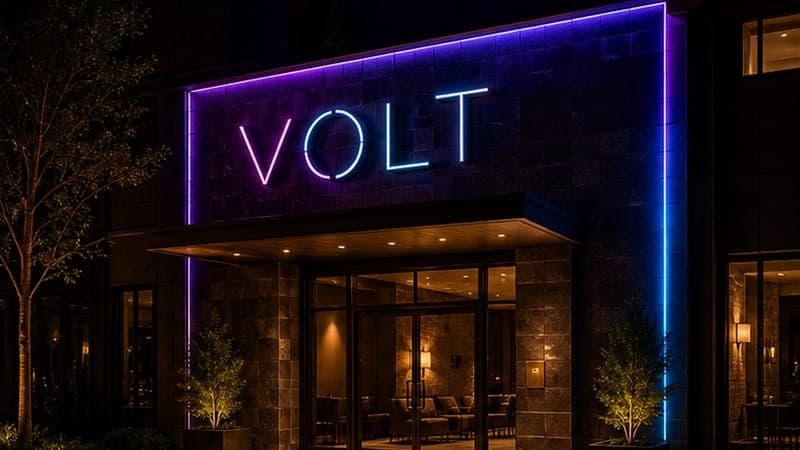

EV-BLCF03LBY-RGBW application - Feature wall RGB accent

Feature wall RGB accent

VOLT interior wall sign with saturated colour wash · RGBW module

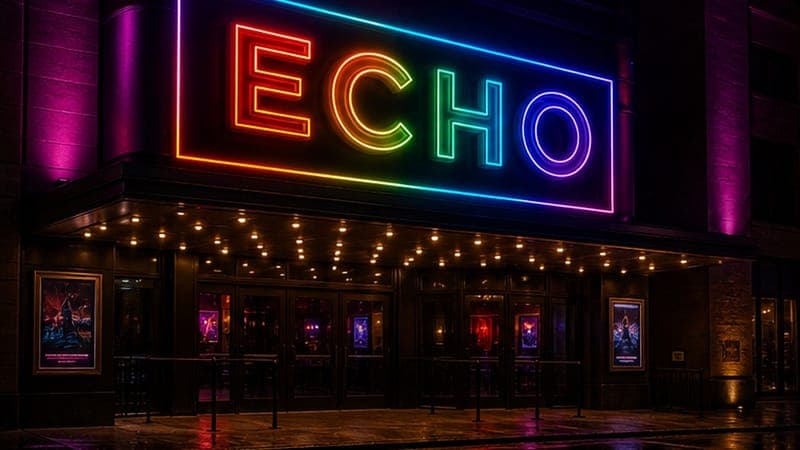

EV-BLCF03LBY-RGBW application - Hospitality colour scene

Hospitality colour scene

ECHO lounge signage set for evening atmosphere · RGBW module

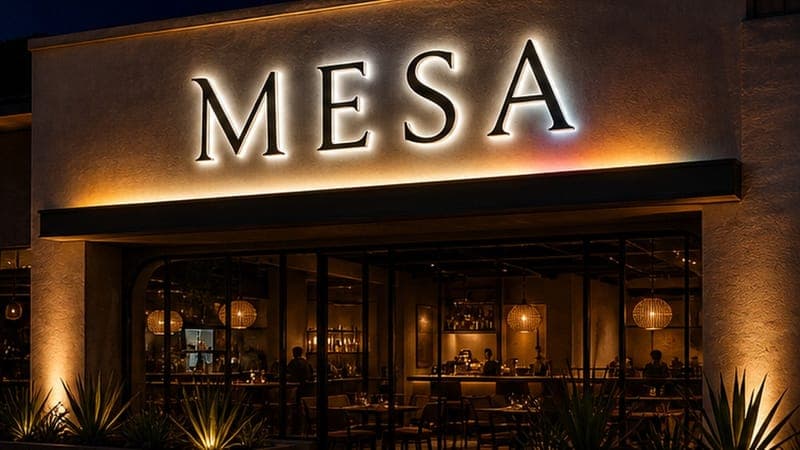

EV-BLCF03LBY-RGBW application - White plus colour restaurant sign

White plus colour restaurant sign

MESA sign switching between clean white and colour · RGBW module
