EV-SLEF01LBY
Modules · EdgeFlare

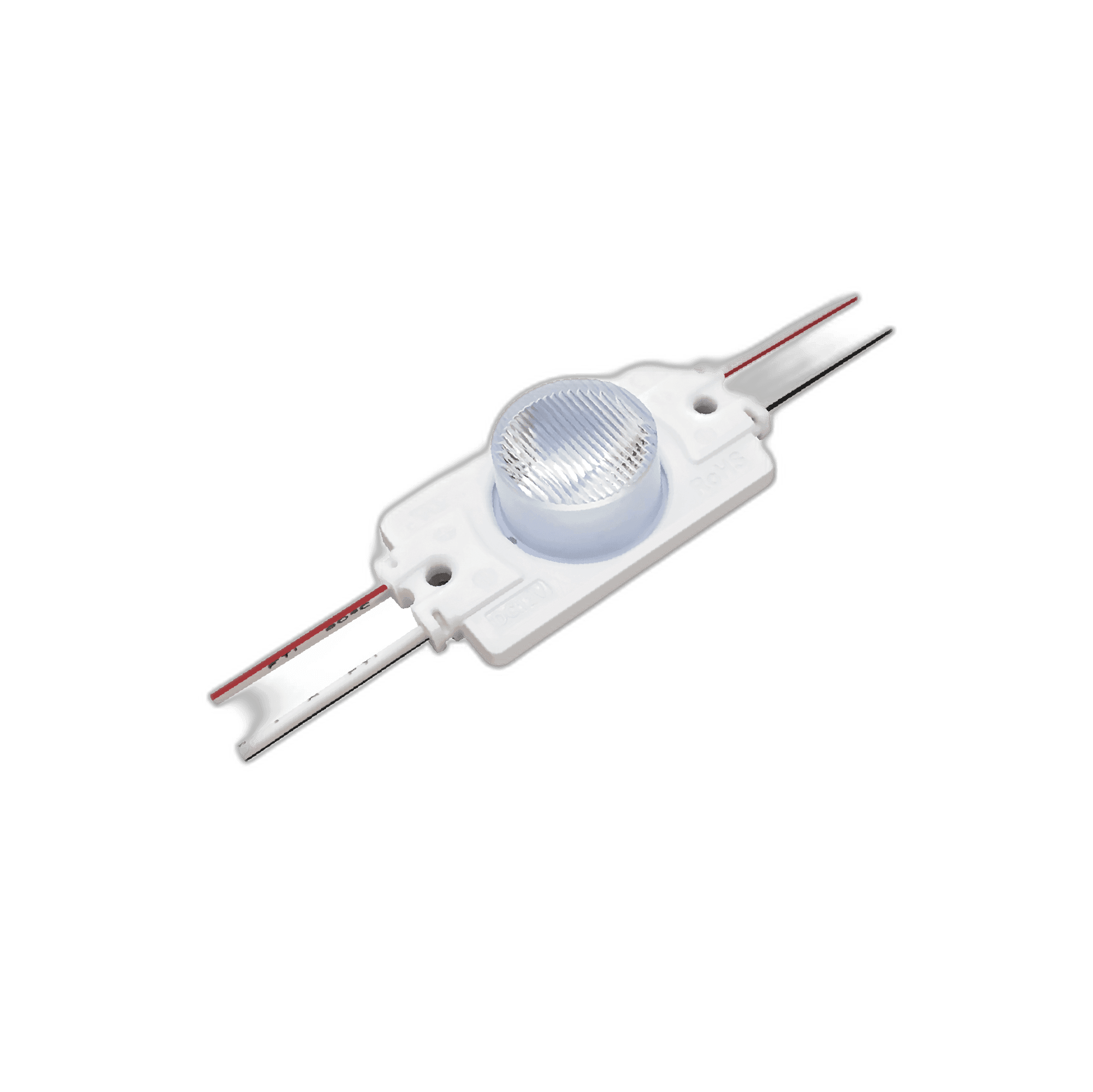

EdgeFlare LED Module Sidelit - Single LED

EV-SLEF01LBY

Power2.5 W
Input voltage12 V DC
Max series10
IP ratingIP67
DimensionsL45 × W32 × H14.8 mm(1.77 × 1.26 × 0.58 in)
Warranty7 years
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors
Model code
EV-SLEF01LBY
LED beads
1
Light output
~ 250 lm
Power
2.5 W
Dimensions
45 × 32 × 14.8 mm(1.77 × 1.26 × 0.58 in)
Colour temperature
3000 K · 4000 K · 7000 K
Beam angle
15° × 45°
Efficacy
~ 100 lm / W
IP rating
IP67
Lifetime
50,000 h
Warranty
7 years
Where it works

Bright acrylic signs with crisp edges.

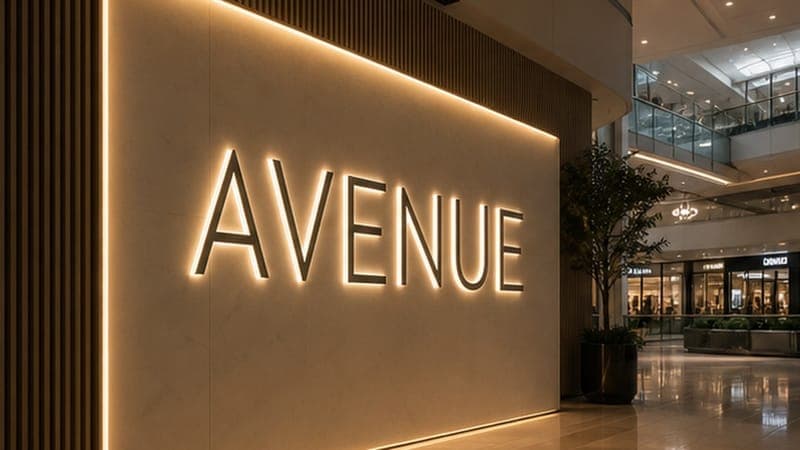

EV-SLEF01LBY-NW application - Wide edge-lit storefront sign

Wide edge-lit storefront sign

AVENUE acrylic sign with brighter edge throw · single natural white module

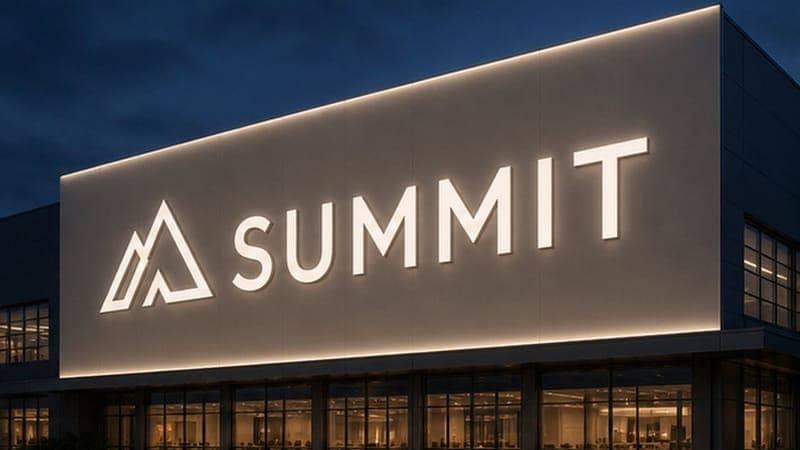

EV-SLEF01LBY-NW application - Large acrylic lobby panel

Large acrylic lobby panel

SUMMIT wide panel with even light across the face · single natural white module

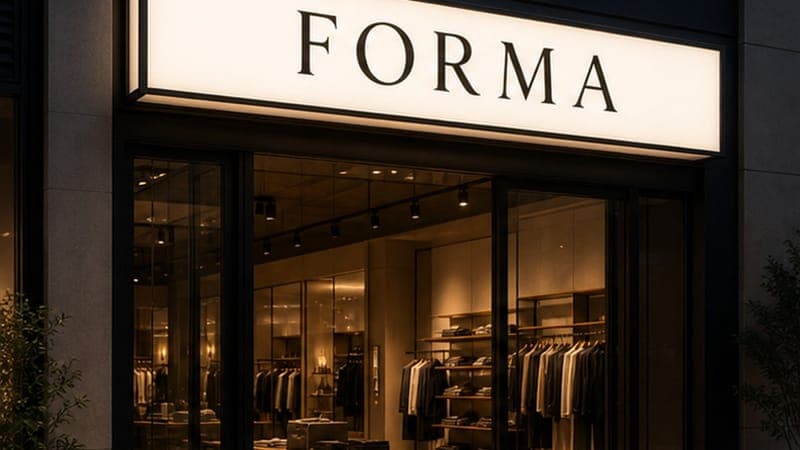

EV-SLEF01LBY-NW application - Premium slim lightbox

Premium slim lightbox

FORMA refined cabinet sign for a high-end interior · single natural white module

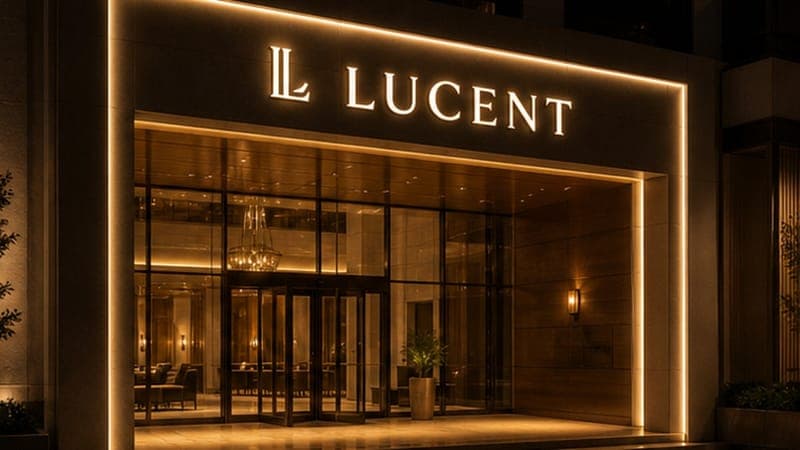

EV-SLEF01LBY-NW application - Architectural edge feature

Architectural edge feature

LUCENT glowing edge line used as a design element · single natural white module
