EV-SLEB01LBY
Modules · EdgeBlade

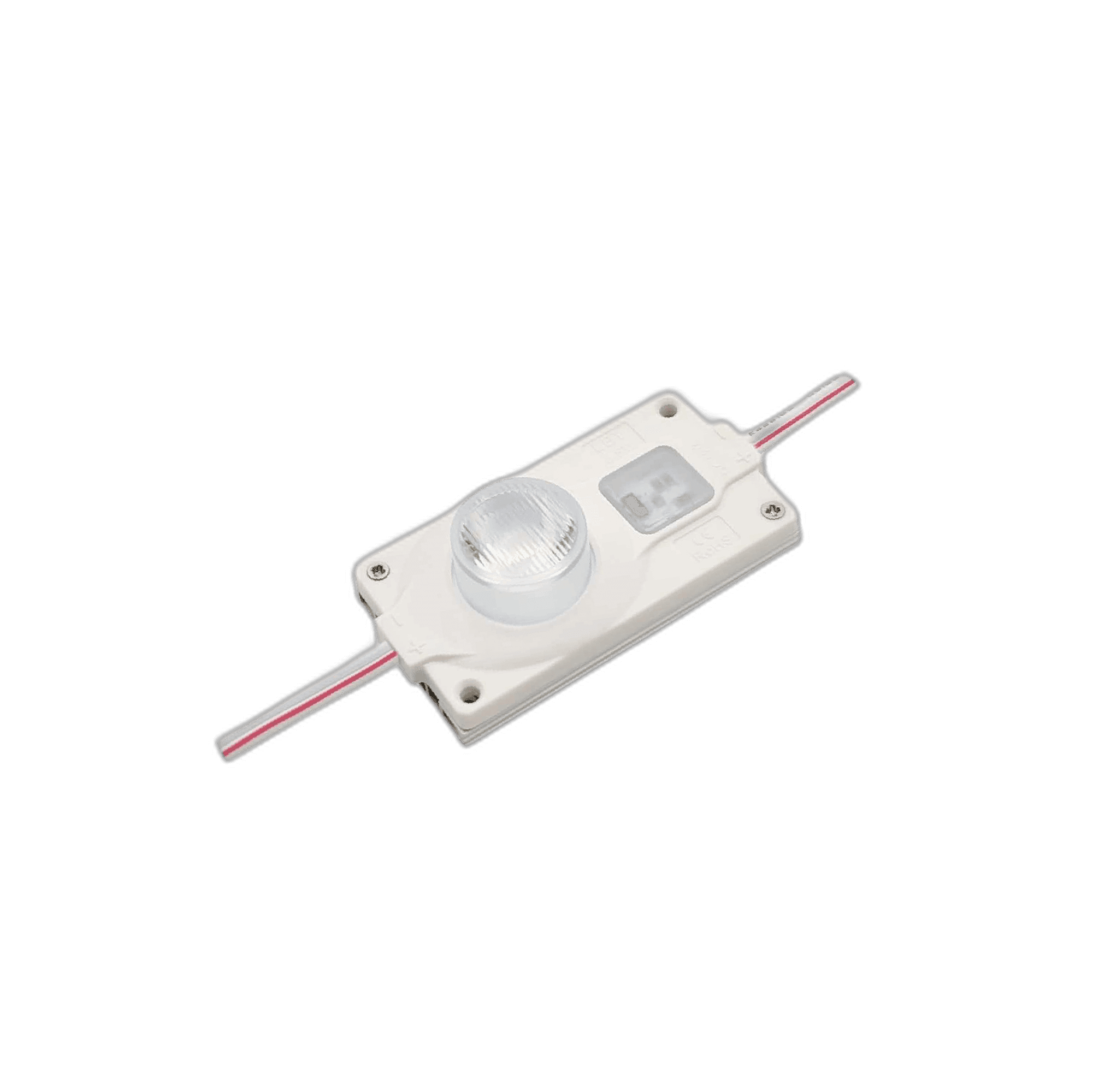

EdgeBlade LED Module Sidelit - Single LED

EV-SLEB01LBY

Power3.5 W
Input voltage12 V DC
Max series20
IP ratingIP67
DimensionsL66 × W33 × H18 mm(2.6 × 1.3 × 0.71 in)
Warranty7 years
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors
Model code
EV-SLEB01LBY
LED beads
1
Light output
~ 310 lm
Power
3.5 W
Dimensions
66 × 33 × 18 mm(2.6 × 1.3 × 0.71 in)
Colour temperature
3000 K · 4000 K · 7000 K
Beam angle
5° × 30°
Efficacy
~ 89 lm / W
IP rating
IP67
Lifetime
50,000 h
Warranty
7 years
Where it works

Slim edge-lit faces at larger scale.

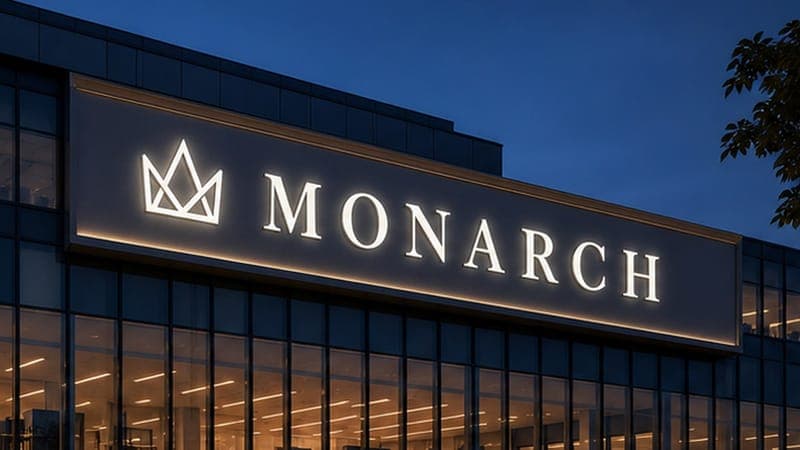

EV-SLEB01LBY-NW application - Large slim facade panel

Large slim facade panel

MONARCH edge-lit face where cabinet depth is limited · single natural white module

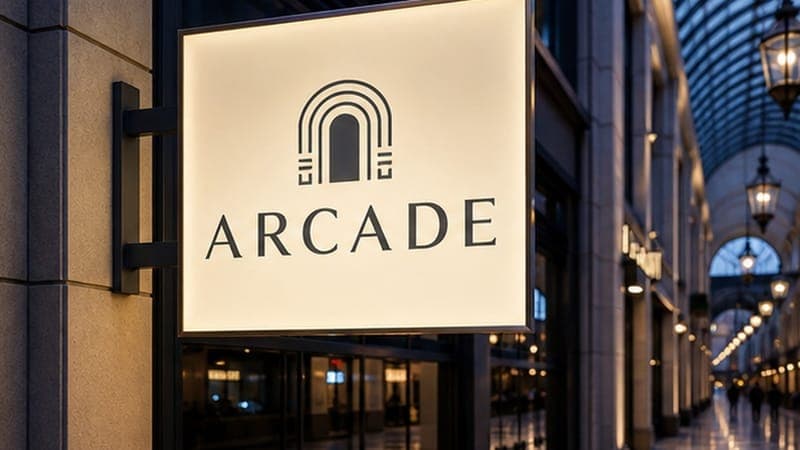

EV-SLEB01LBY-NW application - Premium edge-lit cabinet

Premium edge-lit cabinet

ARCADE acrylic cabinet with a clean perimeter glow · single natural white module

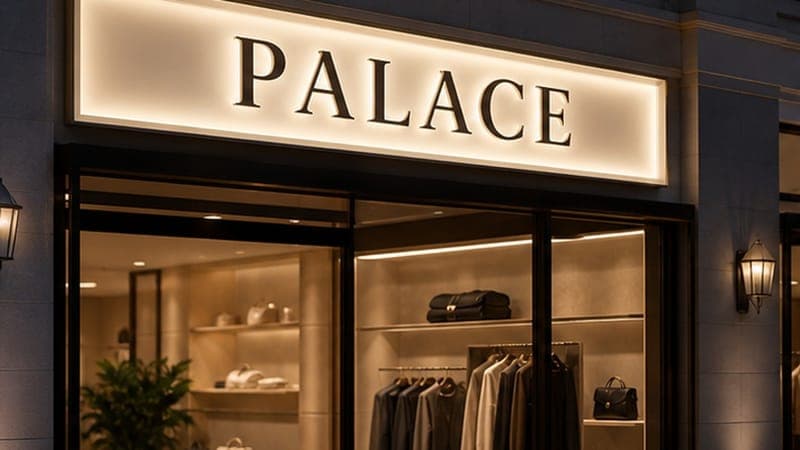

EV-SLEB01LBY-NW application - Shallow backlit-look sign

Shallow backlit-look sign

PALACE slim face giving a soft backlit impression · single natural white module

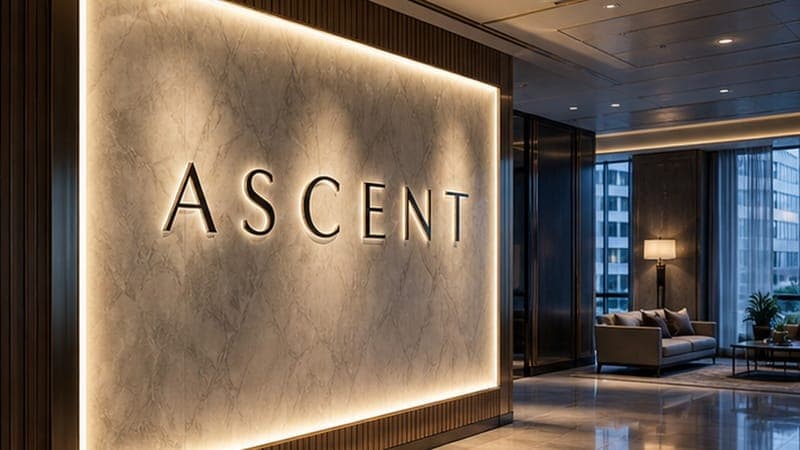

EV-SLEB01LBY-NW application - Architectural feature panel

Architectural feature panel

ASCENT edge-lit graphic panel built into the facade · single natural white module
