Modules · UltraFlare
UltraFlare LED Module Backlit - Triple LED
EV-BLUF03LBY
Power1.5 W
Input voltage12 V DC
Max series50
IP ratingIP67
DimensionsL77.8 × W15.4 × H10.4 mm(3.06 × 0.61 × 0.41 in)
Warranty8 years
Sold through authorised distributors
UltraFlare
All models in this series
4 models · 0.5–2 W
| Model | Power | LED beads | Light output | Dimensions | Spec sheet |
|---|---|---|---|---|---|
 EV-BLUF03LBYCurrent | 1.5 W | 3 | ~ 165 lm | 77.8 × 15.4 × 10.4 mm(3.06 × 0.61 × 0.41 in) | |
 EV-BLUF01LBY | 0.5 W | 1 | ~ 60 lm | 27.8 × 15.4 × 10.4 mm(1.09 × 0.61 × 0.41 in) | |
 EV-BLUF02LBY | 1 W | 2 | ~ 110 lm | 52.8 × 15.4 × 10.4 mm(2.08 × 0.61 × 0.41 in) | |
 EV-BLUF04LBY | 2 W | 4 | ~ 180 lm | 47.3 × 40.3 × 10.4 mm(1.86 × 1.59 × 0.41 in) |
Where it works
High-output signs in demanding places.

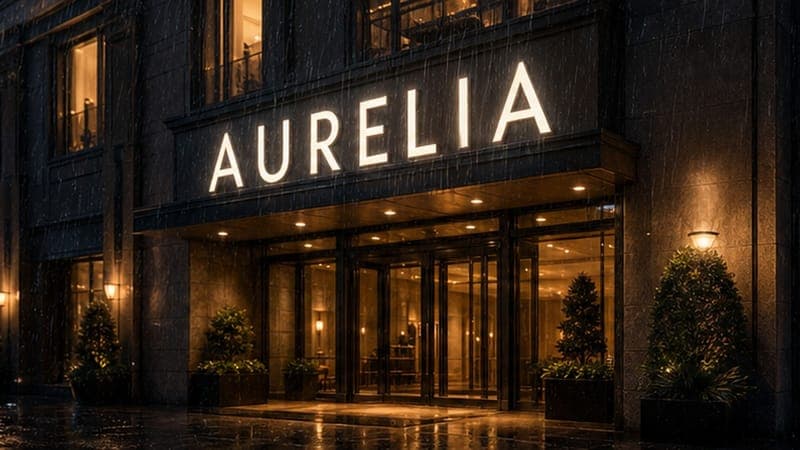

Exposed outdoor facade sign
AURELIA high-output letters visible from the street · triple natural white module

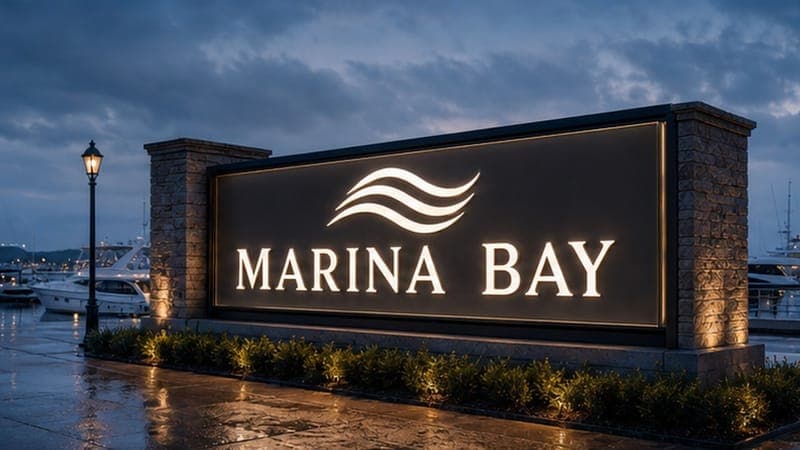

Coastal restaurant sign
MARINA BAY sign in a wet evening streetscape · triple natural white module

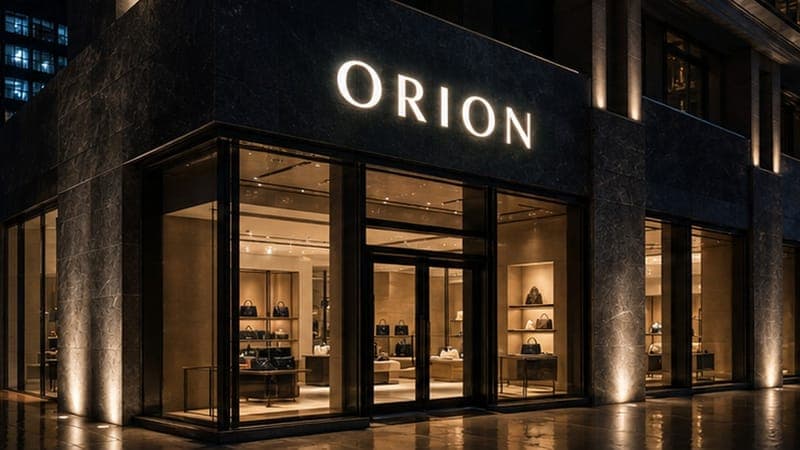

Flagship brand facade
ORION large brand letters where brightness matters · triple natural white module

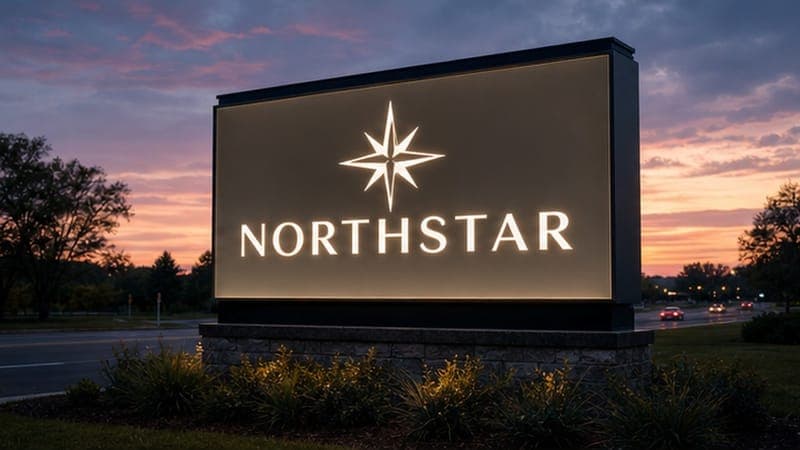

Large illuminated cabinet
NORTHSTAR broad cabinet face with deep illumination · triple natural white module
