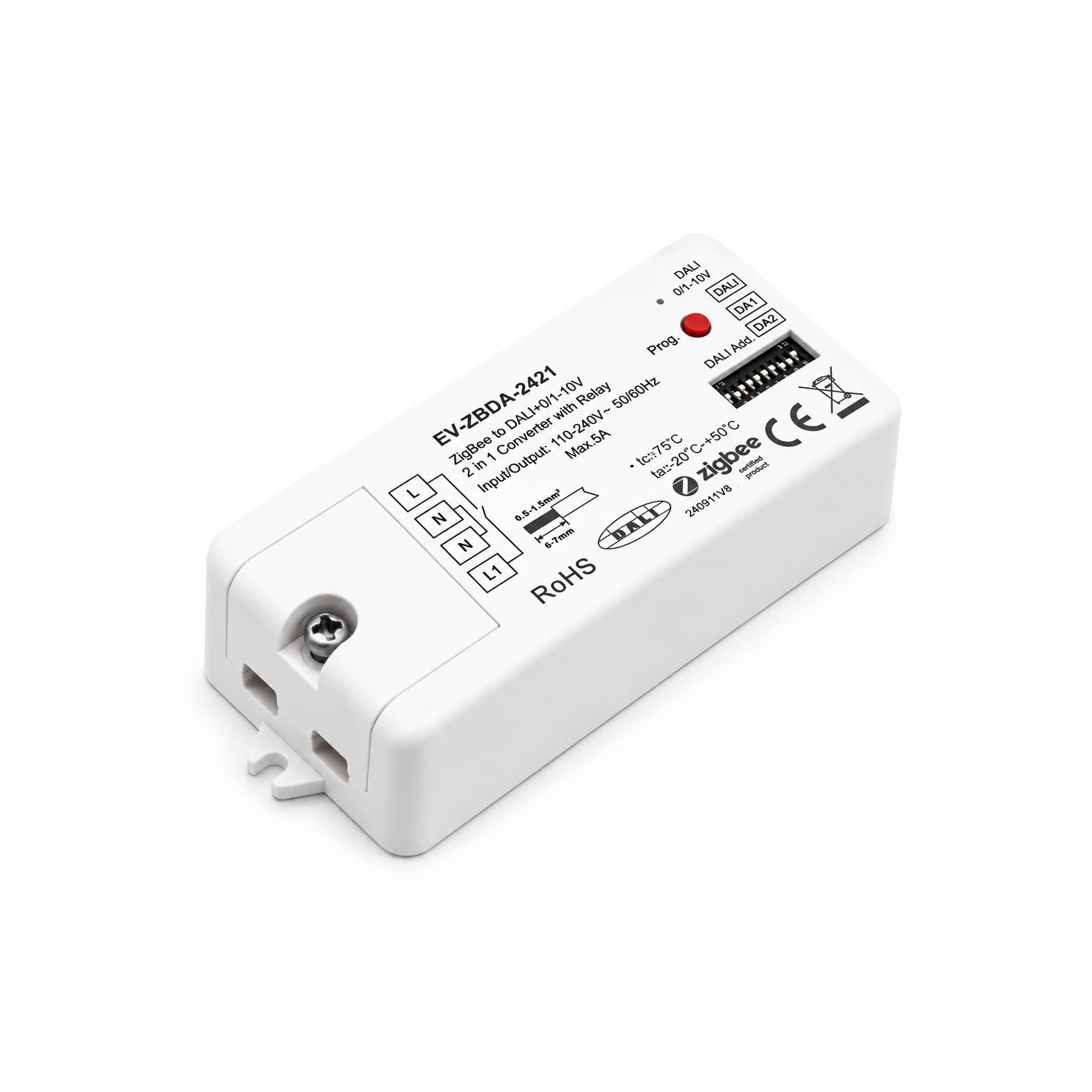

EV-ZBDA-2421
Use the EV-ZBDA-2421 to bring precise lighting control to your installation.
It is built for Zigbee lighting systems.
Backing that up: Zigbee to DALI+0/1-10V 2 in 1 converter based on zigbee 3.0, Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input, with relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load and compatible with universal Zigbee gateway or hub products. It also offers can directly pair to a compatible ZigBee remote via Touchlink, compatible with universal Zigbee remotes, supports self-forming zigbee network without coordinator and supports find and bind mode to bind a ZigBee remote.
Installation notes: do not install with power applied to device; do not expose the device to moisture.

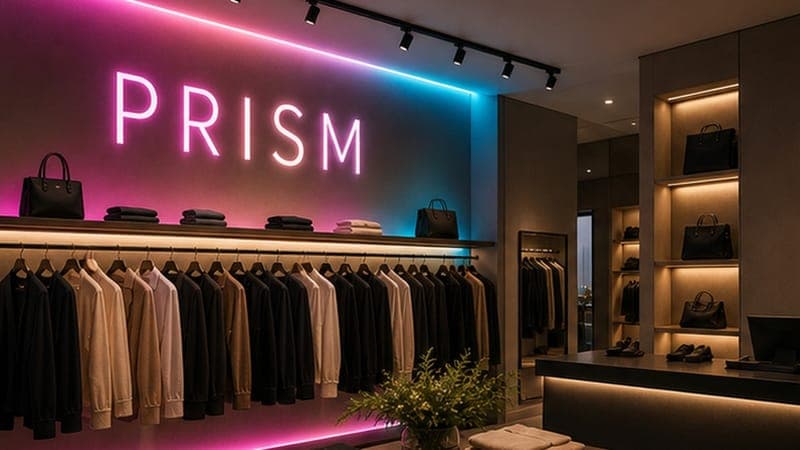

PRISM shop lighting grouped into controllable colour areas

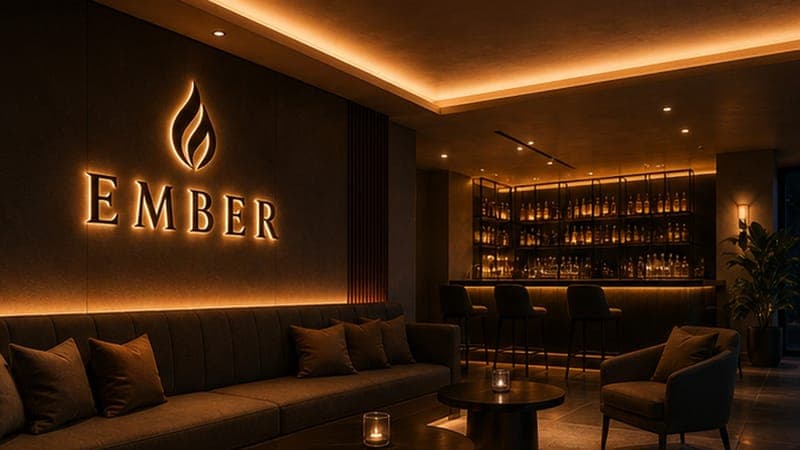

EMBER bar and signage lighting softened by scene control

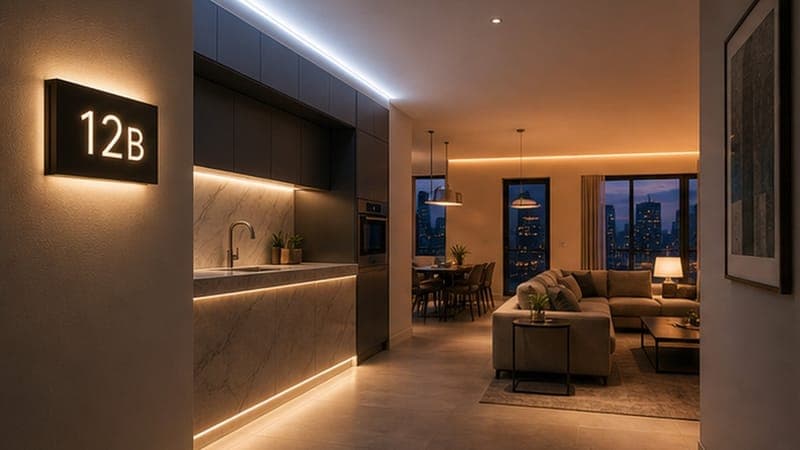

12B home lighting shifting from task white to warm evening

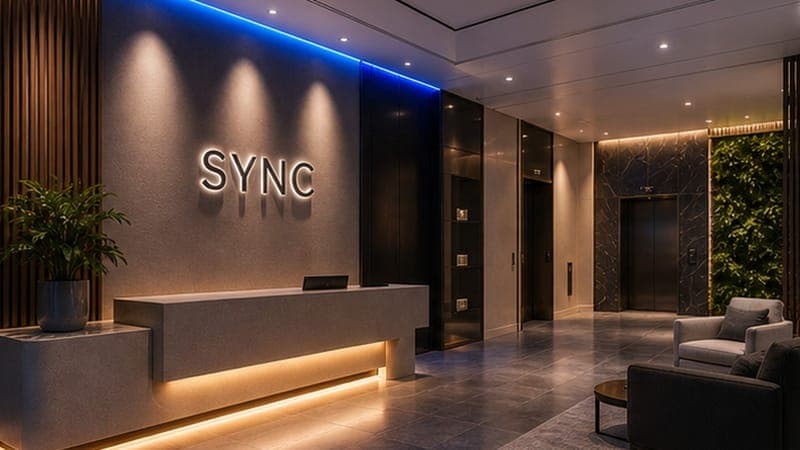

SYNC feature wall and ceiling lines changing together
