EV-ZB9101SAC-HPS2CH
Control · Zigbee Smart

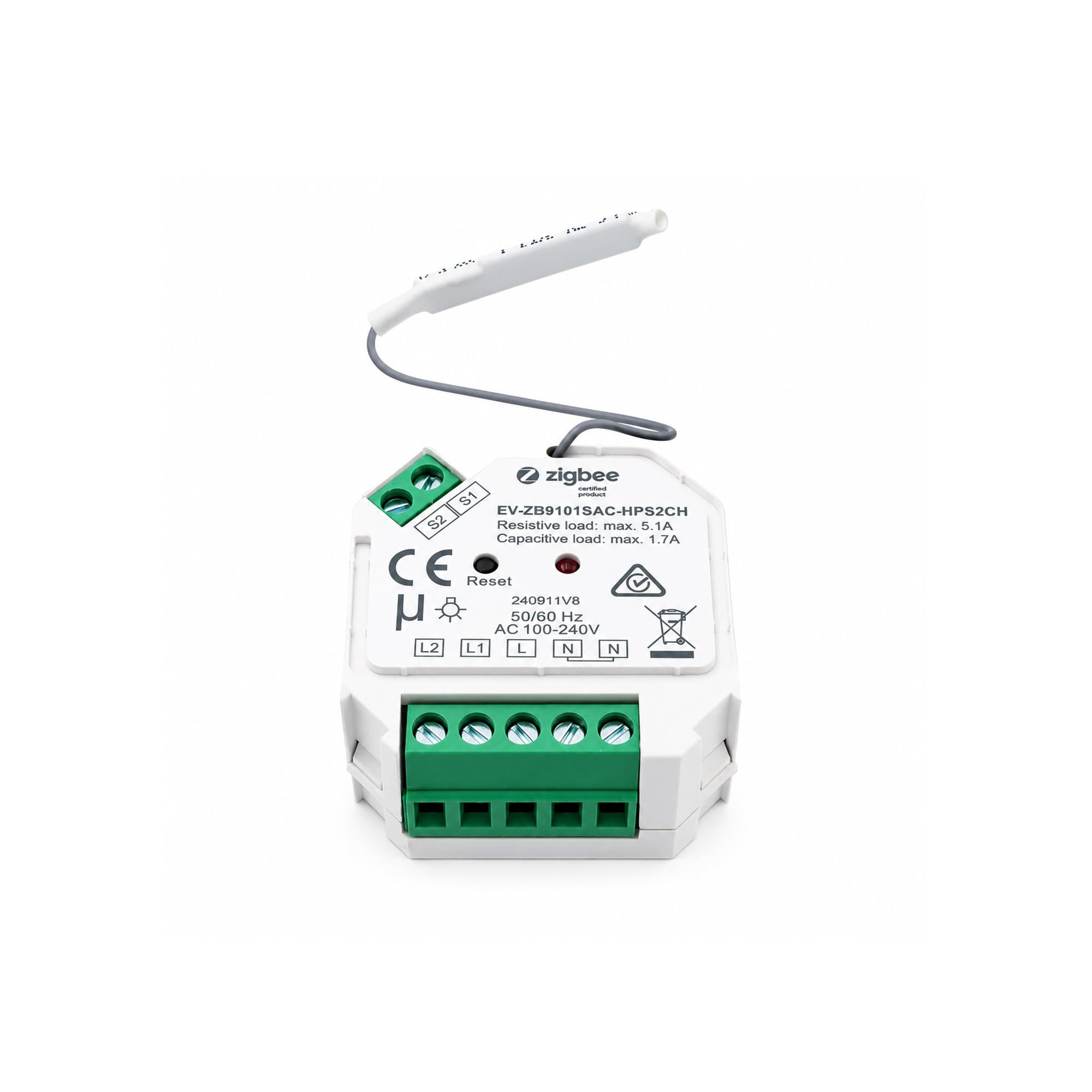

ZigBee 2Gang In-wall Switch - On/Off Control

EV-ZB9101SAC-HPS2CH

Input voltage100–240 V AC
Power390 W
Dimensions45.5 × 45 × 20.3 mm(1.79 × 1.77 × 0.8 in)
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors

About the EV-ZB9101SAC-HPS2CH.

Use the EV-ZB9101SAC-HPS2CH to bring wall-point lighting control to your installation.

It is built for wall-point scene switching and Zigbee lighting systems.

Backing that up: 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol, 100-240VAC wide input and output voltage, supports resistive loads and capacitive loads and 2 channels output, max. load 5.1A/CH. It also offers input and output with screw terminals, safe and reliable, enables to control ON/OFF of connected load, ZigBee device with 2 endpoints which can be controlled separately and ZigBee end device that supports Touchlink commissioning.

Installation notes: do not install with power applied to device; do not expose the device to moisture.

Where it works

Wireless control for lived-in lighting scenes.

EV-ZB9101SAC-HPS2CH application - Retail RGB colour zones

Retail RGB colour zones

PRISM shop lighting grouped into controllable colour areas · wall dimmer control

EV-ZB9101SAC-HPS2CH application - Restaurant evening dimming

Restaurant evening dimming

EMBER bar and signage lighting softened by scene control · wall dimmer control

EV-ZB9101SAC-HPS2CH application - Tunable white living space

Tunable white living space

12B home lighting shifting from task white to warm evening · wall dimmer control

EV-ZB9101SAC-HPS2CH application - Synchronized multi-zone lighting

Synchronized multi-zone lighting

SYNC feature wall and ceiling lines changing together · wall dimmer control
