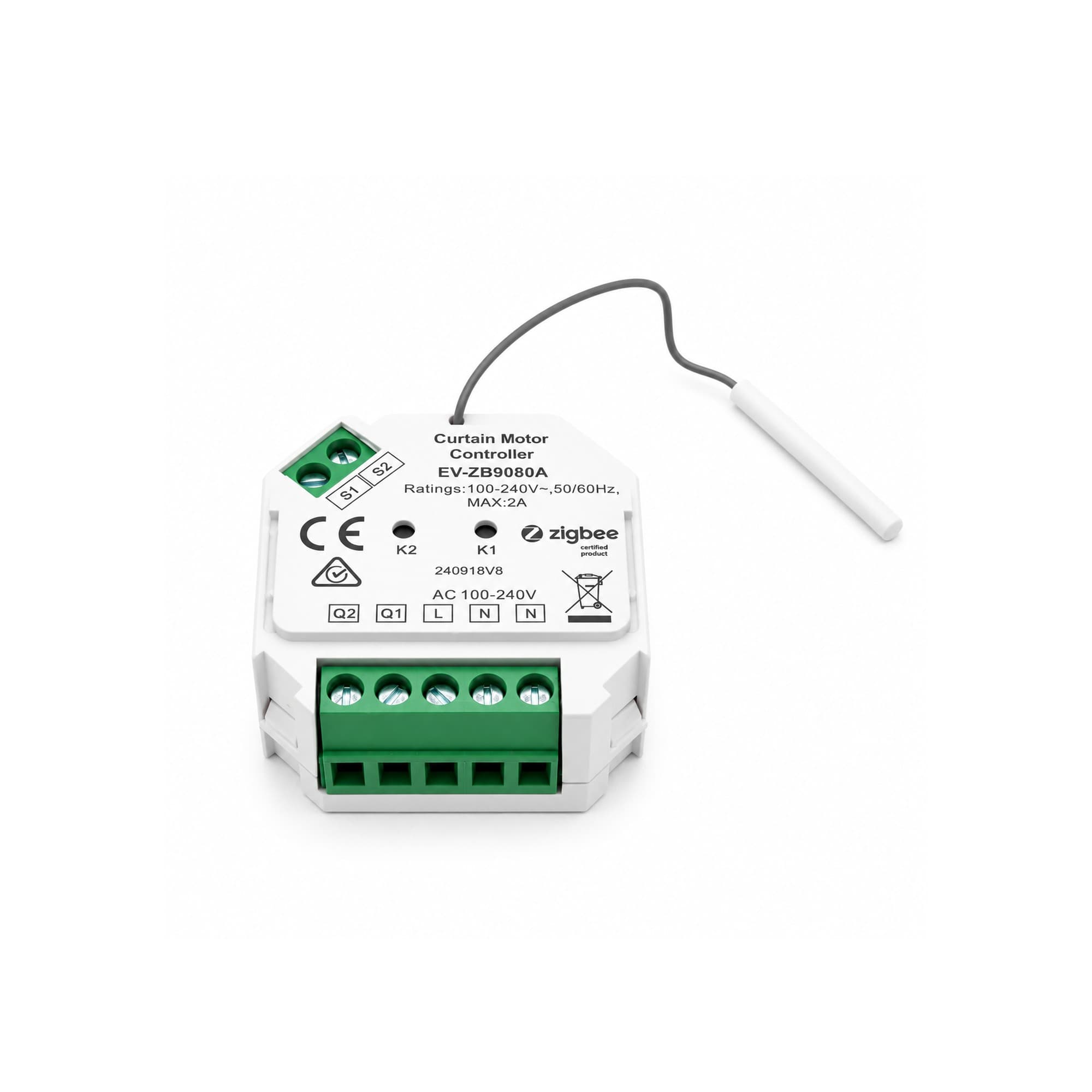

ZigBee Blinds Controller - On/Off and Level Control

EV-ZB9080A

Input voltage100–240 V AC

IP ratingIP20

Dimensions45.5 × 45 × 20.3 mm(1.79 × 1.77 × 0.8 in)

Find local distributor→↓ Datasheet (PDF)

Sold through authorised distributors

About the EV-ZB9080A.

Use the EV-ZB9080A to bring precise lighting control to your installation.

It is built for Zigbee lighting systems.

Backing that up: Zigbee curtain motor controller based on latest ZigBee 3.0 protocol, controlled by smart app or directly by zigbee remote, local control with external switches even if not added to a zigbee network and accurate control, supports both ON/OFF and level control. It also offers ZigBee end device that supports Touchlink commissioning, supports self-forming zigbee network without coordinator and supports find and bind mode to bind a ZigBee remote.

Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.

Installation notes: do not install with power applied to device; do not expose the device to moisture.

Where it works

Wireless control for lived-in lighting scenes.

Retail RGB colour zones

PRISM shop lighting grouped into controllable colour areas · controller output zones

Restaurant evening dimming

EMBER bar and signage lighting softened by scene control · controller output zones

Tunable white living space

12B home lighting shifting from task white to warm evening · controller output zones

Synchronized multi-zone lighting

SYNC feature wall and ceiling lines changing together · controller output zones
