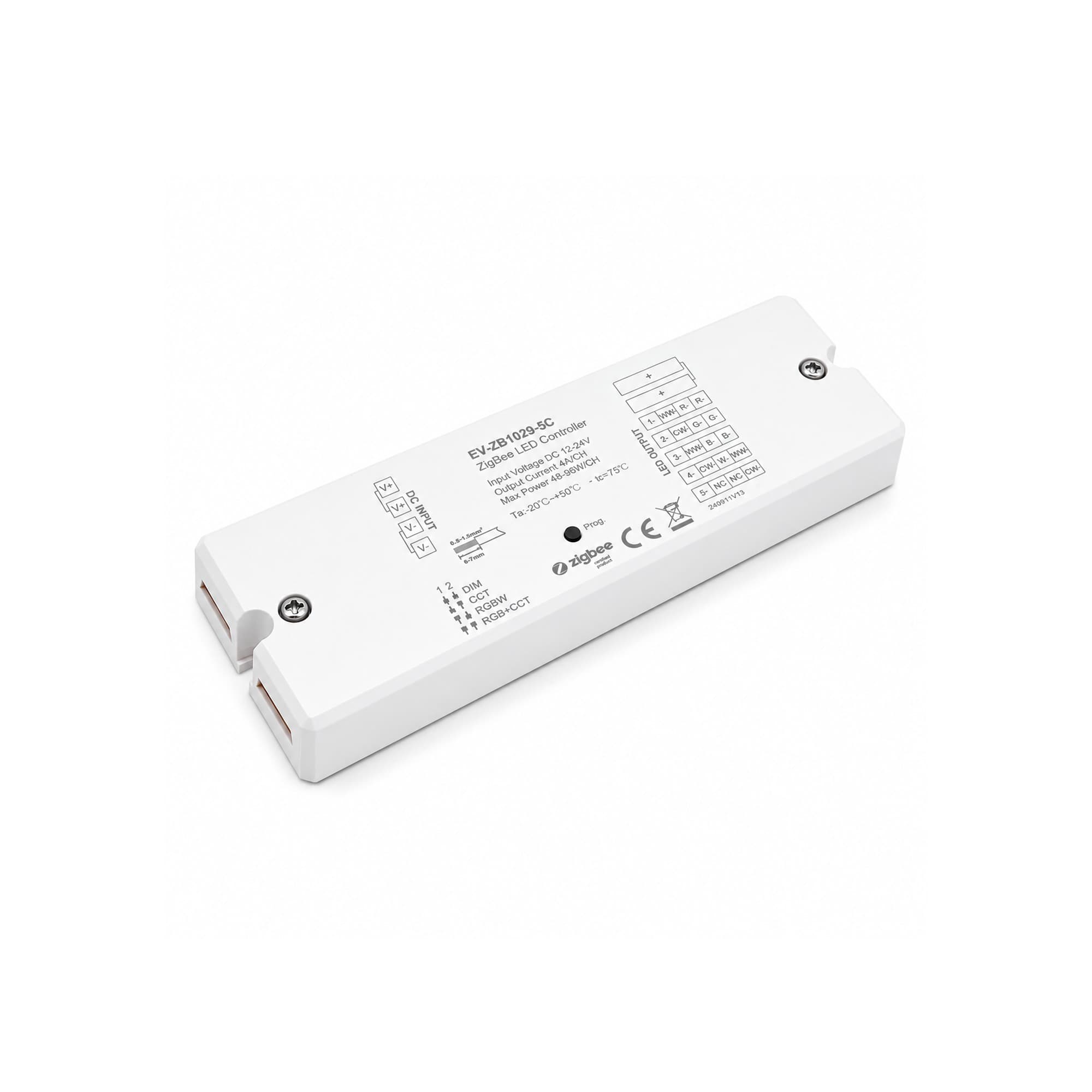

EV-ZB1029-5C
Control · Zigbee Smart

Zigbee Super Thin 5 Channel Controller 12-24V 4A per Channel

EV-ZB1029-5C

Input voltage12–24 V DC
ProtocolZigbee
Power240 W
Dimensions145 × 46.5 × 16 mm(5.71 × 1.83 × 0.63 in)
Warranty5 years
Find local distributor→↓ Datasheet (PDF)
Sold through authorised distributors
Model code
EV-ZB1029-5C
Power
240 W
Dimensions
145 × 46.5 × 16 mm(5.71 × 1.83 × 0.63 in)
Input voltage
12–24 V DC
Certifications
CEFCCRoHS
Warranty
5 years
Where it works

Wireless control for lived-in lighting scenes.

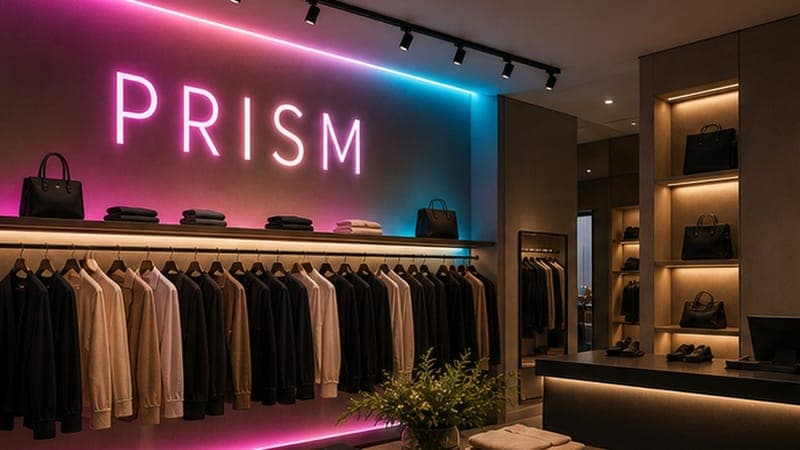

EV-ZB1029-5C application - Retail RGB colour zones

Retail RGB colour zones

PRISM shop lighting grouped into controllable colour areas · controller output zones

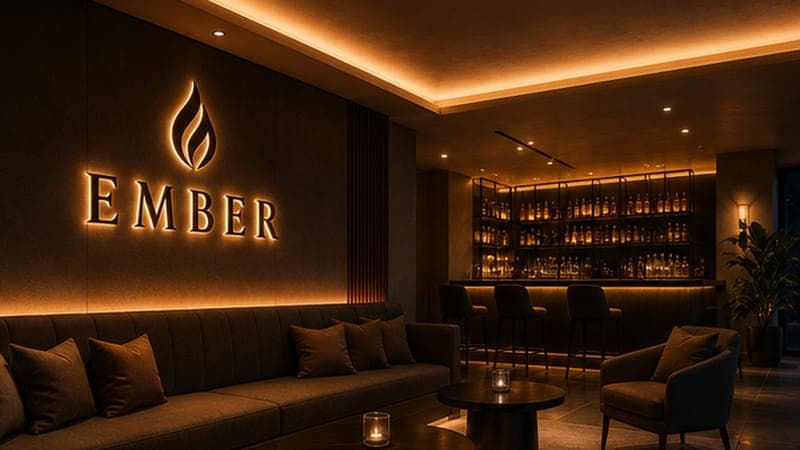

EV-ZB1029-5C application - Restaurant evening dimming

Restaurant evening dimming

EMBER bar and signage lighting softened by scene control · controller output zones

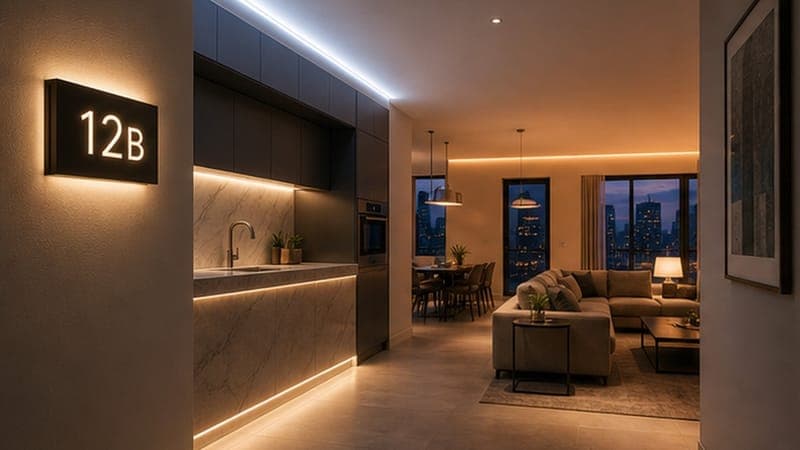

EV-ZB1029-5C application - Tunable white living space

Tunable white living space

12B home lighting shifting from task white to warm evening · controller output zones

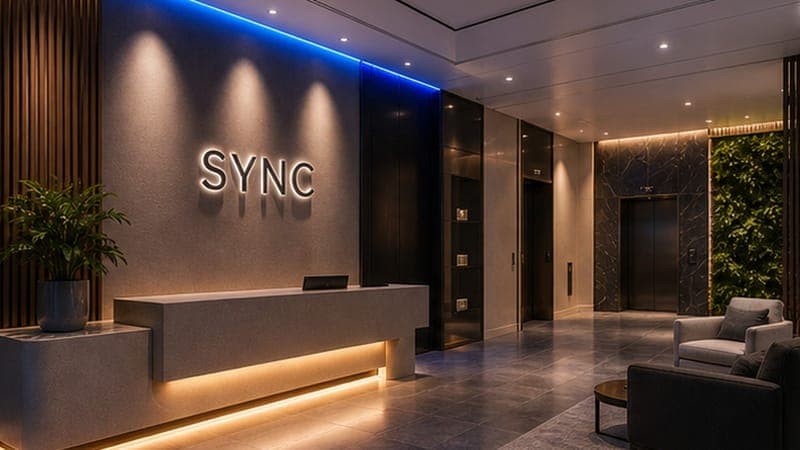

EV-ZB1029-5C application - Synchronized multi-zone lighting

Synchronized multi-zone lighting

SYNC feature wall and ceiling lines changing together · controller output zones
